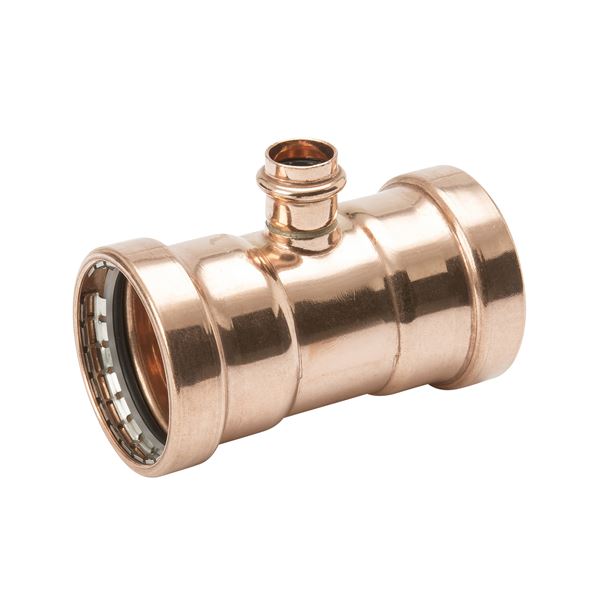

Mueller Streamline PF40192 PRS Tee 4 x 4 x 3/4 Inch

Product Description

The Mueller Streamline PF40192 PRS Tee is a copper press fitting designed for plumbing and piping systems. This tee features a PxPxP configuration with end sizes of 4 inches, 4 inches, and 3/4 inches, facilitating efficient flow division. Constructed from durable copper, it operates within a temperature range of -20 °F to 250 °F and handles pressures up to 300 psi, ensuring reliable performance in various applications.

• Made of COPPER
• Press End Type
• Meets ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13 standards

Product Highlights

Durable copper press tee for plumbing and HVAC systems, offering reliable connections and flow distribution.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40192

Technical Specifications

• Weight: 3.47 lb
• Material: Copper
• Operating Temperature Range: -20 °F to 250 °F
• Maximum Operating Pressure: 300 psi
• End Connection Type: Press
• First End Size: 4 in
• Second End Size: 4 in
• Third End Size: 3/4 in
• Certifications and Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 6.38 in
• Overall Height: 5.63 in
• Overall Width: 4.68 in
• Dimension X: 1.02 in
• Dimension X1: 1.02 in
• Dimension Y: 2.39 in
