Mueller Streamline PF11507 PRS dielectric union 1 1/2 inch x 1 1/2 inch

Product Description

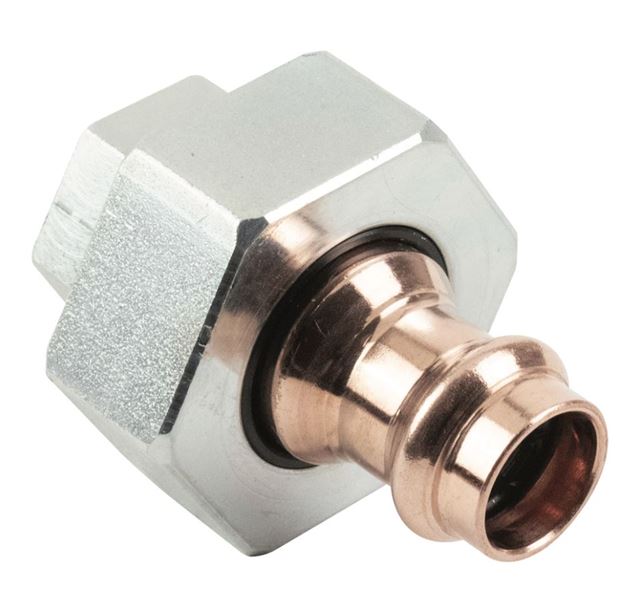

The MUELLER STREAMLINE PF11507 PRS Dielectric Union is a copper press fitting designed for dielectric applications, featuring a P x FPT connection type with 1 1/2 inch x 1 1/2 inch dimensions. Constructed from copper and steel, it operates effectively in temperatures ranging from -24 °F to 250 °F and withstands a maximum operating pressure of 300 psi. This union meets ASME B16.51, NSF/ANSI 61, NSF/ANSI 372, and CSA standards.

• PRS Copper Press Technology for secure connections.
• Dielectric Union design prevents galvanic corrosion.
• P x FPT connection type for versatile installation.

Product Highlights

This union provides electrical isolation between dissimilar metals, ensuring system integrity and longevity in plumbing applications.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF11507

Technical Specifications

• Material: Copper/Steel
• Minimum Operating Temperature: -24 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Type: Press
• End Size: 1 1/2 in
• Second End Size: 1 1/2 in
• Second End Type: FPT
• Standards: ASME B16.51, NSF/ANSI 61, NSF/ANSI 372, CSA
