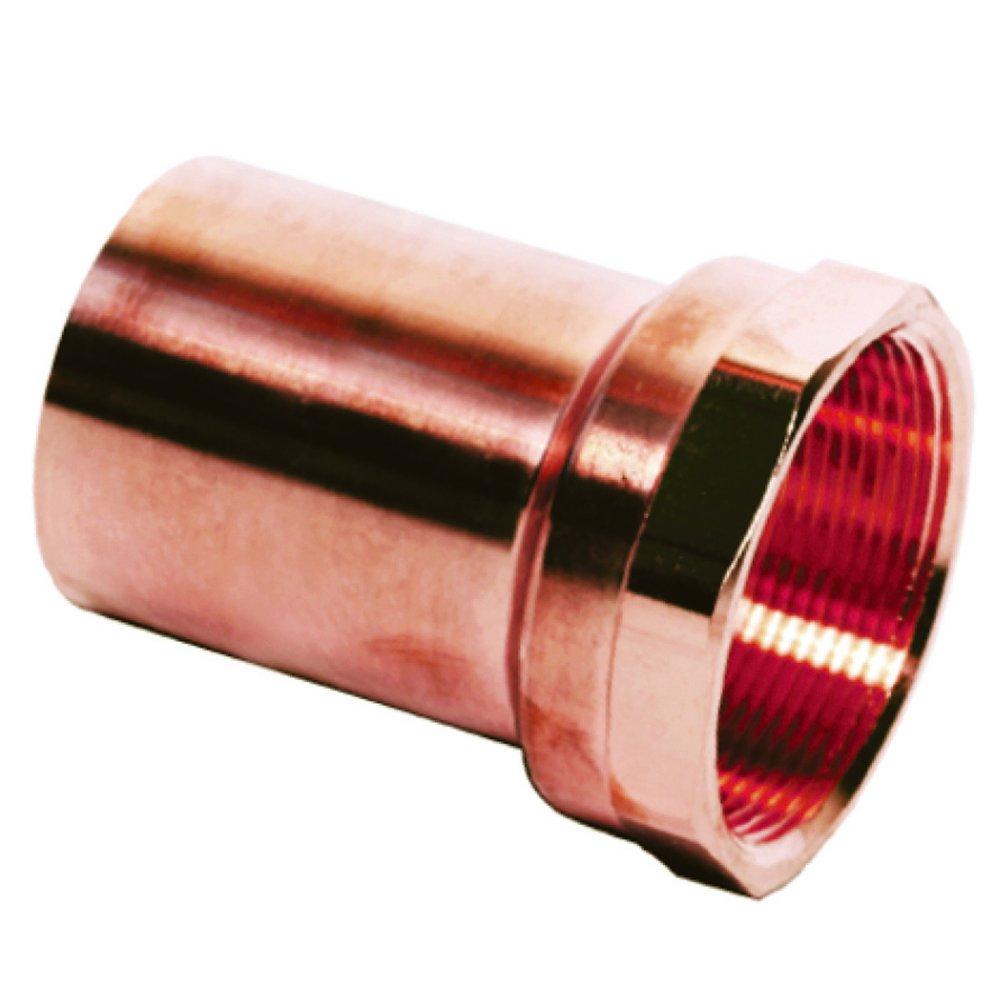

Mueller Streamline PF01547 PRS female fitting adapter 3/4 x 1/2

Product Description

The MUELLER STREAMLINE PF01547 is a PRS Female Fitting Adapter, a copper component designed for plumbing and mechanical systems. It features FTG x FPT connections, accommodating 3/4'' x 1/2'' pipe sizes. Constructed from lead-free material, this adapter meets industry standards including ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13. It is rated for operating temperatures from -20 °F to 250 °F and a maximum pressure of 300 psi, ensuring reliable performance.

• Copper construction with lead-free material ensures safe and compliant use.
• Features FTGxFPT connection type, designed for 3/4'' x 1/2'' pipe sizes.
• Meets multiple industry standards including ASME B16.51, NSF/ANSI 61, and CSA TIL-MSE-13.

Product Highlights

This PRS Female Fitting Adapter provides secure, lead-free connections for plumbing applications, adhering to strict industry standards for performance and safety.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01547

Technical Specifications

• Material: Lead-Free Wrot Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Connection 1 Type: Fitting (FTG)
• End Connection 1 Size: 3/4 in
• End Connection 2 Type: FNPT
• End Connection 2 Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Fitting Type: Female Adapter
• Lead Law Compliance: Lead Law Compliant and Certified
• IAPMO Listed: Yes
• NSF Certified: Yes
• FM Approved: No
• UL Listed: No
