Mueller Streamline ELL00094 Copper 90 Degree Elbow 5/8 Cxc

Product Description

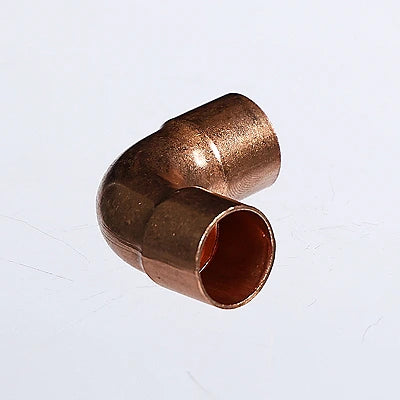

The MUELLER STREAMLINE ELL00094 is a wrot copper 90-degree short radius elbow fitting designed for sweat-soldered copper tube connections. It joins two 5/8-inch copper lines at a right angle, redirecting flow in tight spaces within plumbing, HVAC, and refrigeration piping systems. The short radius design keeps the fitting compact at 1.75 inches in height and 1.75 inches in length, making it well suited for installations where clearance is limited. At 0.08 pounds, it is lightweight and easy to handle. Licensed plumbers and HVAC technicians use this fitting during new construction, retrofit, and service work on copper piping systems.

This elbow is used in residential and light commercial applications where copper tube must change direction by 90 degrees. Typical installation scenarios include domestic water supply lines, hydronic heating loops, refrigerant piping, and condensate drain systems. The CxC connection type means both ends accept standard copper tube for soldering. It is appropriate wherever code requires wrot copper fittings in a sweat-joint copper assembly.

Key Features

• 90-degree angle provides a clean right-angle direction change in copper tube runs
• Short radius adapter type keeps overall fitting footprint minimal for tight spaces
• Wrot copper construction offers consistent wall thickness and reliable soldered joints
• CxC connection on both ends accepts standard 5/8-inch copper tube for sweat soldering
• Compact dimensions of 1.75 inches height and 1.75 inches length reduce installation bulk
• Lightweight at 0.08 pounds, simplifying handling during overhead or confined-space work

Compatibility

Designed as an OEM-style sweat fitting compatible with standard 5/8-inch OD copper tube used in plumbing, HVAC, and refrigeration piping systems where wrot copper CxC fittings are specified.

Installation Notes

Installation is performed by a licensed plumber or HVAC technician following applicable codes such as the IPC or IFGC for plumbing systems or applicable refrigeration piping standards. Shut off the water supply or recover refrigerant and depressurize the system fully before cutting into an existing line. Clean and deburr the tube ends and fitting cups, apply appropriate flux, and solder with a propane or MAPP torch using lead-free solder where required by code. Do not apply heat to a pressurized line and do not force the fitting onto an out-of-round tube end.

Technical Specifications

• Material: Wrot Copper
• Angle: 90 degrees
• Adapter Type: Short Radius
• Connection Size: 5/8 x 5/8 inches
• Connection Type: CxC (Sweat)
• Actual Height: 1.75 inches
• Actual Length/Depth: 1.75 inches
• Actual Width: 1 inch
• Actual Weight: 0.08 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00094
