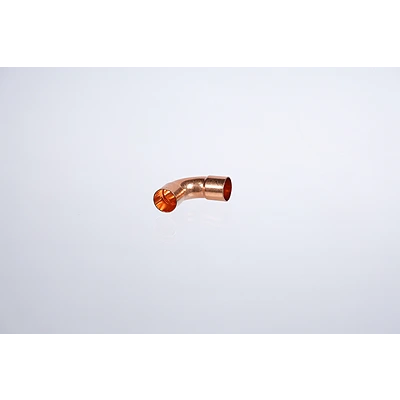

Mueller Streamline ELL00016 Wrot Copper 90 Deg Elbow

Product Description

The MUELLER STREAMLINE ELL00016 is a wrot copper 90-degree long radius elbow designed for sweat (solder) connections in copper piping systems. With a 3/4 x 3/4 inch C x C configuration, it creates smooth directional changes in water supply, hydronic heating, and general plumbing lines. The long radius bend reduces turbulence and flow restriction compared to short radius fittings, making it a reliable choice for tight mechanical rooms and confined chase runs. Licensed plumbers and pipefitters install this fitting using standard soldering procedures. It measures 2.4 inches in height and 2.4 inches in length, and weighs 0.13 pounds.

This elbow is suited for residential and light commercial plumbing and hydronic applications wherever a 90-degree directional change is required in a 3/4 inch copper line. It is commonly installed in domestic hot and cold water distribution, baseboard heating loops, and radiant systems. The C x C end connections accept standard 3/4 inch copper tubing prepared with proper flux and solder per applicable plumbing codes.

Key Features

• Wrot copper construction for high strength and corrosion resistance in water service applications
• Long radius adapter type reduces flow turbulence at directional changes
• 90-degree angle fits standard right-angle turns in copper piping layouts
• C x C (sweat) connections compatible with 3/4 inch copper tube and standard lead-free solder
• Compact footprint at 2.4 x 2.4 x 0.95 inches suits confined installation spaces

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3/4 inch copper piping systems using sweat (C x C) connections in residential and light commercial plumbing and hydronic heating applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable International Plumbing Code (IPC) or local plumbing authority requirements. Shut off and drain the water supply completely before cutting and soldering. Clean all tube ends and fitting cups with emery cloth or a fitting brush, apply appropriate lead-free flux, and solder with a lead-free alloy as required by potable water codes. Do not apply heat to a pressurized or water-filled line.

Technical Specifications

• Material: Wrot Copper
• Angle: 90 degrees
• Adapter Type: Long Radius
• Connection Size: 3/4 x 3/4 inches
• Connection Type: C x C (Sweat)
• Actual Height: 2.4 inches
• Actual Length/Depth: 2.4 inches
• Actual Width: 0.95 inches
• Actual Weight: 0.13 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00016
