Mueller Streamline a13183 Angle Valve 1/2 Inch Refrigeration

Product Description

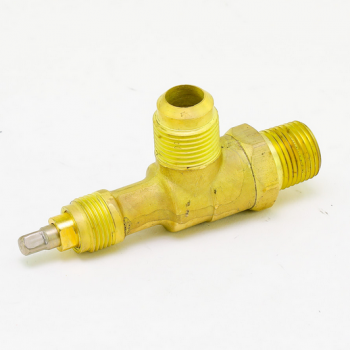

The MUELLER STREAMLINE a13183 is a packed line angle valve with backseating designed for refrigeration service. The forged brass body provides durability under demanding operating conditions, and the corrosion-resistant stem is suited for use with refrigerants and other industrial fluids. This valve is rated for a maximum abnormal pressure (MAP) of 700 psig and a continuous operating temperature (COT) range of -40 degrees F to 300 degrees F. It is compatible with all CFC, HCFC, and HFC refrigerants and oils. Licensed refrigeration and HVAC technicians typically install this valve as part of a refrigerant line service or system commissioning job.

This angle valve is used in refrigeration and air conditioning systems where a reliable line shutoff or service valve is required. The backseating feature allows packing replacement without fully shutting down the system, which is a practical advantage in commercial and industrial refrigeration applications. The 1/2 inch configuration suits common suction and liquid line work in both light commercial and residential refrigeration equipment.

Key Features

• Forged brass body for strength and long service life
• Corrosion-resistant stem compatible with refrigerants and industrial fluids
• Backseating design allows packing service without full system shutdown
• Compatible with all CFC, HCFC, and HFC refrigerants and oils
• Maximum abnormal pressure (MAP) rated at 700 psig
• UL/cUL Recognized and conforms to Pressure Equipment Directive 97/23/EC

Compatibility

Compatible with all CFC, HCFC, and HFC refrigerants and oils. Designed as an OEM-style service valve for use in refrigeration and air conditioning line applications.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician following applicable EPA Section 608 requirements and local mechanical codes. Recover refrigerant and depressurize the system before removing or installing this valve. Inspect all fittings and connections for leaks after installation using an approved leak detection method. Do not exceed the rated MAP of 700 psig during pressure testing.

Technical Specifications

• Maximum Abnormal Pressure (MAP): 700 psig (48 bar)
• Continuous Operating Temperature (COT): -40 degrees F to 300 degrees F (-40 degrees C to 149 degrees C)
• Body Material: Forged brass
• Refrigerant Compatibility: All CFC, HCFC, and HFC refrigerants and oils
• Certifications: UL/cUL Recognized, Conforms to Pressure Equipment Directive 97/23/EC
• Connection Size: 1/2 inch
• Valve Type: Angle, packed line with backseating

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: a13183
