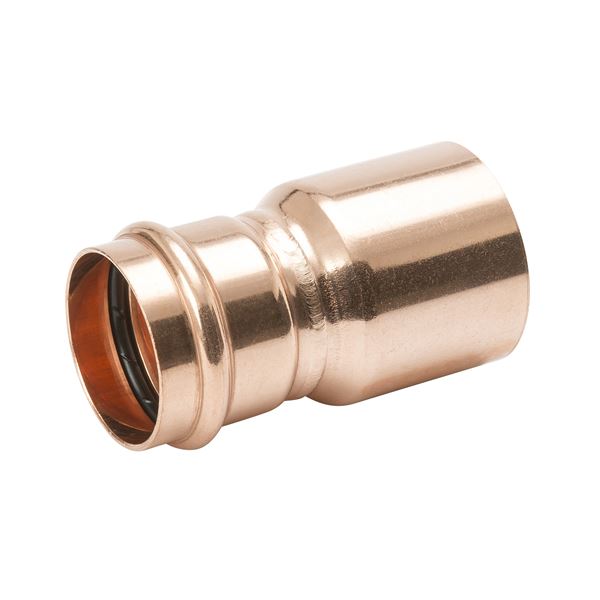

Mueller Streamline 1368 Copper Press Reducer 2.5x1.5 in

Product Description

The MUELLER STREAMLINE 1368 is a copper press reducer fitting designed for flameless joining in plumbing and mechanical piping systems. It transitions from a 2.5-inch fitting (FTG) end to a 1.5-inch press end, eliminating the need for open flame during installation. Rated to 300 psi and a maximum operating temperature of 250 degrees F, this fitting suits a wide range of hydronic, potable water, and mechanical system applications. Licensed plumbers and pipefitters install this fitting using a press tool and compatible jaws, making it well-suited for occupied buildings or environments where torch work is restricted.

This reducer is used in residential and commercial plumbing systems where a pipe size reduction is required along a copper run. The flameless press connection method makes it appropriate for retrofit and new construction work in spaces with limited ventilation or fire-hazard concerns. It covers a diameter range consistent with the Streamline PRSTM copper press product family, which is available from 0.5 inches through 4 inches in diameter.

Key Features

• Flameless press connection eliminates torch and solder for faster, safer installation
• FTG x Press end configuration for direct coupling into sweat or press piping systems
• Rated to 300 psi maximum operating pressure
• Operating temperature range of -20 degrees F to 250 degrees F
• Meets NSF/ANSI 61 for potable water system components
• Compliant with ASME B16.51, IAPMO PS-117, NSF/ANSI 372, and CSA TIL-MSE-13

Compatibility

Designed as an OEM-style press fitting for copper piping systems requiring a 2.5-inch to 1.5-inch reduction with a fitting-by-press end configuration. Compatible within the Streamline PRSTM copper press fitting line, covering sizes from 0.5 to 4 inches in diameter.

Installation Notes

Installation is performed by a licensed plumber using a press tool with the appropriate jaw size for each end. Shut off and depressurize the water supply before making connections. Verify that the pipe ends are clean, deburred, and fully inserted into the fitting before pressing. Always follow local plumbing codes, IPC requirements, and the tool manufacturer's guidelines for press connection procedures.

Technical Specifications

• Material: Copper
• End Type: Fitting (FTG)
• End Size: 2.5 inches
• Second End Type: Press
• Second End Size: 1.5 inches
• Maximum Operating Pressure: 300 psi
• Minimum Operating Temperature: -20 degrees F
• Maximum Operating Temperature: 250 degrees F
• Weight: 0.88 pounds
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: 1368
