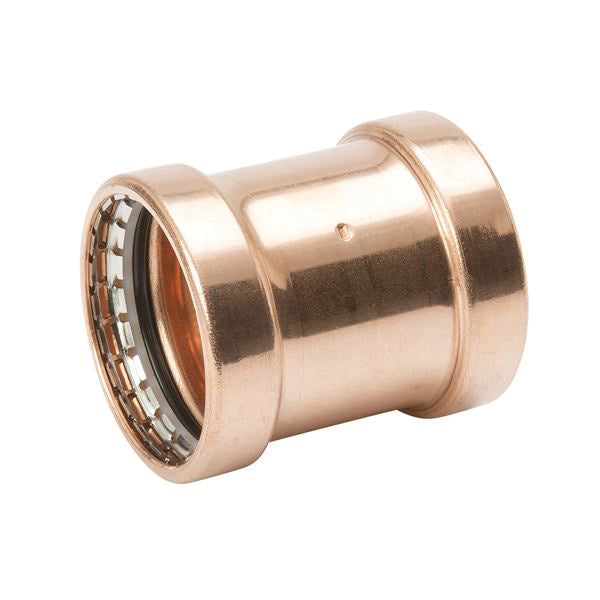

Mueller PF10151 Streamline PRS PF 10151 Large Coupling With Staked Stop 2-1/2 in

Product Description

The Mueller PF10151 Streamline PRS Large Coupling is designed for use in plumbing applications. It features a sturdy construction with a staked stop and has a size of two and a half inches. This coupling is suitable for various fluids, including potable water and non-medical gases.

• Fast installation process
• Flameless joining technology
• Durable wrought copper material

Product Highlights

The Mueller PF10151 coupling offers efficient and reliable connections for plumbing systems.

Product Information

Standard Information

• Brand: Mueller
• Part Number: R2899

Technical Specifications

• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air (200 psi max), Non-Medical Gases (140 psi max), Low Pressure Steam (15 psi max), Vacuum (24.5 in Mercury max at 68 deg F), Mechanical Systems, Residential and Commercial Plumbing
• Dimensions: 3.39 in L x 3.18 in W x 3.18 in H
• End Style: Press
• Fitting/Connector Type: Coupling
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, CSA TIL-MSE-13, IAPMO PS-117, NSF/ANSI 61-G/372, Tier II PDA, Class III Applications, UPC Listed, USA Lead Free Compliant
• Nominal Size: 2-1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Type: Large
• Warranty: 50 Years Limited
