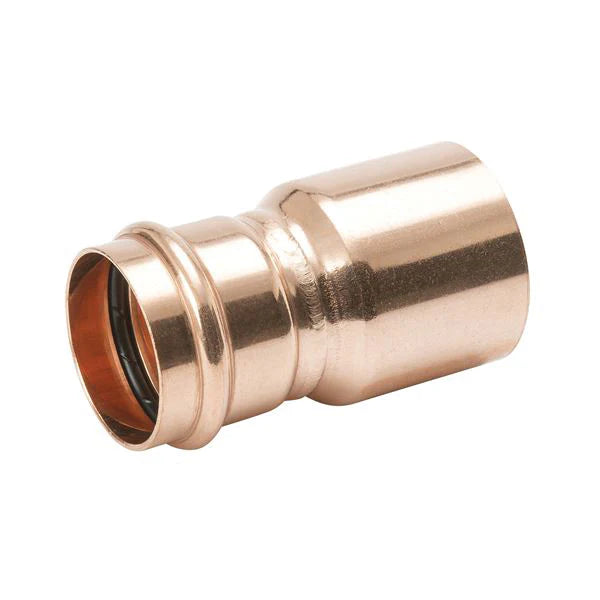

Mueller PF01378 Streamline PRS PF 01378 Large Fitting Reducer, 3 x 1-1/2 in, Fitting x Press, R3068

Product Description

The Mueller PF01378 is a large fitting reducer designed for various plumbing and mechanical applications. This fitting features a durable construction from wrought copper, making it suitable for potable water systems, hydronic heating and more.

• Easy installation with flameless joining technology
• Compatible with a wide range of plumbing systems
• High-pressure tolerance of up to 200 psi

Product Highlights

This reducer maintains a consistent professional appearance in installations and requires less equipment compared to traditional soldering methods.

Product Information

Standard Information

• Brand: Mueller
• MPN: PF01378

Technical Specifications

• Application: Potable Water, Hydronic Heating, Compressed Air, Non-Medical Gases, Residential and Commercial Plumbing
• Dimensions: 5.26 in L x 3.12 in W x 3.12 in H
• End Style: Fitting x Press
• Fitting/Connector Type: Reducer
• Material: Wrought Copper
• Mfg Standards/Approvals: ASME B16.51, ABS Certification, IAPMO PS-117, NSF/ANSI 61-G/372
• Nominal Size: 3 x 1-1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Warranty: 50 Years Limited
