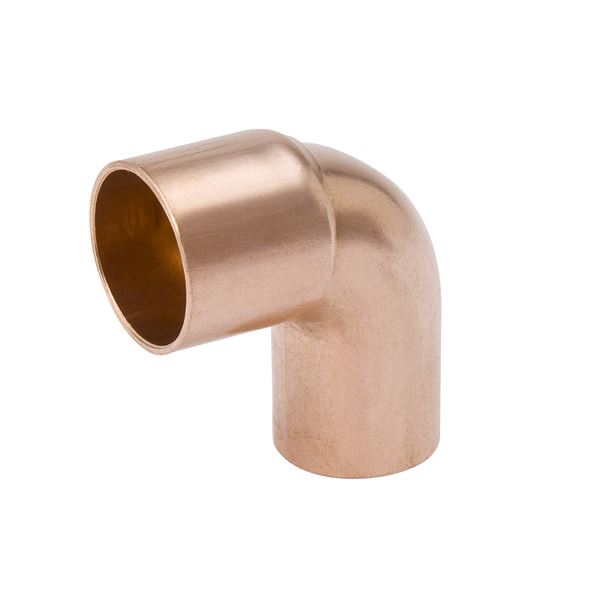

Mueller Industries W02384R, 90 Degree Elbow Short Radius Street, FTG x C, 1-1/4

Product Description

The Mueller Industries W02384R is a copper solder-joint fitting used in supply and pressurized systems. This short radius street elbow facilitates a 90-degree connection. It is constructed from high-grade copper and is ideal for above-ground potable water supply systems.

• End Style: Street
• Nominal Size: 1-1/4 inches
• Pressure Rating: 700 psi

Product Highlights

This product meets ASME standards and is NSF 61G certified, ensuring safety and reliability in water applications.

Product Information

Standard Information

• Manufacturer Part Number: W02384R
• Material: Copper

Technical Specifications

• Application Type: Pressure
• Fitting/Connector Type: 90-degree Elbow
• Type: Short Radius
• Weight: 0.29 lb
• End Type: C - Cup (Female Solder)
• End Size: 1 1/4
• Second End Type: FTG - Fitting (Male Solder)
• Second End Size: 1 1/4
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
• Overall Length: 2.86 inches
• Overall Height: 2.86 inches
• Overall Width: 1.49 inches
