Mueller Industries W01023R Reducing Coupling - 1/2 x 3/8 Inch

Product Description

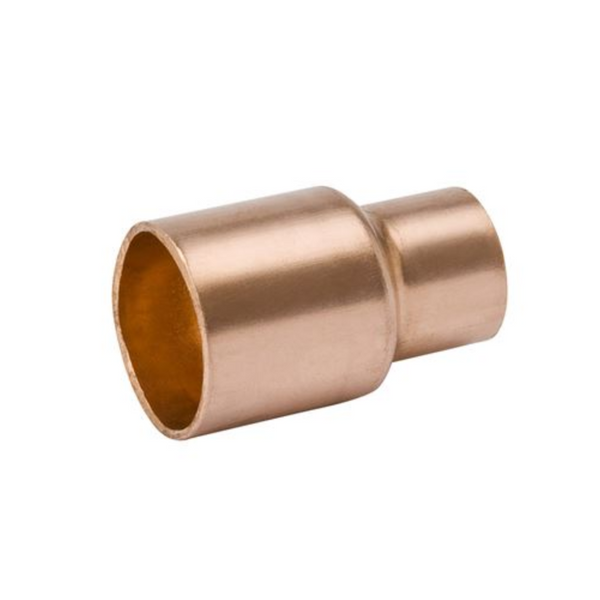

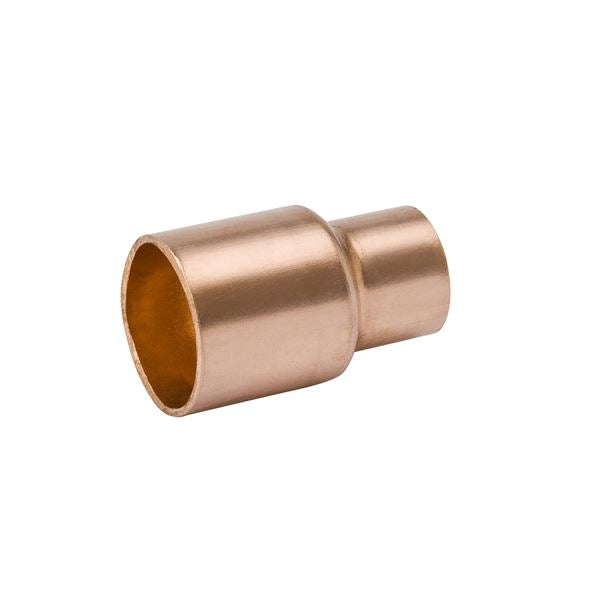

The Mueller Industries W01023R Reducing Coupling is designed for use in supply and pressurized systems. This fitting connects a half-inch pipe to a three-eighths-inch pipe and is suitable for above-ground potable water supply systems. It is constructed from wrot copper and features solder-joint connections. This coupling meets several industry standards, ensuring safety and durability.

• Constructed from wrot copper.
• Designed for pressure applications up to seven hundred psi.
• Complies with ASME B16.22 and MSS SP104 standards.

Product Highlights

This coupling is engineered to provide a reliable connection for different pipe sizes in plumbing applications.

Product Information

Standard Information

• Brand: Mueller
• Sub Brand: Streamline

Technical Specifications

• MPN: W01023R
• Item Name: Reducing Coupling
• Nominal Size: 1/2 x 3/8 Inch
• End Type: C - Cup (Female Solder)
• Connection Type: C x C
• Material: Wrot Copper
• Pressure Rating: 700 psi
• Temperature Rating: 250 deg F
• Overall Length: 1.02 inches
• Overall Height: 0.71 inches
• Overall Width: 0.71 inches
