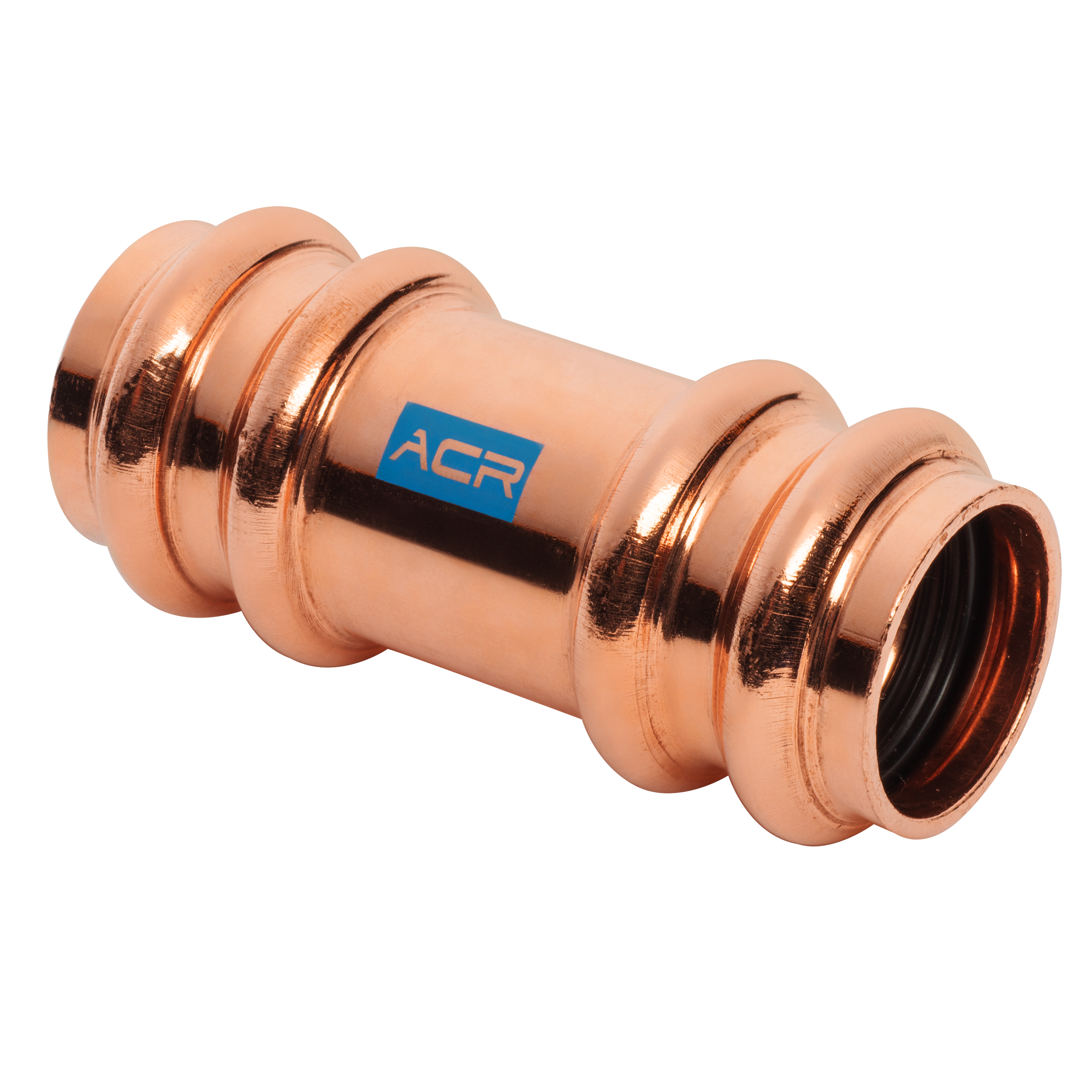

Mueller Industries 5/8ACR Streamline ACR Coupling (P x P)

Product Description

The MUELLER INDUSTRIES 5/8ACR Streamline ACR Coupling is designed with P x P end connections and a 5/8" OD. Streamline is a trusted name providing best-in-class products. The ACR Press System exemplifies innovation and commitment to customer needs, setting the standard for excellence. Approved for use with Type ACR, L, K hard and soft copper tube.

• Features Industry-leading Two Ring Advanced Press (T.R.A.P.) Technology
• DualSeal Ring Design provides superior sealing and joint strength with 200% more surface contact.
• Compatible with R410A and other commonly used refrigerant gases and oils.

Product Highlights

This coupling ensures leak protection and uniform joint compression. It is compatible with leading full-size press tools.

Product Information

Standard Information

• Brand: MUELLER INDUSTRIES
• Manufacturer Part Number: 5/8ACR

Technical Specifications

• Approved for use with: Type ACR, L, K hard and soft copper tube.
• Material: COPPER
• Operating Temperature [Min]: -40 °F
• Operating Temperature [Max]: 250 °F
• Operating Pressure [Max]: 700 psi
• End Type: ACR Press
• End Size: 5/8 in
• Second End Type: ACR Press
• Second End Size: 5/8 in
• Overall Length: 2.56 in
• Overall Height: 0.96 in
• Overall Width: 0.96 in
