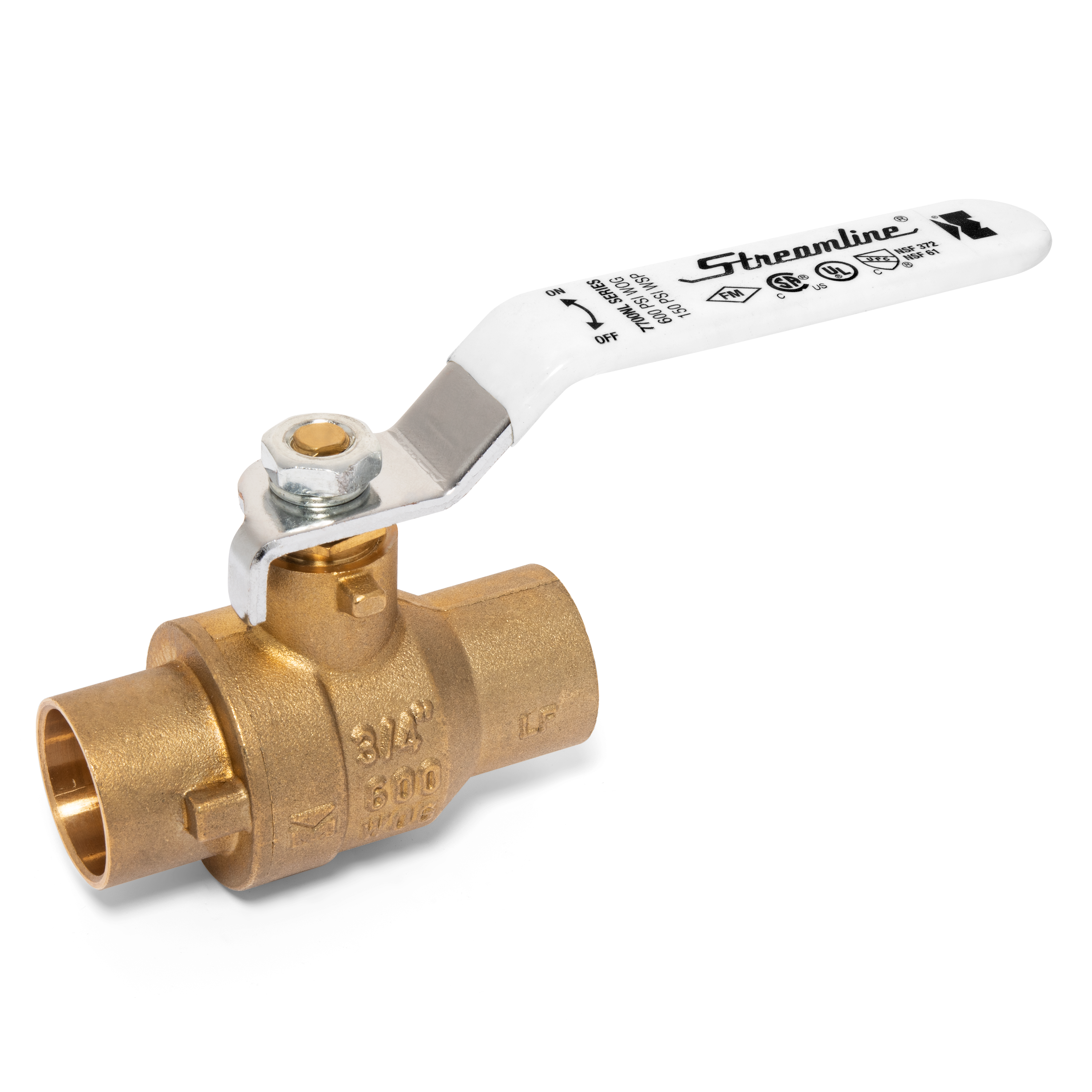

Mueller Industries 117-844 Streamline Solder with Packing Gland 3/4 in

Product Description

The Mueller Industries 117-844 Streamline Solder with Packing Gland is suitable for solder connections. This product operates under a maximum pressure of 600 psi. It can handle temperatures from minus twenty degrees Fahrenheit to three hundred degrees Fahrenheit. The solder has female end types and is designed with a size of three-fourths of an inch.

• Operating temperature range: -20 degrees Fahrenheit to 300 degrees Fahrenheit
• Maximum operating pressure: 600 psi
• Connection type: Solder x Solder

Product Highlights

Reliable performance for HVAC and plumbing applications with a durable solder design.

Product Information

Standard Information

• Brand: Mueller Industries
• MPN: 117-844

Technical Specifications

• Operating Temperature [Min]: -20 degrees Fahrenheit
• Operating Temperature [Max]: 300 degrees Fahrenheit
• Operating Pressure [Max]: 600 psi
• Connection Type: Solder x Solder
• End Type: Female Solder
• End Size: 3/4 inches
• A: 3.94 inches
• B: 1.78 inches
• C: 0.79 inches
• D: 0.88 inches
• E: 0.75 inches
• F: 1.37 inches
• G: 2.74 inches
