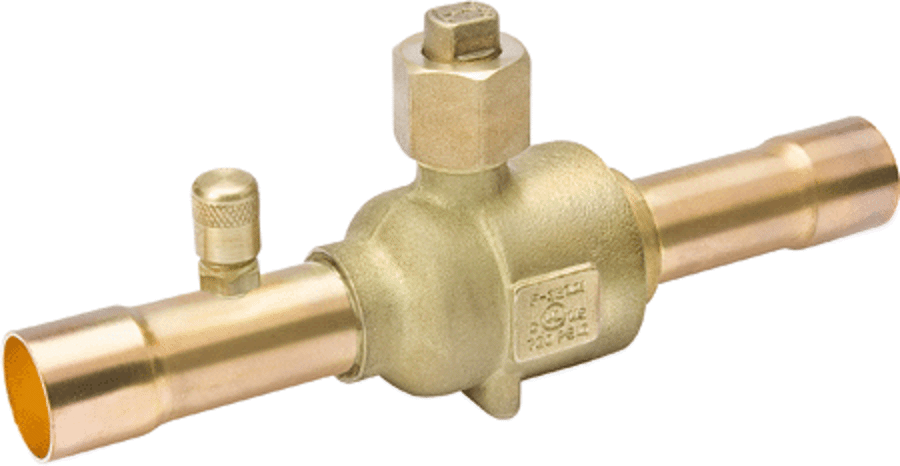

Mueller Streamline AC17867 1-5/8 in Refrigeration Ball Valve with Access (1-5/8 in)

Brand: MUELLER STREAMLINE
SKU: AC17867
Availability: In Stock

Ships same day if ordered by 12 pm
$214.90
$214.90
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Mueller Streamline AC17867 is a 1-5/8 in refrigeration ball valve with an access port for service and charging. It features a full-port 1.50 in opening with Cv 114 (Kv 99), a forged brass body, chrome-plated ball, and MCM seals. The valve is rated to MAP 53 bar (775 psi) and operates from -40 C (-40 F) to 149 C (300 F); length is 11 in and weight about 1.67 kg.

  • Full-port refrigeration ball valve with 1.50 in port, Cv 114 (Kv 99)
  • Forged brass body, chrome-plated ball and MCM seals for reduced wear and low leak rates
  • Rated MAP 53 bar (775 psi); operating temperature -40 C (-40 F) to 149 C (300 F); includes seal cap kit A 17844

Product Highlights

Full-port Cyclemaster refrigeration ball valve with access port, forged brass body, chrome-plated ball, Cv 114, MAP 53 bar (775 psi), operating range -40 C to 149 C.

Product Information

Standard Information

  • Brand: MUELLER STREAMLINE
  • Manufacturer Part Number: AC17867
Technical Specifications
MPN
AC17867
Brand
Mueller Streamline
Product Line
Cyclemaster
Product Name
1-5/8 in Refrigeration Ball Valve with Access Port
Application
Refrigeration
Connection Size
1-5/8 in
Port
1.50 in
Cv
114.00
Kv
99
Maximum Allowable Pressure (MAP)
53 bar (775 psi)
Maximum Working Pressure
53 bar (775 psi)
Operating Temperature Range
-40 C (-40 F) to 149 C (300 F)
Body Material
Forged brass
Ball Finish
Chrome plated
Seals
MCM seals
Port Type
Full port
Style
Ball valve / Shutoff valve
Seal Cap Kit
A 17844
Compatibility
CFC, HCFC, HFC refrigerants and oils
Weight
1.67 kg (3.68 lb)
Dimensions (Length x Width x Height)
11 in x 2.25 in x 4.12 in
Dimension A
11.00 in (279 mm)
Dimension B
5.5 in (140 mm)
Dimension C Min
1.09 in (28 mm)
Dimension D
1.38 in (35 mm)
Dimension E
4.12 in (105 mm)
Dimension F
2.25 in (57 mm)
Dimension G
2.17 in (55 mm)
Thread H
M6 x 1.0
