MTE RL-03502 Line/Load Reactor

Product Description

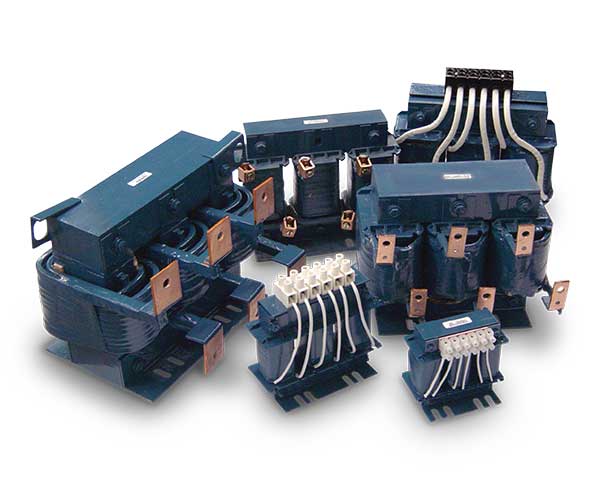

The MTE RL-03502 is a three-phase line/load reactor made for systems using 208-600VAC at 50/60Hz. This unit is part of the RL Series and offers a 5% impedance for managing power quality. It can handle applications with horsepower ratings up to 30 hp and a constant torque of 35A. The dimensions of the reactor are five point eight inches in height, seven point one inches in width, and three point seven inches in depth, with a total weight of sixteen pounds. It is designed to reduce power line disturbances and can be utilized on both line and load sides.

• Designed for 208-600V, 50/60Hz three-phase systems.
• 5% impedance improves power quality.
• Handles applications up to 30 hp with a 35A constant torque.

Product Highlights

This reactor enhances system stability and efficiency while ensuring reliable performance.

Product Information

Standard Information

• Brand: MTE
• MPN: RL-03502

Technical Specifications

• Amp Rating: 35A
• Horsepower: 30 hp
• Impedance: 5%
• Phase: Three Phase
• Series: RL Series
• Voltage: 460/480VAC, 600V
• Warranty: 5 Years
• Enclosure: Chassis
• Height: 5.8 inches
• Width: 7.1 inches
• Depth: 3.7 inches
