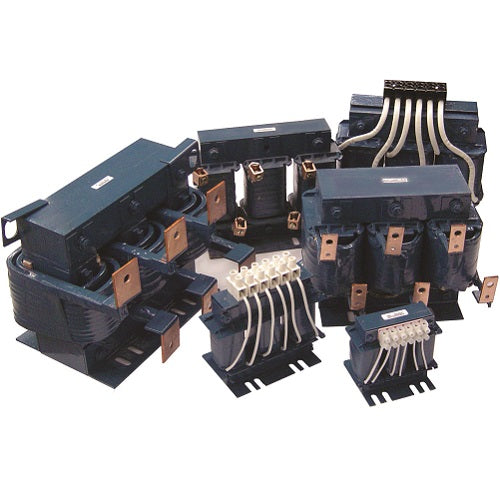

MTE RL-01202 Line/Load Reactor

Product Description

The MTE RL-01202 is a line/load reactor designed for three-phase systems ranging from 208 to 600 volts. This reactor is open chassis and has a current rating of twelve amps. It provides an inductance of 2.5 millihenries and an impedance of five percent. The reactor operates at a frequency of fifty to sixty hertz.

• Rated for twelve amps of current.
• Compatible with 208-600V, three-phase systems.
• Open-type enclosure design.

Product Highlights

This reactor is suitable for various industrial applications, maintaining reliability in demanding environments.

Product Information

Standard Information

• Brand: MTE
• Model: RL-01202

Technical Specifications

• Amp Rating: 12 Amp
• Horsepower: 10 hp
• Impedance: 5% Impedance
• Phase: Three Phase
• Series: RL Series
• Voltage Ratings: 460/480VAC, 600V
• Warranty: 5 Years
• Weight: 10 lbs
• Inductance: 2.5 mH
• Enclosure Rating: IP 00
• Heat Loss: 31 W
• Minimum Ambient Temperature: -0 °C
• Maximum Ambient Temperature: 50 °C
• Height: 5.00 inches
• Width: 5.90 inches
• Depth: 3.20 inches
