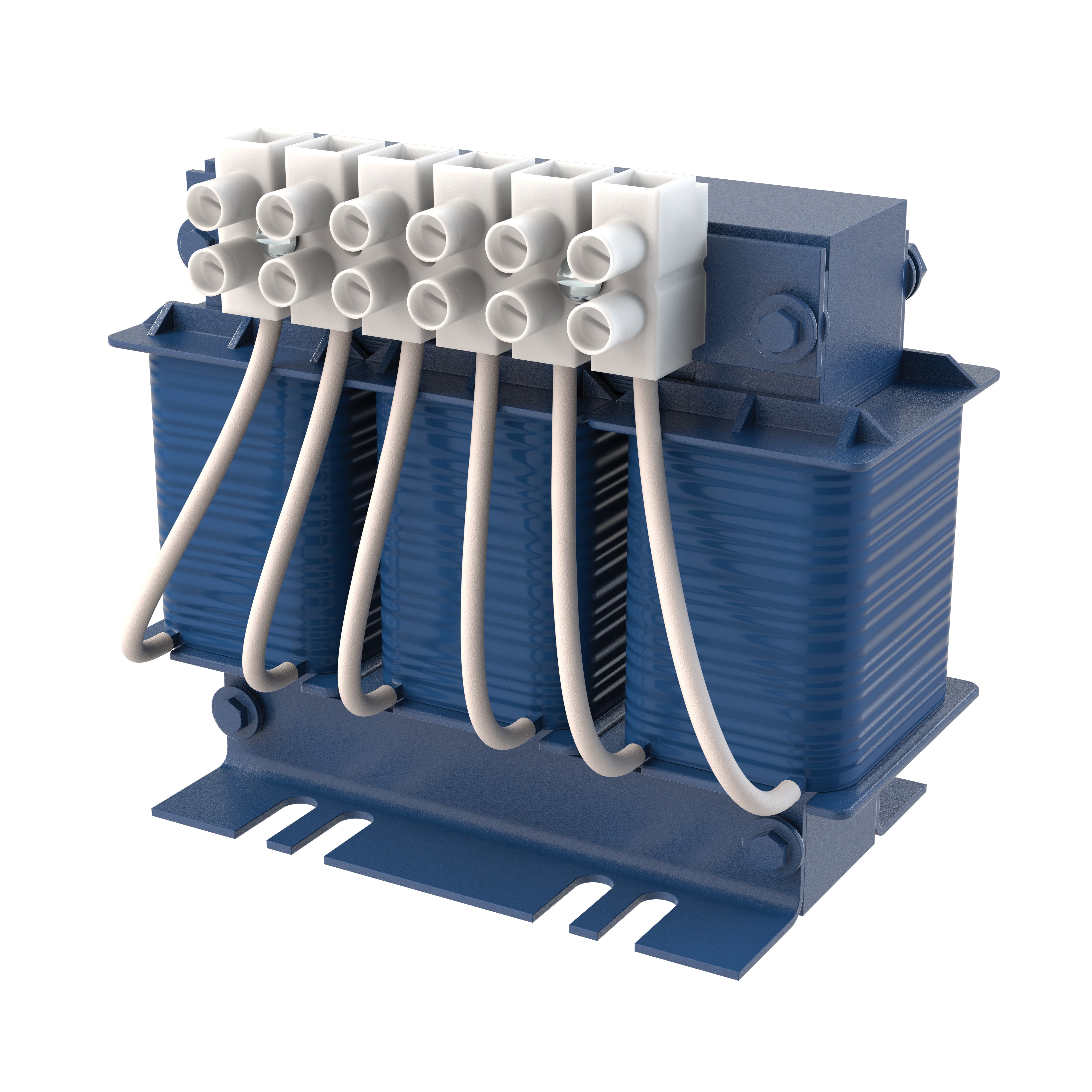

MTE RL-00201 Line/Load Reactor 600 VOLT MAX

Product Description

The MTE RL-00201 is designed for use with single-phase and three-phase systems. This line/load reactor accommodates voltage ranges from two hundred eight to six hundred ninety VAC, supporting applications of one-quarter to one and a half horsepower. It is rated for a maximum of six hundred volts and specifically handles a half horsepower at four hundred VAC single-phase.

• Supports single-phase and three-phase systems
• Reduces harmonic distortion to thirty to thirty-five percent
• 150% continuous overload capacity

Product Highlights

This reactor effectively reduces line side harmonic distortion and load side dv/dt rate. It is built for surface mounting with an open enclosure and includes an IP20 rating.

Product Information

Standard Information

• Brand: MTE
• MPN: RL-00201

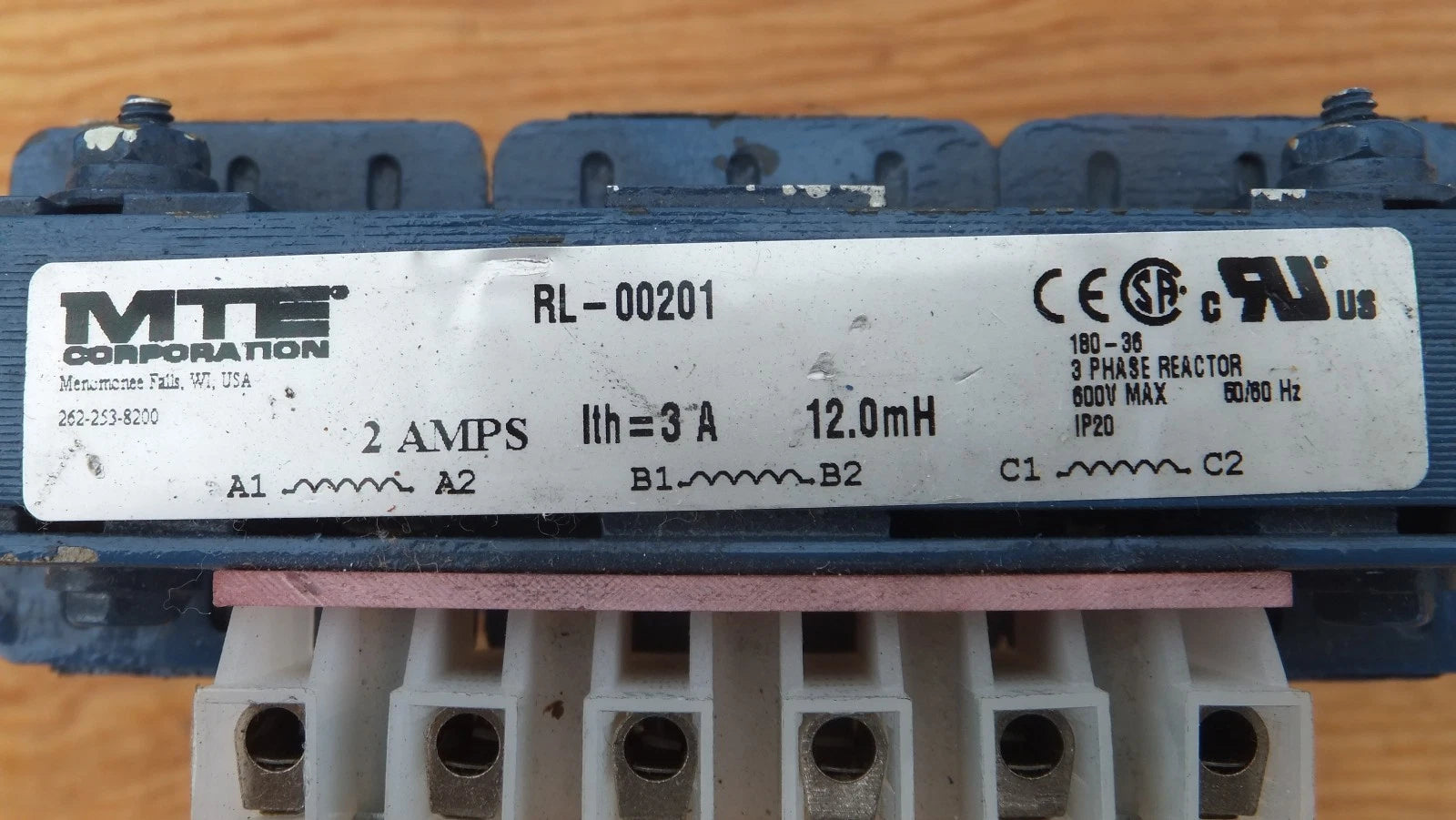

Technical Specifications

• Amps: 2
• ITH: 3A
• Inductance: 12 mH
• Phase: 1 or 3
• Voltage: MAX six hundred volts
• IP Rating: IP20
• Series: RL Series
• Voltage Rating: 208 to 690 VAC
• Horsepower: 1/4 to 1-1/2 hp, 1/2 hp
• Impedance: 3 and 5 %
• Height: 4 inches
• Width: 4.2 inches
• Depth: 2.6 inches
• Enclosure Type: Open
• Mounting Type: Surface
