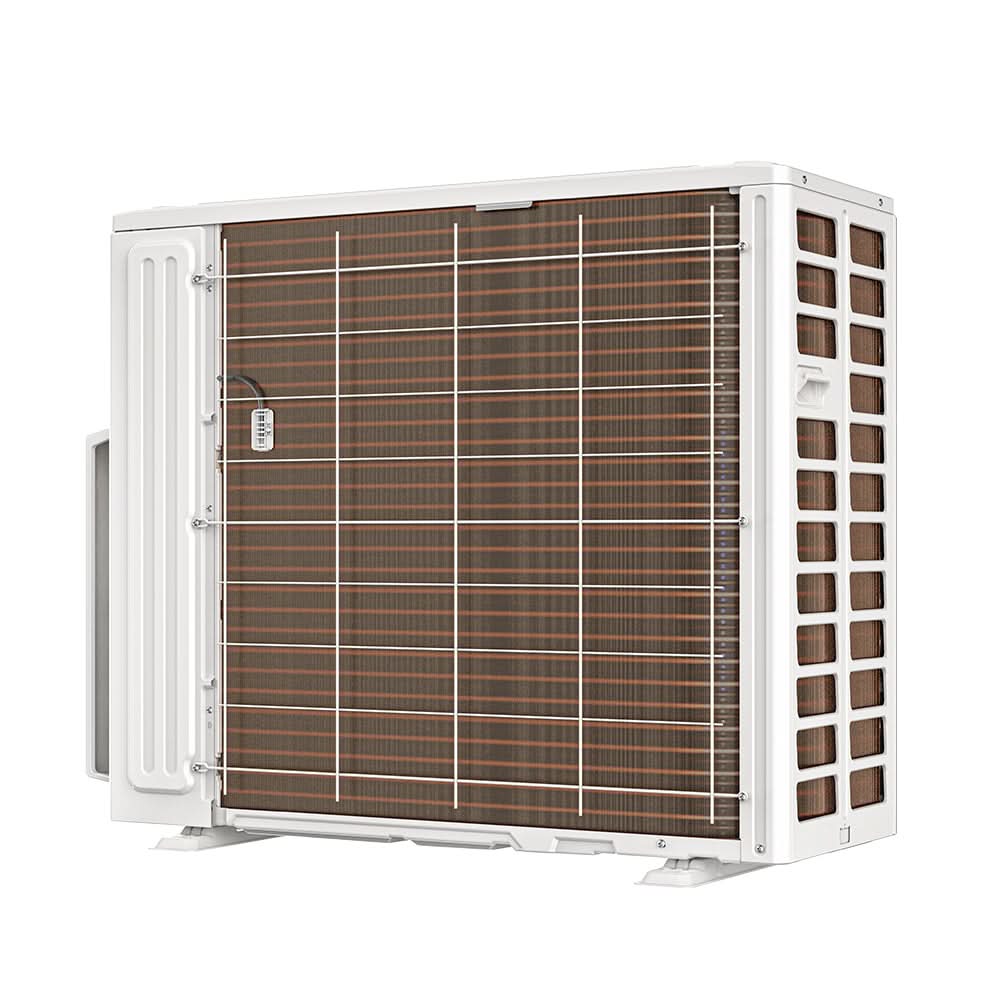

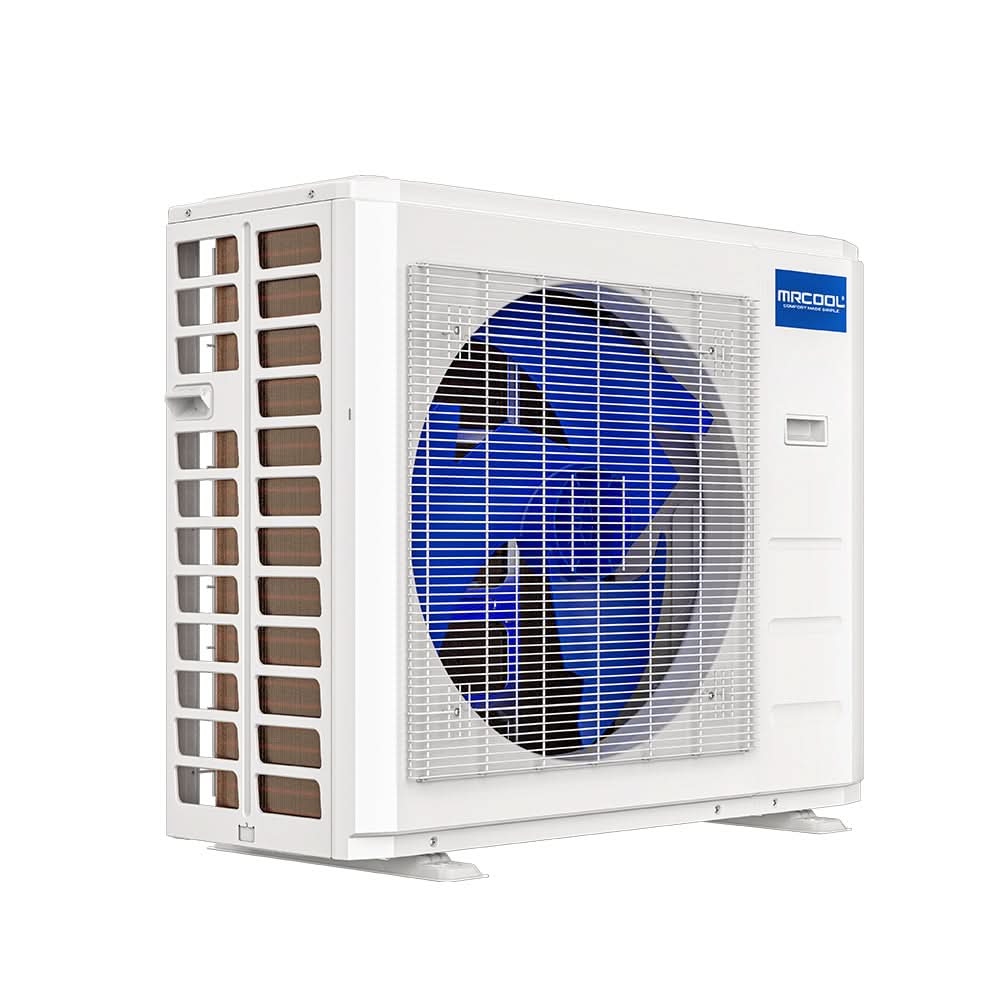

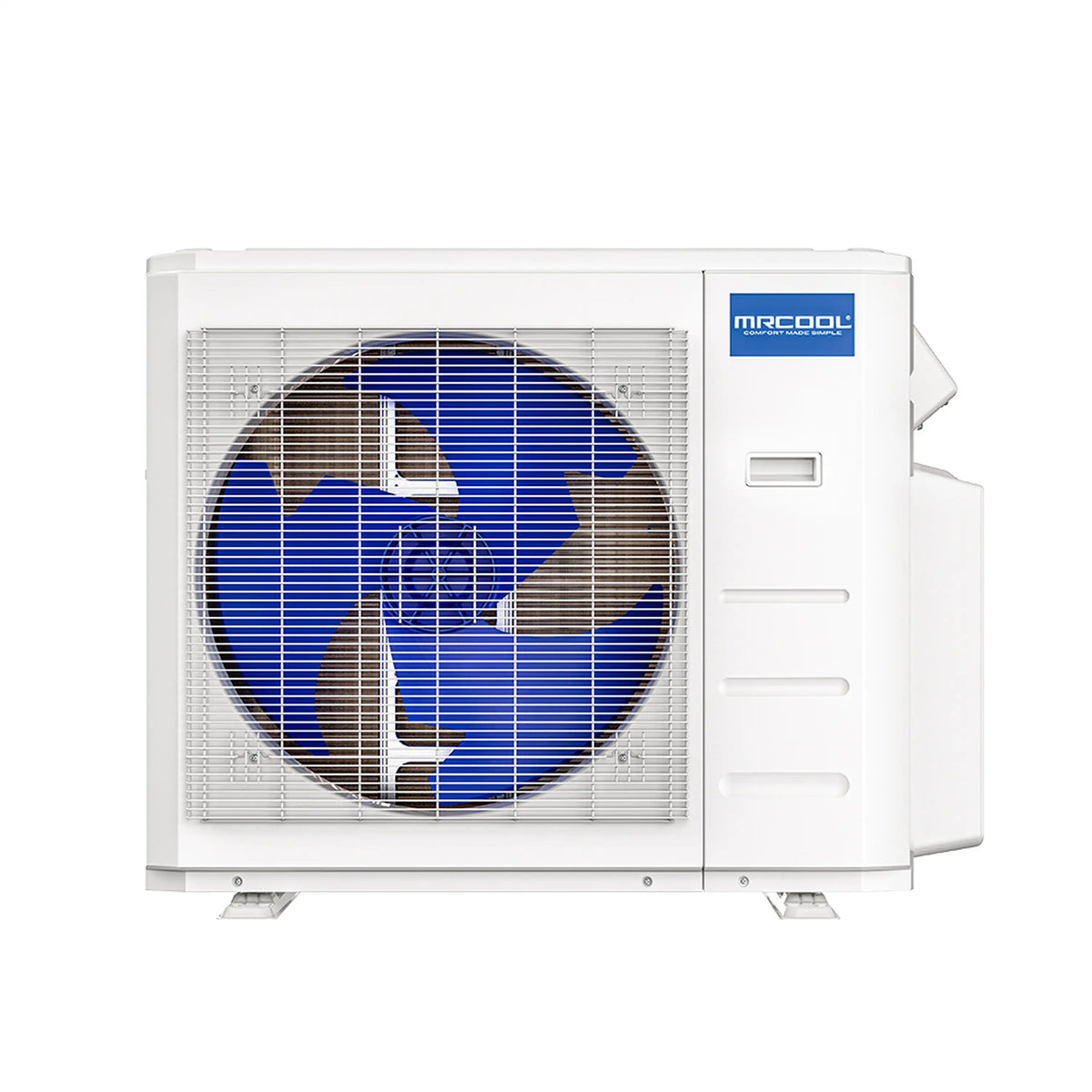

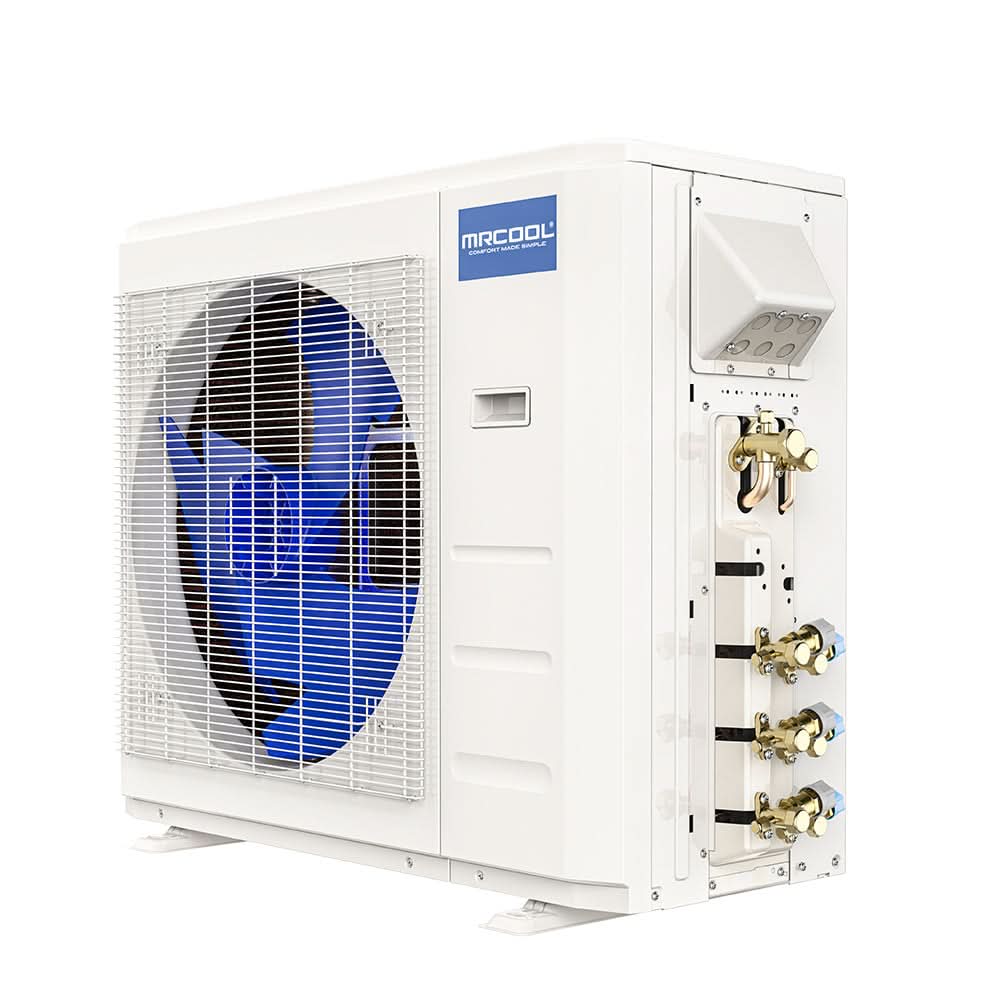

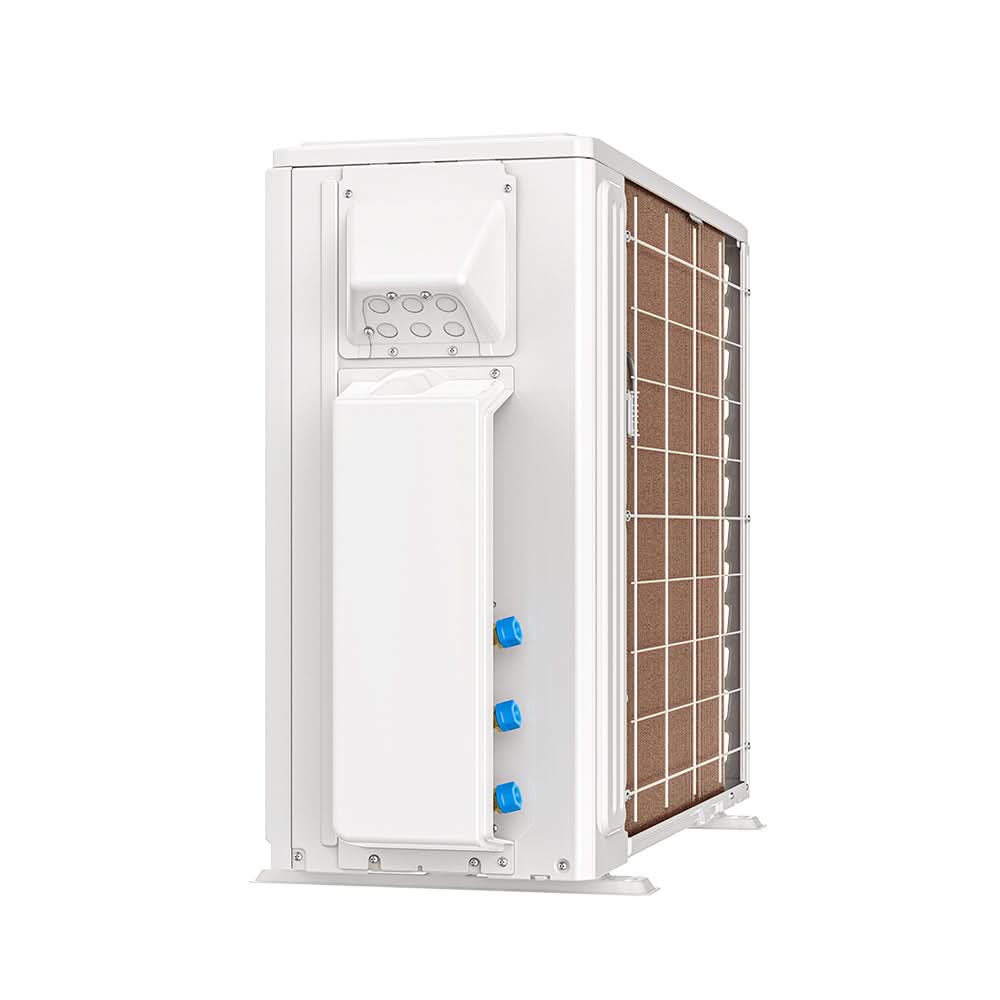

Mrcool DIY-MULTI5-36HP230D-O 36k BTU 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v

MRCOOL
Brand: MRCOOL
SKU: DIY-MULTI5-36HP230D-O
Availability: In Stock

Ships via freight in 1-3 business days
$2,476.51
$2,476.51
LTL Delivery

This product weighs 169 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The MRCOOL DIY-MULTI5-36HP230D-O 36k BTU Multi-Zone Mini-Split Condenser is engineered for DIY installation, supporting up to five zones. This system provides customizable comfort and efficient performance year-round. It requires at least two connected air handlers and is pre-charged with R-454B refrigerant. Ideal for heating and cooling multiple rooms, offering control and cost savings.

  • DIY Installation: Quick Connect pre-charged line sets make setup fast and tool-free.
  • Smart Control: WiFi-enabled and compatible with SmartHVAC App, Amazon Alexa, and Google Assistant.
  • R-454B Refrigerant: Environmentally friendly and compliant with new EPA regulations.

Product Highlights

This MRCOOL mini-split condenser offers easy DIY installation, smart control, and eco-friendly refrigerant for efficient, customizable comfort.

Product Information

Standard Information

  • Brand: MRCOOL
  • Manufacturer Part Number: DIY-MULTI5-36HP230D-O
Technical Specifications
Model Number
DIY-MULTI5-36HP230D-O
Cooling Capacity
36,000 BTU/h
Heating Capacity
36,000 BTU
Recommended Coverage Area
Up to 1,550 sq. ft.
SEER2
18.0
EER2
8.5
HSPF2-4
8.5
HSPF2-5
6.5
Power Supply
208–230V, 60Hz, 1 Phase
Minimum Circuit Ampacity
33 A
Maximum Fuse
35 A
Refrigerant Type
R-454B
Refrigerant Charge
109.70 oz
Line Set Sizes
3/8" Liquid x 5/8" Gas
Net Dimensions (WxDxH)
37.24" x 16.14" x 31.89"
Net Weight
152.12 lbs
Recommended Wire Size
8 AWG (for 33A load)
Voltage
208/230/1/60
Nominal Tons
3 Ton
Liquid Line
1/4"
Suction Line
1/2"
Outdoor Noise Level
64 dB(A)
Outdoor Operating Temperature Cooling
-13°F to 122°F
Outdoor Operating Temperature Heating
-13°F to 75°F
Phase
1
Cycle
60 Hz
Max Line Set Length
221.4 ft.
Inverter
DC
Compressor Type
Rotary
Fan Only Option
Yes
Quiet Mode
Yes
Auto Cool
Yes
Wifi Compatibility
Yes
App Compatibility
Yes
Works with IOS
Yes
Works with Android
Yes
Certifications
Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
Warranty
7 Years Compressor 5 Years Parts
Electrical Phase
1-Phase
Heat Pump Efficiency (HSPF2)
9.9
Line Set Connection Type
Quick Connect
Primary Heating Capacity
35,001 - 40,000 BTU
Series
DIY
System Application Type
Ductless Split Systems
Region Compatibility
Nationwide
