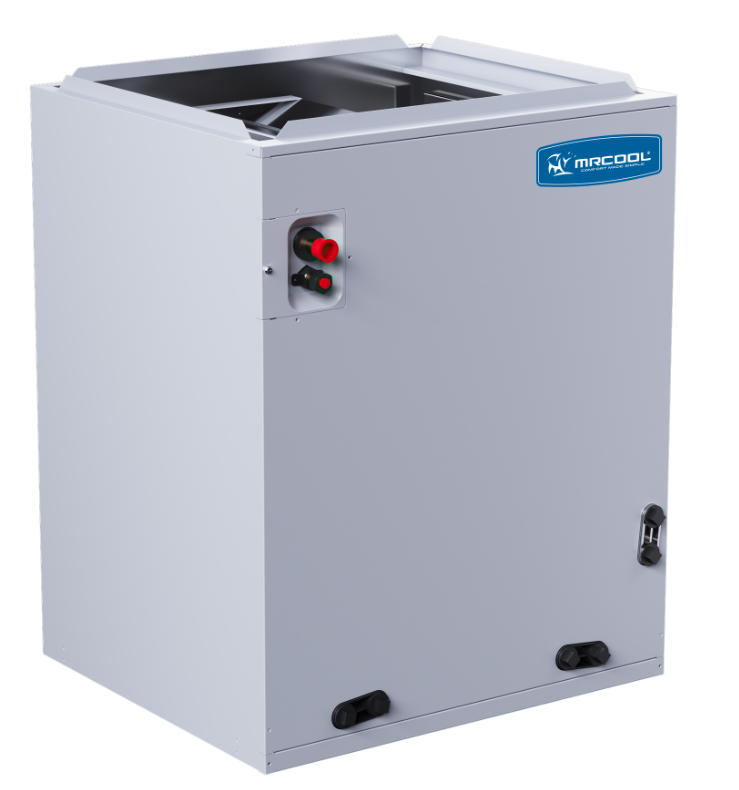

MRCOOL HCMP4860DFOA MRCOOL ProDirect Series Cased Coil 3rd Gen HCMP4860DFOA

Product Description

The MRCOOL ProDirect Series Cased Coil with MPN HCMP4860DFOA is designed to improve HVAC system efficiency. It works with both R410A and R22 refrigerants, making it compatible with existing systems. The coil includes a heat exchanger made of aluminum fins combined with internally grooved copper tubing. A thermally insulated cabinet, which features foil-faced insulation, helps to minimize condensation issues.

• Compatible with R410A and R22 refrigerants
• Thermally insulated cabinet with foil-faced insulation
• Multi-positional design for flexible installation

Product Highlights

This cased coil allows for easy installation and maintenance due to its dual drain pans. It comes equipped with a 23-inch supply duct, a 3/8-inch liquid line, and a 7/8-inch suction line. The UL certification confirms that it meets safety and quality standards.

Product Information

Standard Information

• Installation: Multiposition for flexible setup
• Evaporator Coil Tube Material: Aluminum

Technical Specifications

• Evaporator Coil Tube Size: 9/32 inches
• Supply Duct Size: 23 inches
• Dimensions: 30 inches in height and 24-½ inches in width
