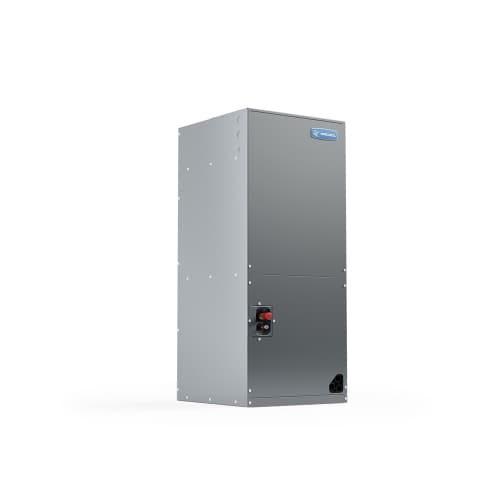

MRCOOL HAH15018 ProDirect Series Air Handler 1.5 Ton

Product Description

The MRCOOL ProDirect Series Air Handler HAH15018 is a versatile multi-position unit that can cool and heat spaces. It has a well-designed A-shaped evaporator coil and a three-speed direct drive blower motor. Designed for ease of maintenance, the unit features a removable filter that is easy to clean.

• Multi-position installation for flexible setup
• Includes a removable filter for easy maintenance
• Supports optional electric heat kit installation

Product Highlights

This air handler operates effectively with a cooling capacity of 1.5 tons. It is compatible with 240-volt systems and can work with heat strips up to 10 kilowatts. It is designed with a galvanized steel cabinet to resist corrosion.

Product Information

Standard Information

• Model: HAH15018
• Configuration: Floor Mounted

Technical Specifications

• Cooling Capacity: 1.5 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 10 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-410a
• Suction Line Size: 3/4 inch
• Voltage: 240
• Certifications: AHRI Certified and ETL Listed
• Blower Motor: Multi Speed
• Product Height: 45.75 inches
• Product Length: 22 inches
• Product Width: 19.66 inches
• Weight: 134 lbs
