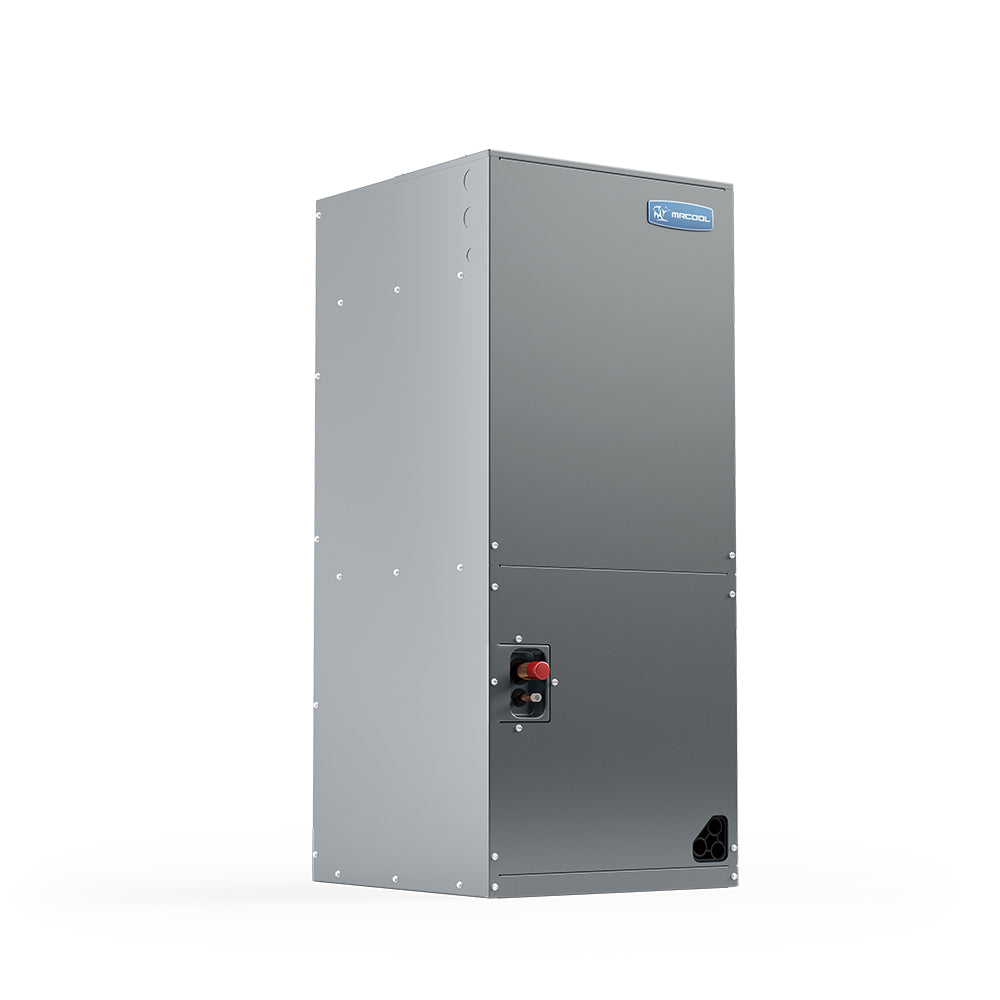

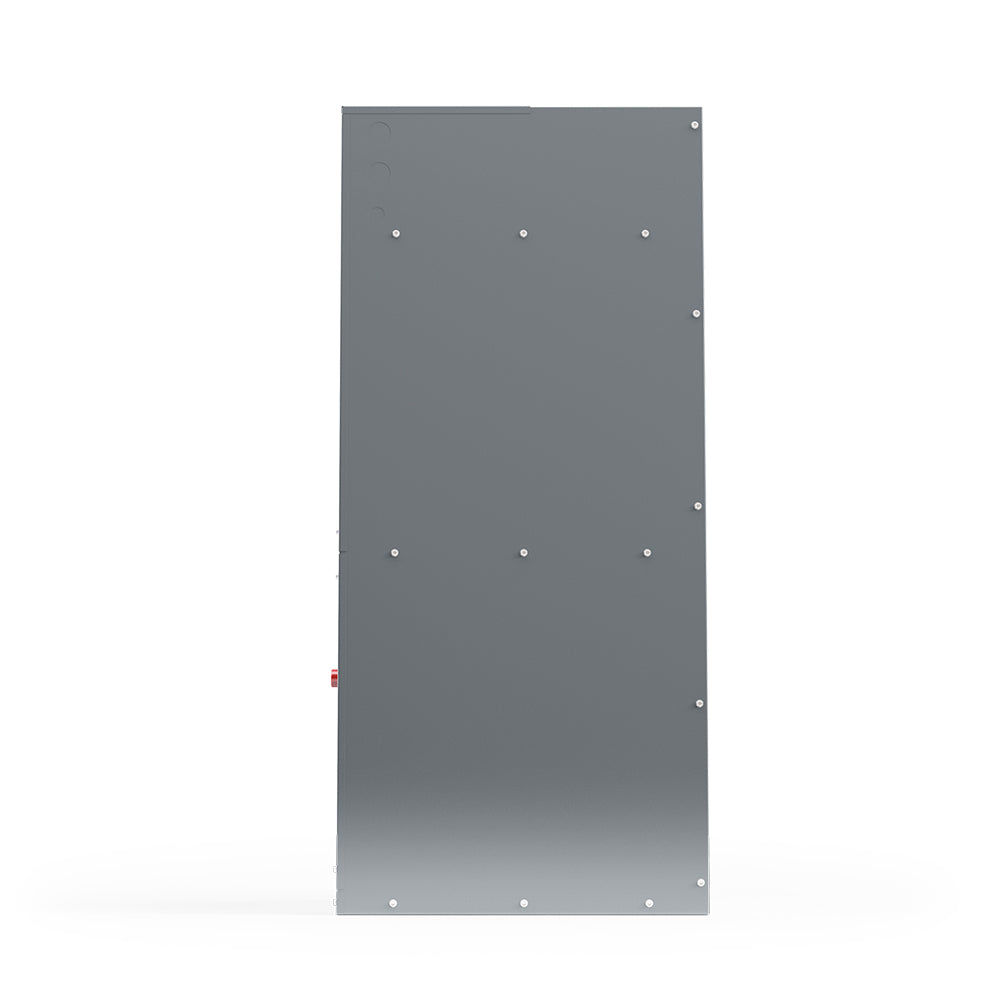

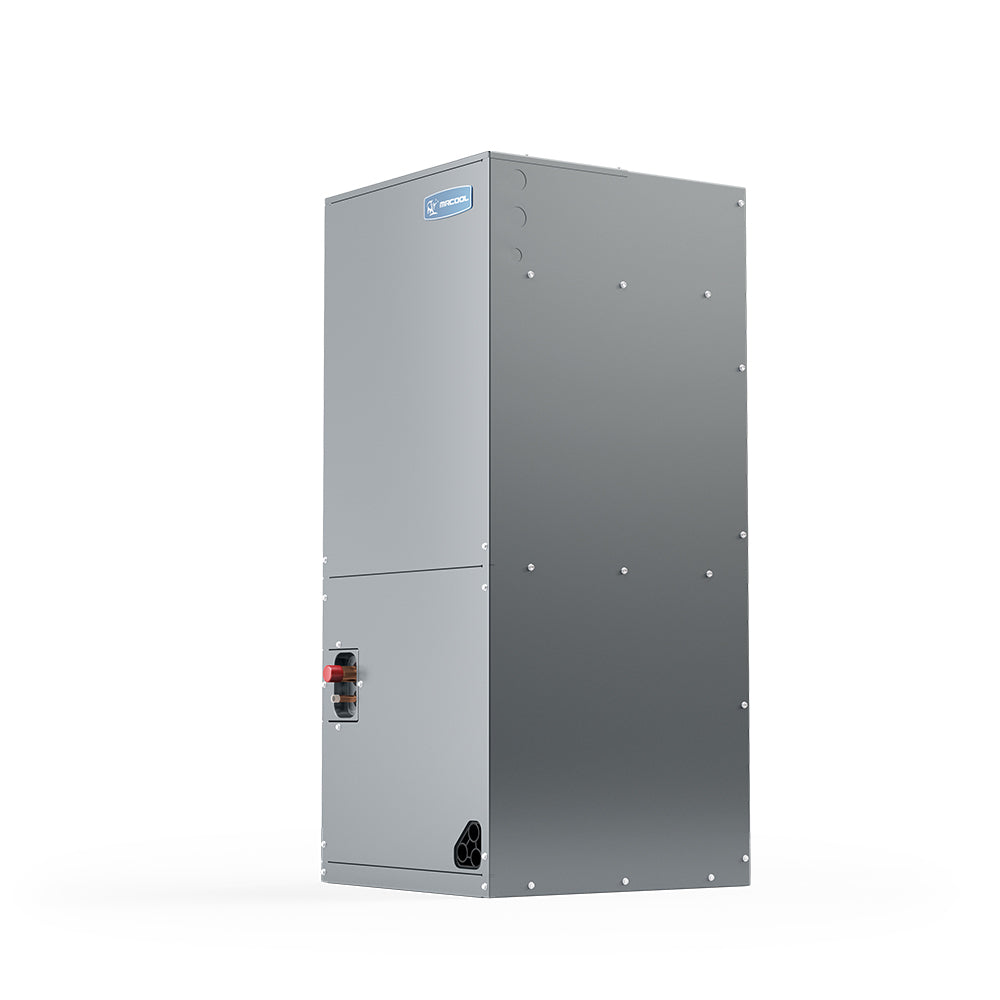

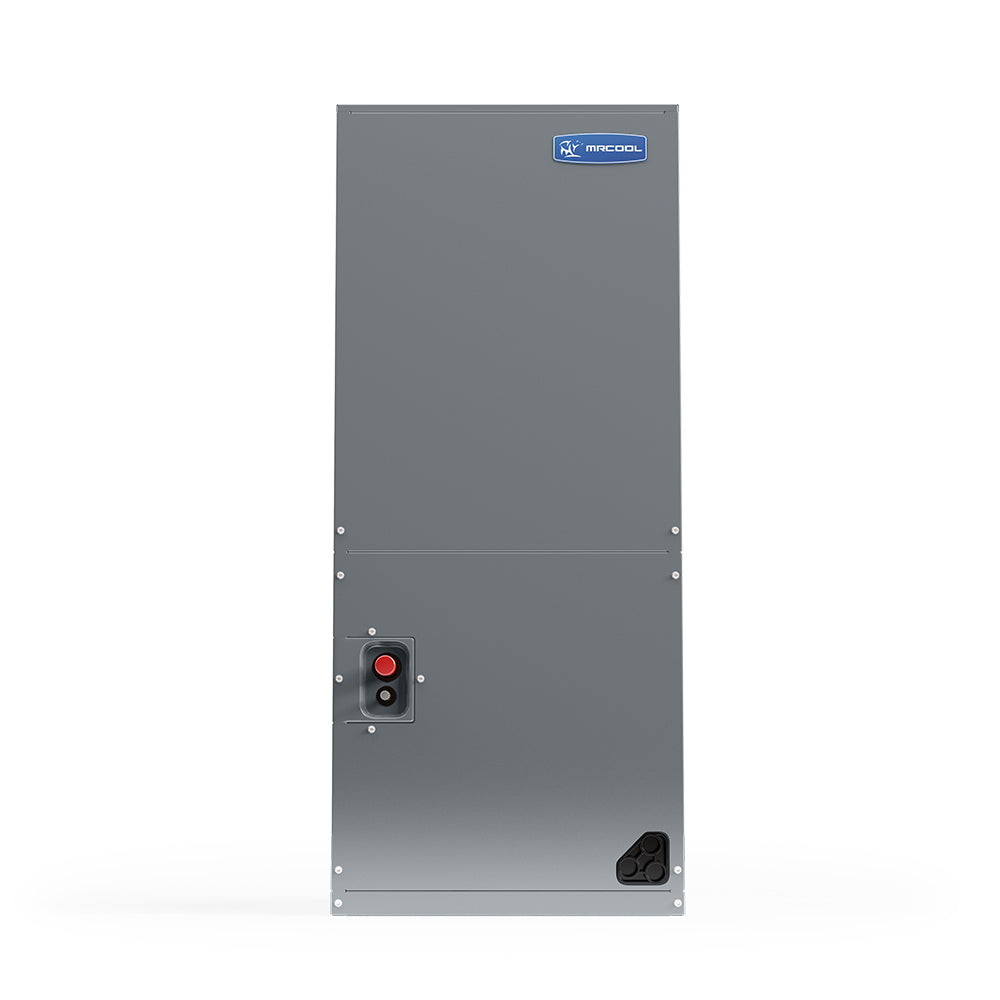

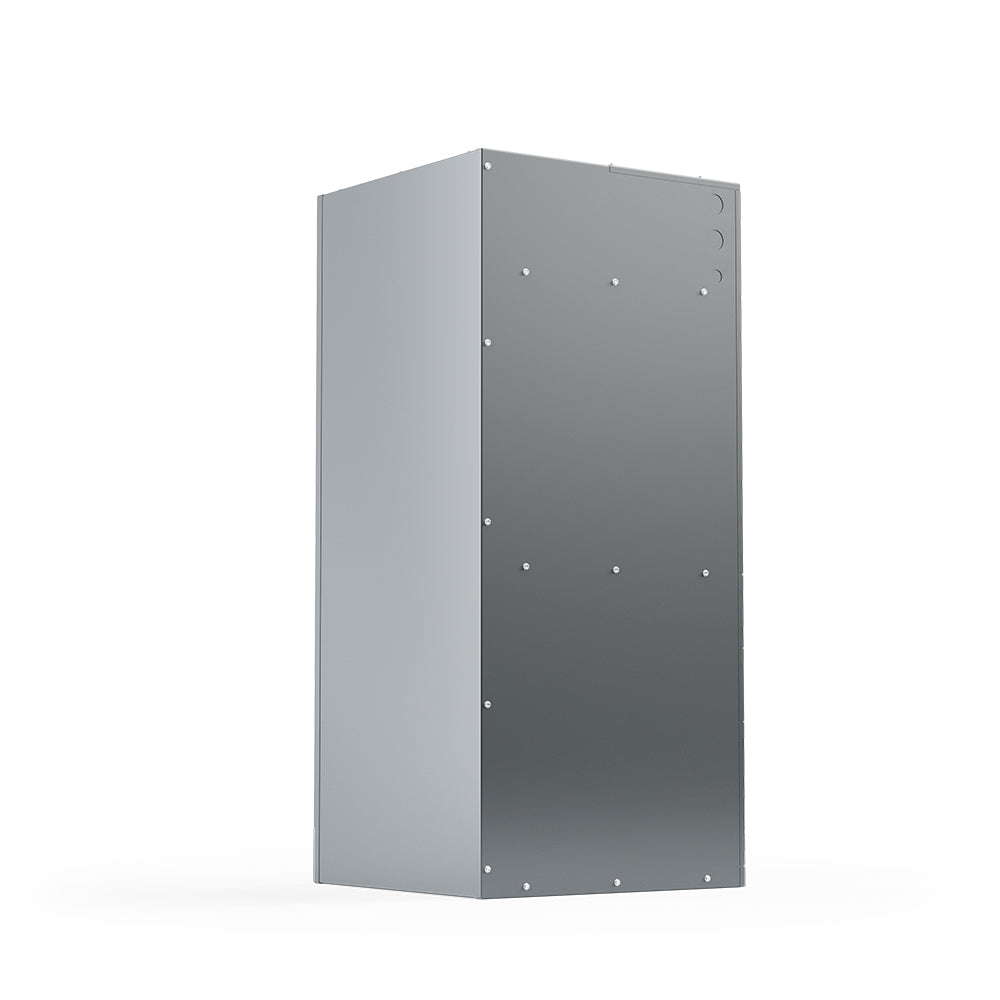

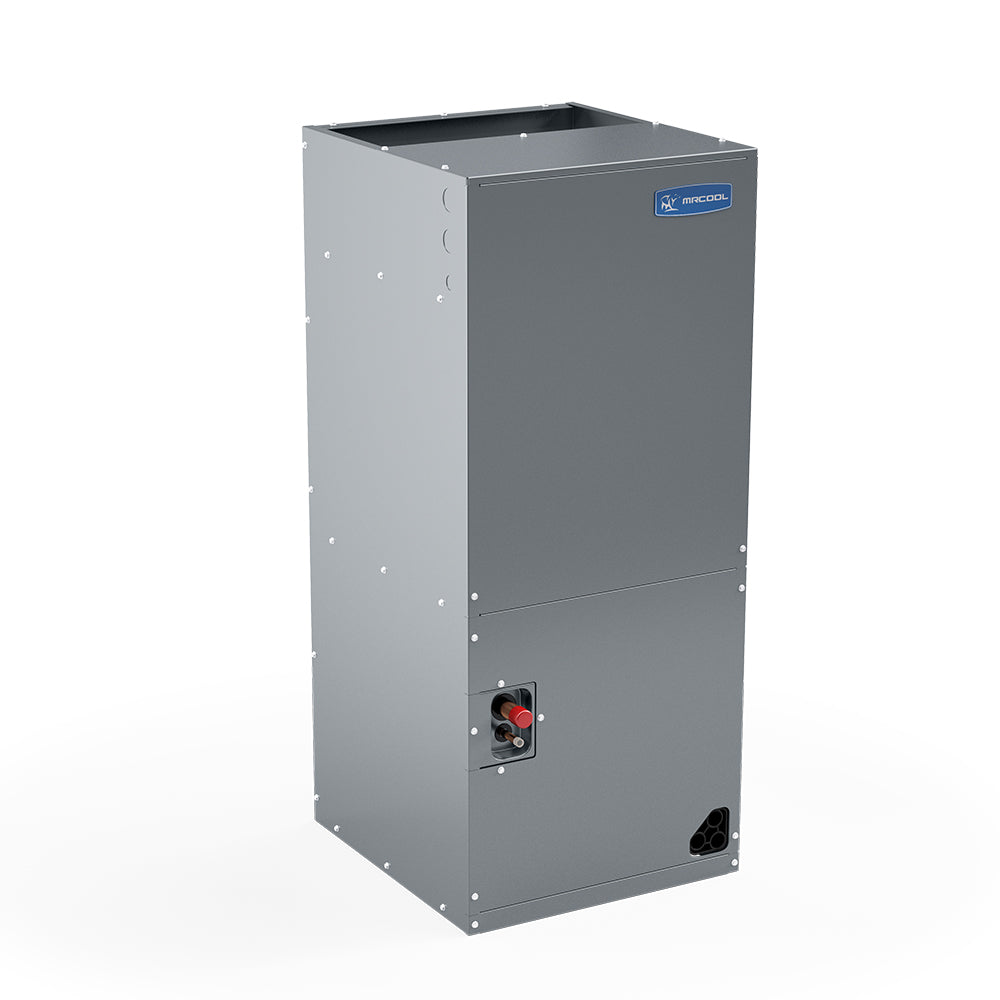

MRCOOL HAH14024 ProDirect 2 Ton 14 SEER Split System A/C Air Handler - Multiposition

The MRCOOL ProDirect 2 Ton 14 SEER Split System Air Handler is a versatile and efficient unit that can be installed in four different airflow directions, making it highly adaptable to your home’s needs. The unit uses an “A” shaped evaporator coil to extract discomfort from your home, and the three-speed direct drive blower motor disperses the purified air throughout your home. The removable filter ensures that the air you breathe is free of contaminants, providing you with crisp and clean air.

The unit is also equipped with an electric heat kit, which makes it even more accommodating. The corrosion-resistant galvanized steel cabinet protects the unit from damage, ensuring your comfort is never compromised. Additionally, the unit comes with a 10-year registered warranty, which covers any issues that may arise. To ensure optimal performance, it is recommended that the unit be installed by a qualified professional. The MRCOOL ProDirect 2 Ton 14 SEER Split System Air Handler is AHRI certified and ETL listed, making it a reliable and safe choice for your home.

Features

• Versatile and efficient unit that can be installed in four different airflow directions
• Uses an “A” shaped evaporator coil to extract discomfort from your home
• Three-speed direct drive blower motor disperses the purified air throughout your home
• Removable filter ensures that the air you breathe is free of contaminants
• Equipped with an electric heat kit
• Corrosion-resistant galvanized steel cabinet protects the unit from damage
• Comes with a 10-year registered warranty

Specifications

Product Dimensions	19 2/3"W x 22"D x 45 3/4"H
Product Weight	130 lbs
Unit Type	Air Handler
Configuration	Multi-Position: Vertical Upflow, Vertical Downflow, Horizontal
SEER	14
CFM	938/804/738
Cooling Capacity	24,000 BTU
Voltage	Requires a minimum of 208-230V/60HZ (please check your home meets this electrical requirement prior to purchase)
Phase	1
Cycle	60 Hz
Decibel Rating	37-42 dBA
Decibel Low	37 dBA
Decibel High	42 dBA
Number of Speeds	3 Speed
Blower Motor Speed	3 Speed
Blower Motor RPM	570/530/490
Filter Type	Replaceable
Certificates	ETL Listed AHRI
Warranty	10 Year Limited Warranty
