MRCOOL HAH060FEA MRCOOL 5 Ton PRODIRECT Series ECM Air Handler HAH060FEA

Product Description

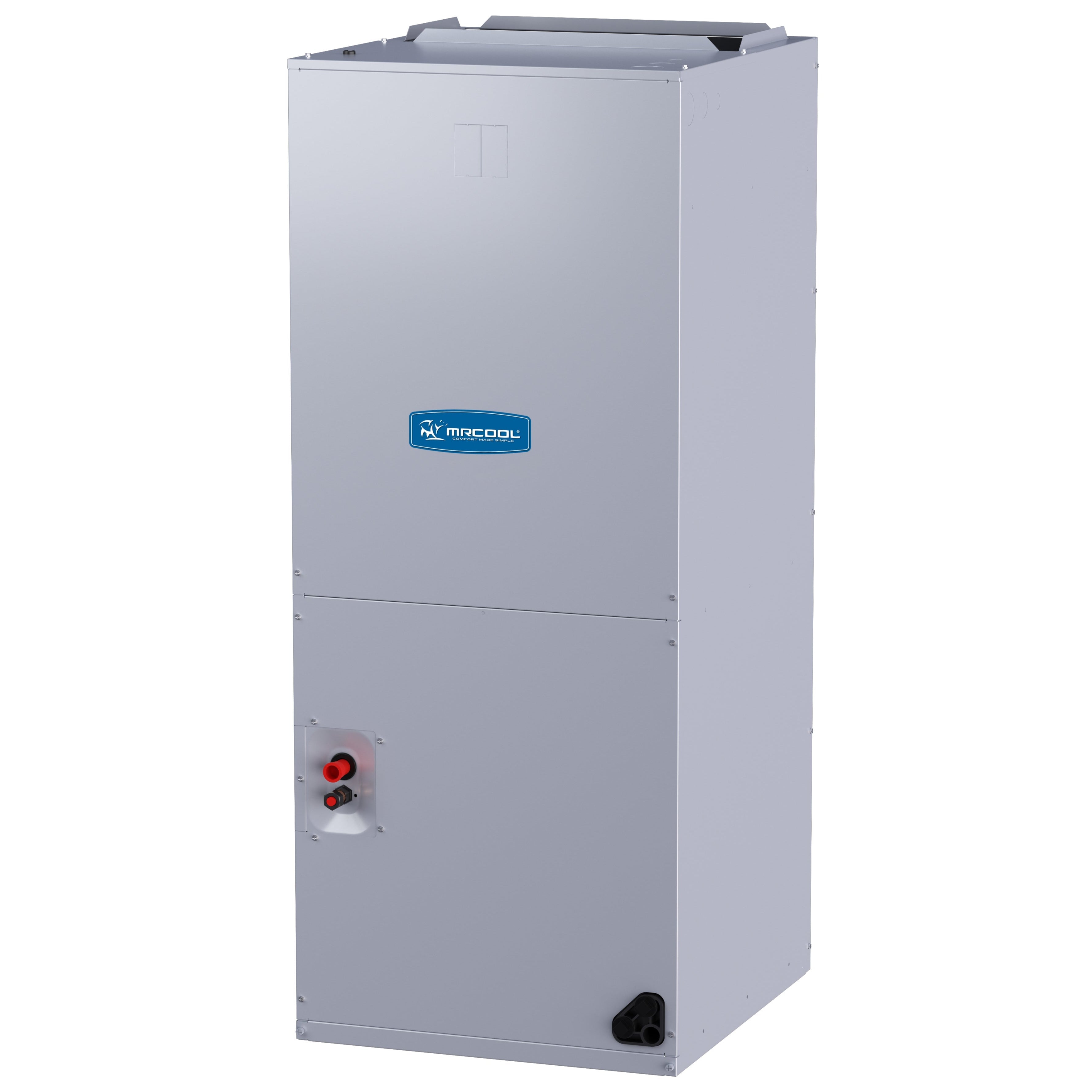

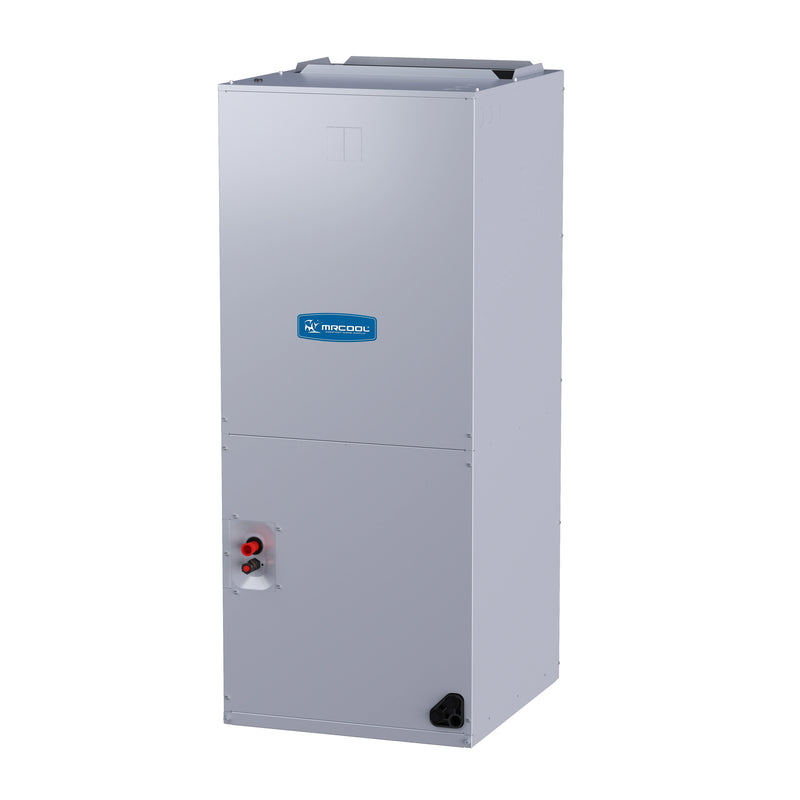

The MRCOOL PRODIRECT Series ECM Air Handler HAH060FEA is built for use in cooling and heat pump systems. This air handler includes a multi-speed ECM blower motor and features durable all-aluminum tubes and fins. The cabinet is designed to be factory-sealed, minimizing air leakage and maximizing efficiency. It can be installed in multiple positions, and it comes with horizontal and vertical condensate drain pans. Maintenance is facilitated by slide-out blower and coil components. Optional field-installed heat kits are available, adding flexibility to your HVAC setup. This unit is certified by AHRI and ETL.

• Multi-speed ECM blower motor included
• All-aluminum tubes and fins to resist corrosion
• Supports multi-positional installation

Product Highlights

This air handler features efficient design and flexible installation options suited for a variety of environments.

Product Information

Standard Information

• Brand: MRCOOL
• Model: HAH060FEA

Technical Specifications

• Cooling Capacity: 60000 BTU
• Tonnage: 5
• Input Voltage: 208/230V
• Phase: 1
• Frequency: 60 Hz
• Max Fuse Breaker: 15 A
• Min Circuit Ampacity: 5.7 A
• Refrigerant Type: R410a
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Blower Motor Type: ECM
• Blower Motor HP: 3/4
• Blower Motor RPM: 1050
• Auxiliary Heater Available: Yes
• Auxiliary Heater Sizes: 5, 7.5, 10, 15, 20
• Net Dimensions: 24 x 54 1/2 x 22 inches
• Net Weight: 159 lbs
• Certifications: AHRI Listed & ETL Certified
