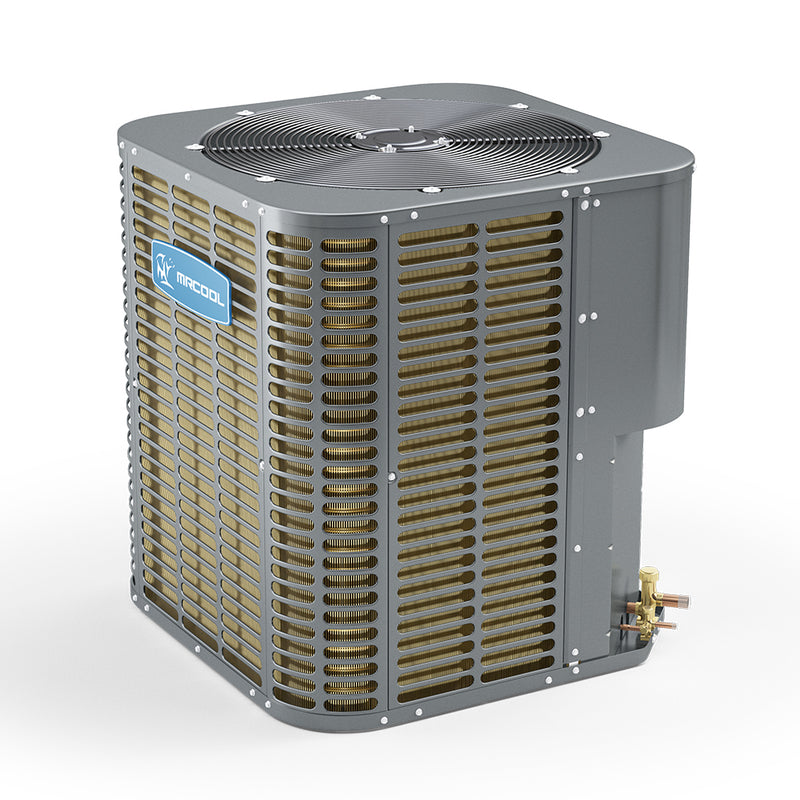

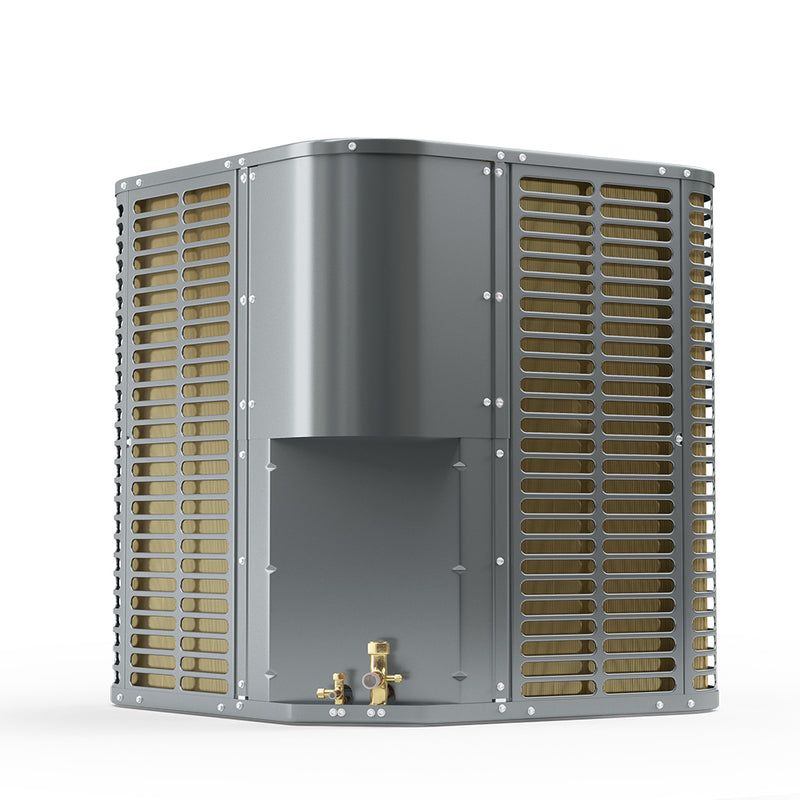

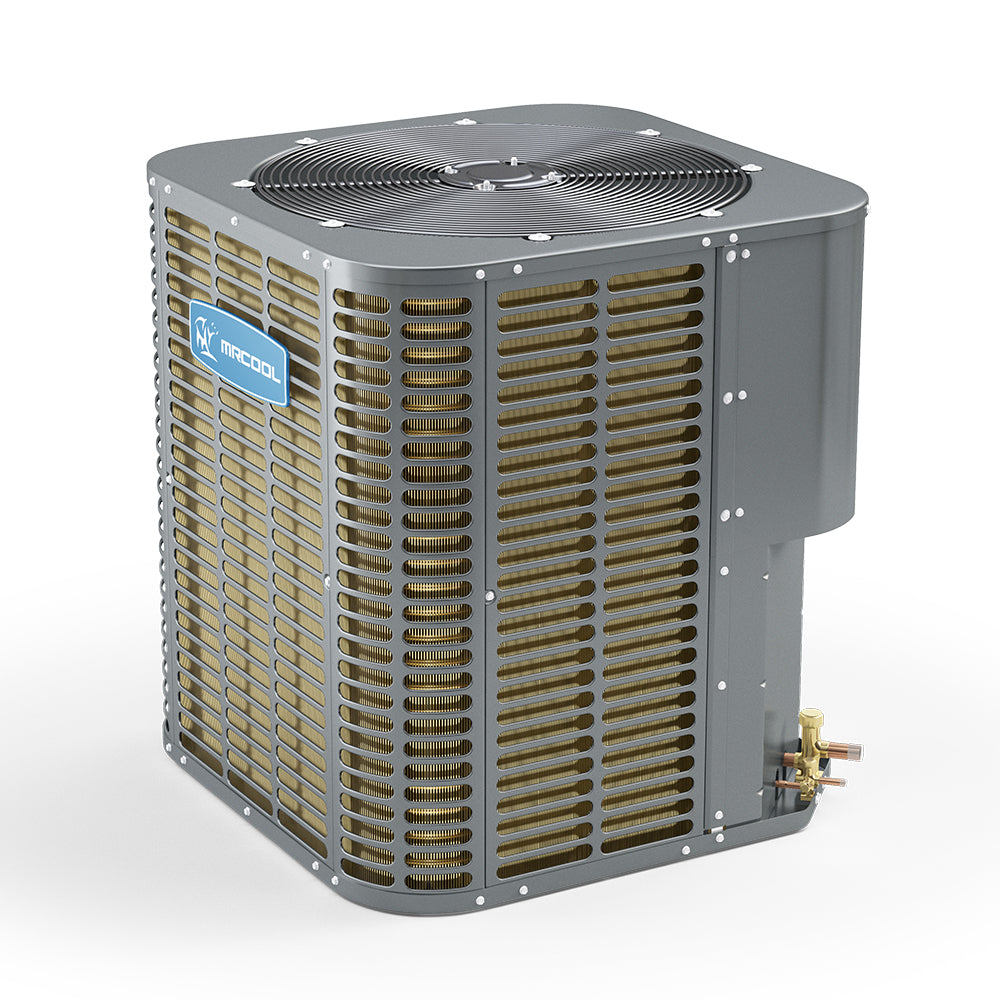

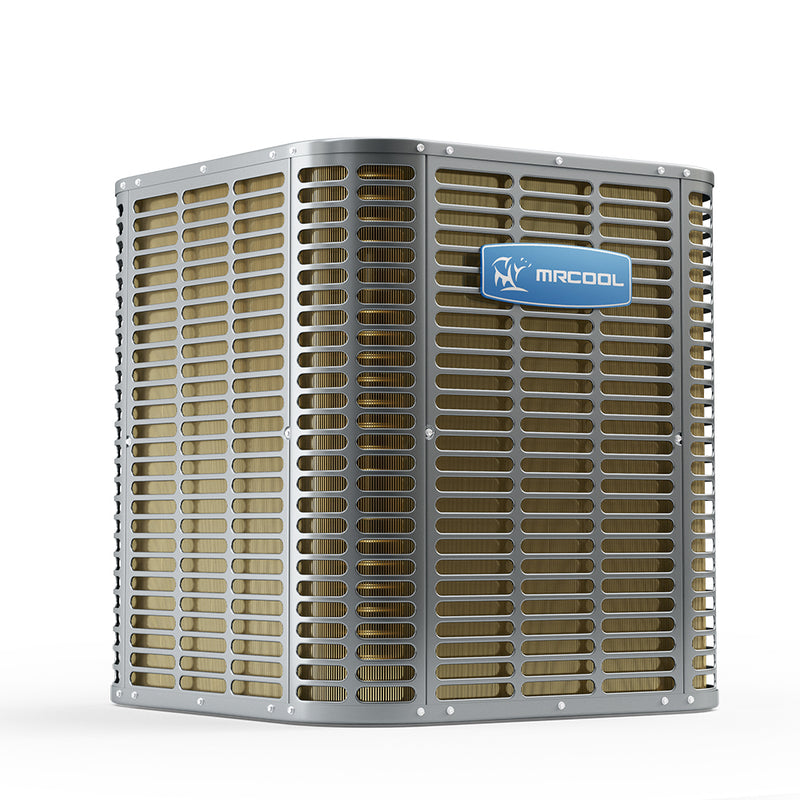

MRCOOL HAC14048 ProDirect 4 Ton 14 SEER Split System A/C Condenser

Product Description

The MRCOOL ProDirect 4 Ton 14 SEER Split System A/C Condenser, MPN HAC14048, is made for residential central split systems. It features a scroll compressor that helps process refrigerants efficiently. The unit is protected by a galvanized steel cabinet and has a Gold Fin coating on the coils, providing resistance to corrosion. This condenser is AHRI certified and ETL listed, designed to work with R-410A refrigerant.

• Units include a scroll compressor for efficient refrigerant processing.
• Constructed with a sturdy galvanized steel cabinet.
• Features Gold Fin coating for enhanced corrosion resistance.

Product Highlights

This condenser is reliable for home cooling. The design includes multiple features that help with performance and durability.

Product Information

Standard Information

• Brand: MRCOOL
• Model: HAC14048

Technical Specifications

• Cooling Capacity: 4 Ton
• Cooling Capacity BTU: 46000 BTU
• SEER: 14
• EER: 11.2
• Refrigerant Type: R-410A
• Refrigerant Volume: 148.15 oz
• Voltage: 230 V
• Phase: 1
• Cycle: 60 Hz
• Max Overcurrent Protection: 45 amps
• Max Fuse Breaker: 45 A
• Compressor Type: Scroll
• System Application Type: Central Split Systems
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Air Flow Direction: 4-way
• Number Of Speeds: 3 Speed
• Max Lineset Length: 66 ft max
• Decibel Rating: 63 dBA
• Certifications: AHRI Certified & ETL listed
• Warranty: 10 Year Parts, 10 Year Compressor
• Product Height: 33 inches
• Product Length: 29 inches
• Product Width: 29 inches
• Weight: 196 lbs
