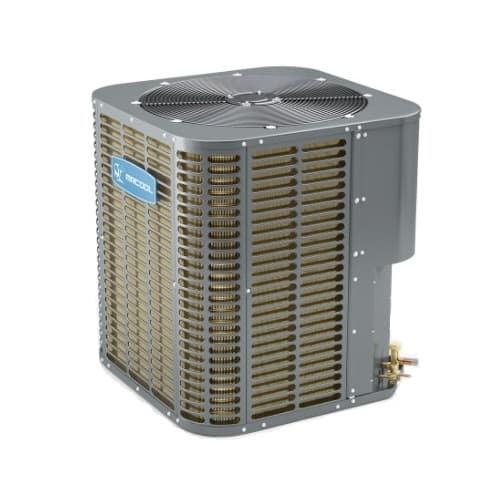

MRCOOL HAC14024 ProDirect 2 Ton 14 SEER Split System A/C Condenser HAC14024

Product Description

The MRCOOL ProDirect 2 Ton 14 SEER Split System A/C Condenser, model HAC14024, is designed for effective home cooling. This unit operates with a rotary compressor to circulate R-410A refrigerant efficiently. The piston flow control device enhances performance by regulating refrigerant flow, leading to improved system efficiency. Built with a galvanized steel cabinet, it protects internal components from damage. The Gold Fin coating ensures the coils resist corrosion, extending the lifespan of the unit. This system is AHRI certified and ETL listed, confirming its quality and performance standards.

• Equipped with a rotary compressor for reliable refrigerant compression.
• Constructed with a sturdy galvanized steel cabinet for durability.
• Features Gold Fin technology for enhanced corrosion resistance.

Product Highlights

The MRCOOL HAC14024 is perfect for central split system applications. It offers reliable cooling through advanced technology and materials.

Product Information

Standard Information

• Model: HAC14024
• Cooling Capacity: 2 Ton

Technical Specifications

• Cooling Efficiency: 14 SEER
• Voltage: 230 V
• Electrical Phase: 1-Phase
• Refrigerant Type: R-410A
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Compressor Motor Type: Rotary
• Max Overcurrent Protection: 20 amps
• Weight: 119 lbs
• Air Flow Direction: 4-way
• Number Of Speeds: 3 Speed
• Max Lineset Length: 50 ft
• Compressor: Single Stage
• System Application Type: Central Split Systems
• Warranty: 10 Year Parts, 10 Year Compressor
• Certifications: AHRI Certified & ETL listed
• EER: 12.2
• CFM: 1700
• Cycle: 60 Hz
• Max Fuse Breaker: 20 A
• Refrigerant Volume: 93.48 oz
• Decibel Rating: 60 dBA
• Compressor Fan Motor RPM: 970
• Auxiliary Heater Available: Yes
• Registered Warranty: 10 Year Limited Warranty
• Proposition 65 Warning: Yes
• Net Weight: 115 lbs
• Gross Dimensions: 23.4 x 26.1 x 23.4 inches
• Coil Construction: A-shaped coils with copper tubing and aluminum fins
• Gold Fin Condenser: Corrosion-resistant design
