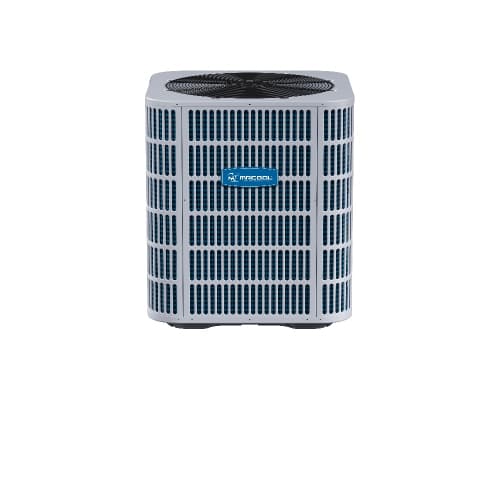

MRCOOL HAC13036FA MRCOOL 3 Ton 13.4 SEER ProDirect Series Air Conditioner HAC13036FA

Product Description

The MRCOOL 3 Ton 13.4 SEER ProDirect Series Air Conditioner is a key component for efficient cooling in residential settings. This model utilizes R410A refrigerant, contributing to an environmentally friendly operation. With a SEER rating of up to 13.4, it delivers optimal energy efficiency.

• Features durable copper tubing and aluminum fins for effective heat exchange.
• Includes 76 dB sound control for quieter operation.
• AHRI certified and ETL listed for reliability.

Product Highlights

This air conditioner provides robust cooling for spaces requiring up to 36,000 BTU. It integrates a compact design for ease of installation and maintenance. Additionally, the unit comes with accessible service valves and gauge ports.

Product Information

Standard Information

• Cooling Capacity: 36000 BTU
• Refrigerant: R410A

Technical Specifications

• SEER: 13.4
• Voltage: 208/230-1-60
• Compressor Type: Rotary
• Motor HP: 1-1/3
• Motor Type: ECM
• Sound Level: 76 dB
• Liquid Line: 3/8 inches
• Suction Line: 3/4 inches
• Max. Fuse Size: 35 A
• Min. Circuit Amps: 21.1 A
• Dimensions: 29.13 inches x 29.13 inches x 24.94 inches
• Certifications: AHRI certified and ETL listed
• Design: Compact for installation
• Condenser: Uses inner-groove copper tubes and aluminum fins
• Grille: Wire fan discharge for airflow
