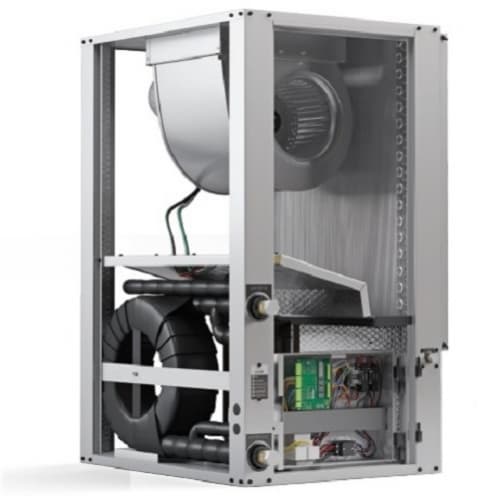

MRCOOL GCHPD048TGTANDR GeoCool 48K Downflow Two-Stage Heat Pump

Product Description

The MRCOOL GCHPD048TGTANDR is a heat pump from the GeoCool series. It is designed for downflow air circulation and features a two-stage compressor. The unit operates on a 230V, 1-Phase, 60Hz electrical supply. This model includes a CuNi coil and comes with an integrated heater. The heating capacity ranges from 45,001 to 50,000 BTU, suitable for spaces between 2,000 and 2,400 square feet.

• Downflow air circulation design.
• Two-stage compressor.
• Operates on a 230V, 1-Phase, 60Hz electrical supply.

Product Highlights

This unit provides efficient heating and cooling for larger areas, making it a great choice for commercial and residential applications.

Product Information

Standard Information

• Brand: MRCOOL
• Model: GCHPD048TGTANDR

Technical Specifications

• AHRI Number: 204346874
• Dimensions: 32.00 inches x 25.75 inches x 58.50 inches
• Weight: 345.00 lb
• Air Flow Direction: Downflow
• Coverage Area: 2,000 - 2,400 Sq Ft
• Blower Motor: Variable Speed
• Cooling Capacity: 4 Ton
• EER: 33
• Heat Pump Efficiency (COP): 5.0
• HWG Connection: 1/2 inch
• Loop Connection: 1 inch
• Max Overcurrent Protection: 60 amps
• Voltage: 240
• Warranty: 10 Year
