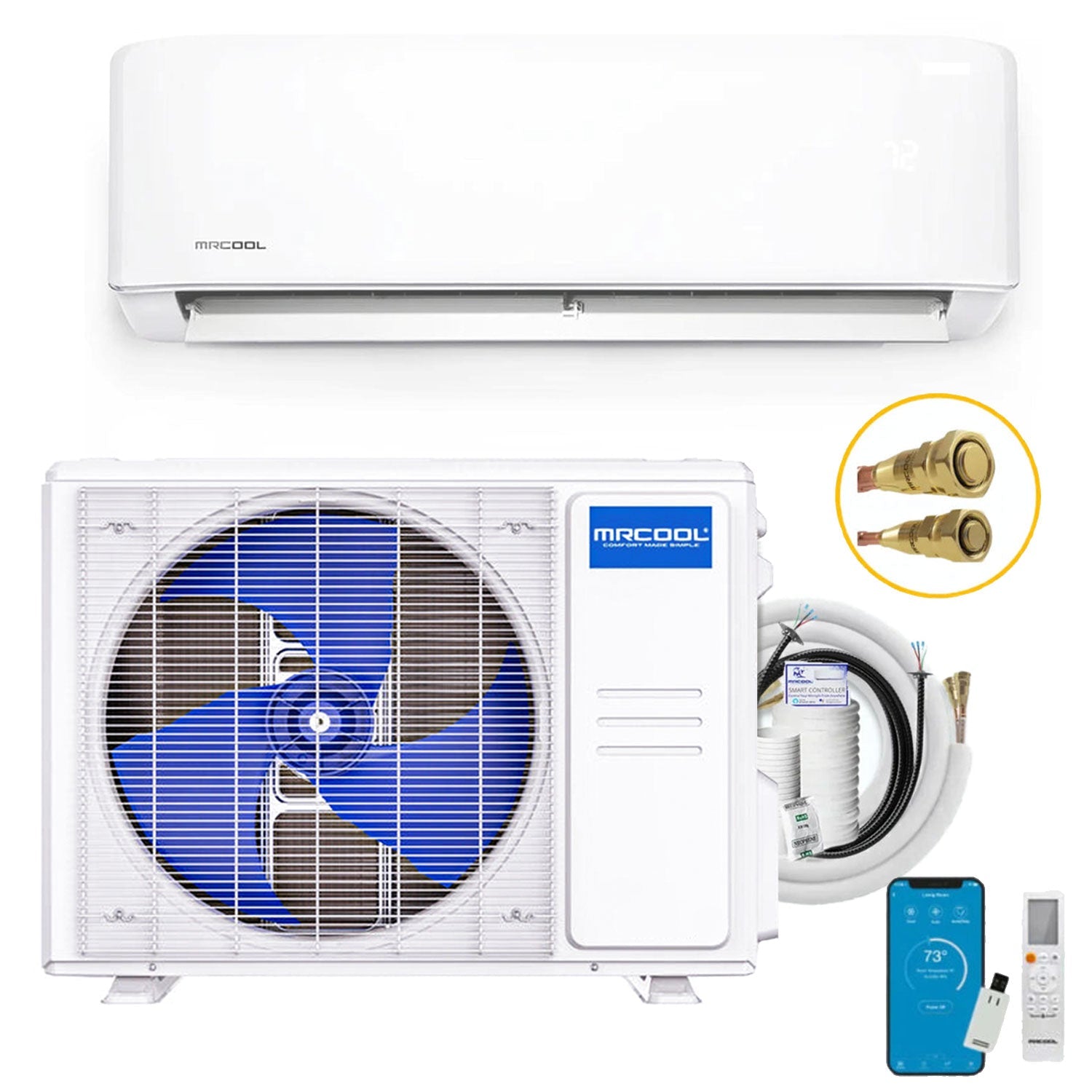

MRCOOL DIY 5th Gen 24000 BTU Ductless Mini Split Heat Pump and Air Conditioner 230V R454B Easy Install Includes 25 Ft Line Set WiFi Enabled

No HVAC license or vacuum pump required - true DIY install. Includes pre-charged 25 ft QuickConnect line set and protected DIYPRO cable.

The MRCOOL DIY 5th Generation 24,000 BTU Mini Split offers reliable year-round climate control for larger spaces up to 1,000 sq. ft. With an easy, tool-free installation process, this system comes equipped with a 25 ft QuickConnect line set pre-charged with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO cable further simplifies setup and adds protection against environmental exposure and wildlife damage.

Engineered for both comfort and performance, this ductless system delivers a 22.7 SEER2 rating and 9.6 HSPF2-4 efficiency. It supports full Wi-Fi integration and can be controlled via smartphone app or voice commands using Amazon Alexa or Google Assistant. Smart features like Follow Me and Dry Mode adapt automatically to your preferences while helping to reduce humidity and energy waste.

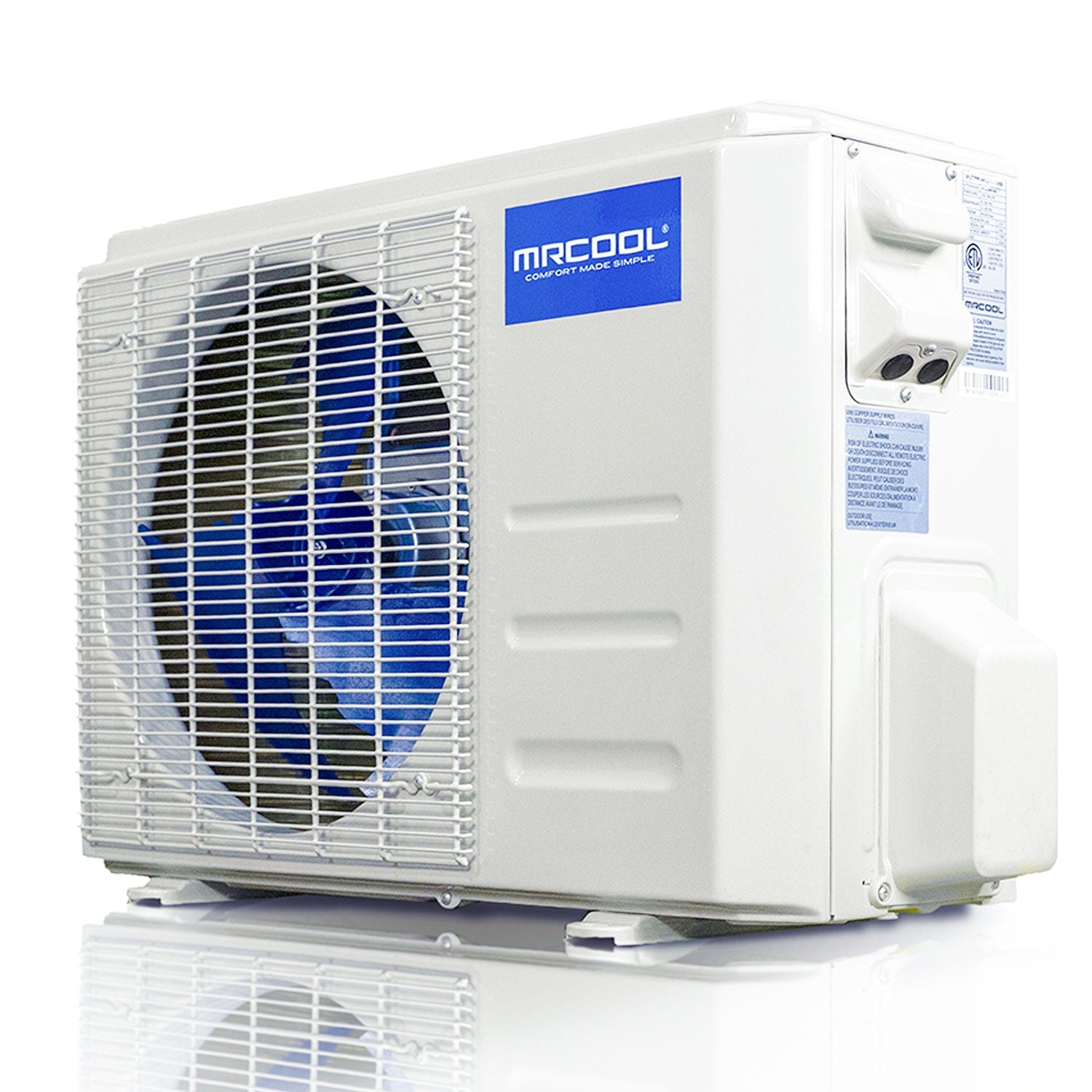

The corrosion-resistant Gold Fin condenser ensures lasting performance, even in coastal environments. Certified for performance and safety, this system is Intertek-listed (5031495) and backed by MRCOOL’s Limited Lifetime Warranty, a 7-Year Compressor Warranty, and a 5-Year Parts Warranty.

Product Highlights
• Easy DIY installation - no vacuuming or licensed installer required
• 25 ft QuickConnect pre-charged line set and DIYPRO cable included
• 22.7 SEER2 and 9.6 HSPF2-4 for energy-efficient performance
• Ideal for spaces up to 1,000 sq. ft.
• Built-in Wi-Fi with voice and app control options
• R-454B refrigerant for lower environmental impact
• Gold Fin condenser for coastal durability
• Smart features: Follow Me, Dry Mode, Auto Cool, Quiet Mode
• Industry-leading warranty: Lifetime (with registration), 7-Year Compressor, 5-Year Parts

Specifications
• BTU Capacity: 24,000
• Voltage: 230V
• SEER2: 22.7
• EER2: 12.7
• HSPF2-4: 9.6
• HSPF2-5: 7.1
• Coverage Area: 750-1,000 sq. ft.
• Installation: DIY - no tools or vacuuming needed
• Refrigerant: R-454B (67.37 oz pre-charged)
• Line Set Length: 25 ft included (Max 164 ft)
• Wi-Fi Enabled: Yes
• Control: SmartHVAC App, Remote, Alexa, Google Assistant
• Indoor Noise: as low as 20.0 dB
• Outdoor Noise: 58.5 dB

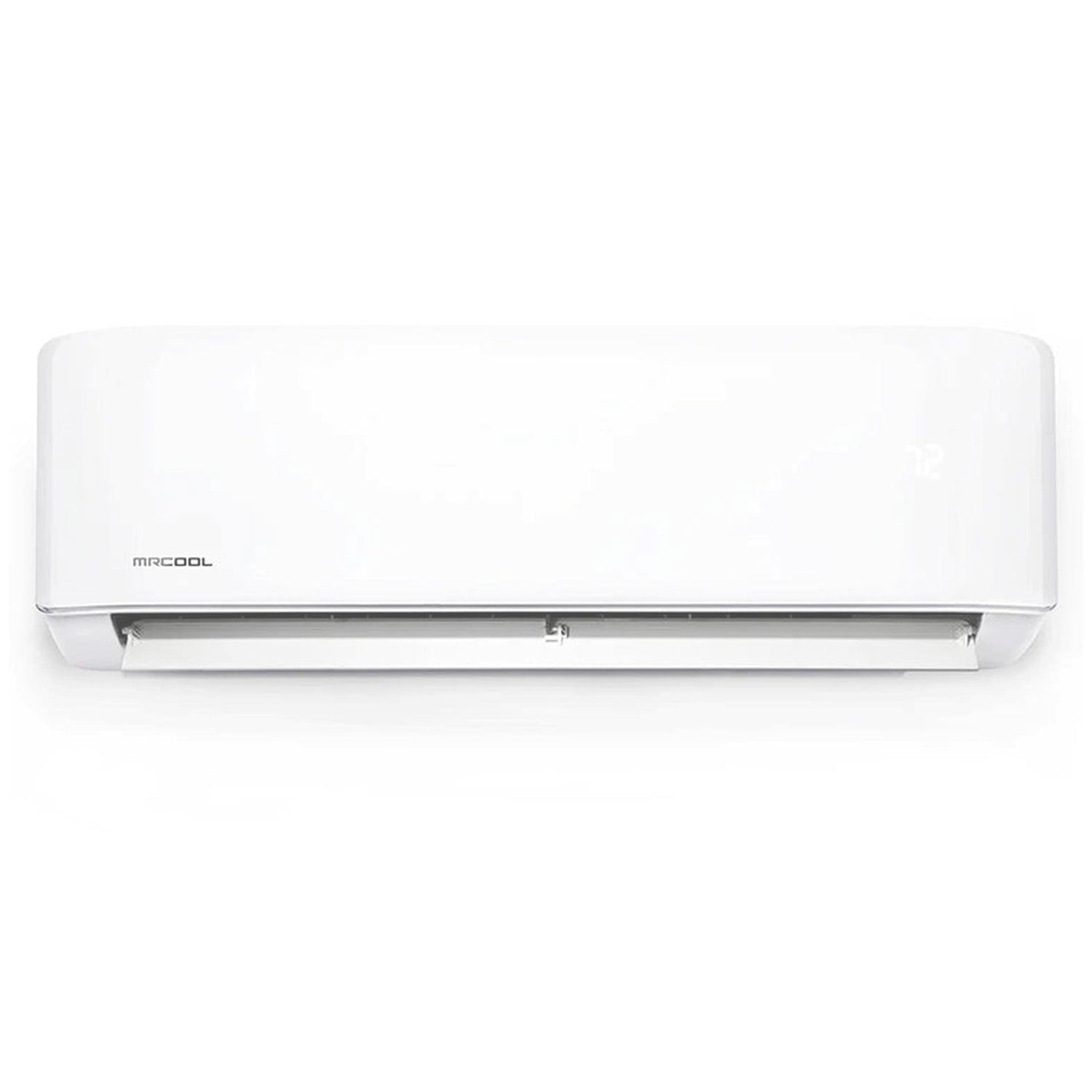

• Indoor Dimensions (WxDxH): 42.52 x 8.90 x 13.19 in
• Outdoor Dimensions (WxDxH): 37.24 x 16.14 x 31.89 in
• Piping: 3/8 in (liquid) x 5/8 in (gas)
• Electrical: Max Breaker 25A, Min Circuit Ampacity 24A
• Certifications: UL, ETL, AHRI, Energy Star, Intertek (5031495)
• Warranty: 7-Year Compressor, 5-Year Parts, Limited Lifetime with Care Program
