MRCOOL CENTRAL-36-HP-MUAH230A00 MRCOOL Central Ducted Hyper Heat Air Handler

Product Description

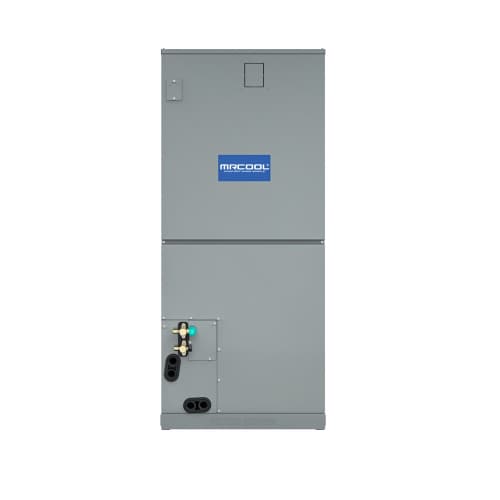

The MRCOOL Central Ducted Hyper Heat Air Handler, model CENTRAL-36-HP-MUAH230A00, is a versatile unit for managing home heating and cooling. Crafted from painted galvanized steel, this air handler features a side-discharge design that enhances installation flexibility. It comes with a slide-out blower and removable filters, ensuring easy maintenance. This unit is compatible with the MRCOOL No-Vac Quick Connect Line Set and uses R-410A refrigerant for efficient cooling.

• Up to sixteen SEER2 rating and up to nine point five HSPF2-4 rating.
• Works with Quick Connect, Flared, or Sweat line set connections.
• Allows for upflow, downflow, and horizontal installations.

Product Highlights

The MRCOOL Hyper Heat air handler includes a wired thermostat and a wireless remote featuring Follow Me functionality, making temperature control easy. A self-diagnostics panel aids in troubleshooting, and an optional heat kit can be purchased separately for enhanced heating capabilities.

Product Information

Standard Information

• Model: CENTRAL-36-HP-MUAH230A00
• Country of Origin: Not specified

Technical Specifications

• Cooling Capacity: Three Ton
• Heating Capacity: Forty Thousand Btu
• Refrigerant: R-410A
• Voltage: Two Hundred Eight/Two Hundred Thirty volts
• Electrical Phase: One-Phase
• Max Overcurrent Protection: Fifteen amps
• Liquid Line Size: Three eighths inch
• Suction Line Size: Three fourths inch
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
• Heat Strip Compatibility: Up to Fifteen kW
• Net Depth: Twenty one point zero two inches
• Net Height: Forty nine point zero two inches
• Net Width: Twenty one point zero two inches
• Weight: One hundred fifty four point one pounds
• Warranty: Ten Year Parts
• SEER2 Rating: Up to sixteen
• HSPF2-4 Rating: Up to nine point five
• CFM: Various ratings depending on configuration
• Max Fuse Breaker: Fifteen
• Min Circuit Ampacity: Five
• Max Lineset Length: Two hundred thirteen point twenty five feet
• Height: Indoor - Forty nine point zero two inches | Outdoor - Fifty two point forty eight inches
• Width: Indoor - Twenty one point zero two inches | Outdoor - Thirty seven point forty eight inches
• Depth: Indoor - Twenty one point zero two inches | Outdoor - Sixteen point thirty four inches
• Max Breaker Size: Fifty
• Min Breaker Size: Forty one
