MRCOOL CENTRAL-24-HP-MUAH230A00 Hyper Heat Central Ducted System

Product Description

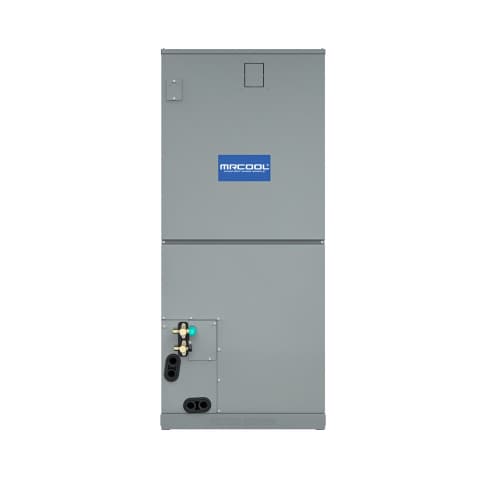

The MRCOOL CENTRAL-24-HP-MUAH230A00 is a central ducted hyper heat split system that offers both cooling and heating capabilities. This system includes an air handler and a heat pump condenser. It is designed for installation with ducted setups, making it suitable for various configurations, including upflow, downflow, or horizontal.

• Cooling and heating capacity of twenty-four thousand BTU.
• Uses R-410A refrigerant for efficient operation.
• Equipped with a variable speed DC inverter for enhanced performance.

Product Highlights

This hyper heat system is AHRI certified, ensuring compliance with industry standards for efficiency and performance. Its robust construction features painted galvanized steel, enhancing the durability and longevity of the unit.

Product Information

Standard Information

• Manufacturer: MRCOOL
• MPN: CENTRAL-24-HP-MUAH230A00

Technical Specifications

• Unit Type: Central Ducted Hyper Heat
• Operating Mode: Cooling & Heating
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 24,000 BTU
• SEER2: 17.4
• HSPF2: 8
• EER2: 11.7
• Refrigerant Type: R410A
• Input Voltage: 208/230V
• Electrical Phase: 1-Phase
• Max Breaker Size: 35 amps
• Min Circuit Ampacity: 20.5 amps
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Configuration: Floor Mounted
• Product Height: 45 inches
• Product Length: 21 inches
• Product Width: 17.5 inches
• Weight: 127.43 lbs
• AHRI Number: 211497151
• Decibel Level: 39 dBA
