Description

Product Description

Mrcool A-09-HP-115D-O is a 5th Generation Advantage single-zone ductless mini split heat pump and air conditioner delivering 9,000 BTU cooling on a 115V circuit and using low-GWP R454B refrigerant. The system includes a precharged 16 ft line set, inverter-driven compressor, and built-in WiFi Smart HVAC controller. It is rated 21.5 SEER2, supports low-ambient cooling to 5°F, and is intended for licensed professional installation.

  • 9,000 BTU cooling / 10,000 BTU heating; single zone, 0.75 ton capacity; coverage approximately 400 sq ft
  • High efficiency: 21.5 SEER2, EER2 12.5, HSPF2 9.0 with variable-speed DC inverter compressor
  • 115V | 1 phase | 60 Hz electrical; uses R454B refrigerant; includes 16 ft precharged line set and WiFi Smart HVAC control; designed for professional installation

Product Highlights

Single-zone 9,000 BTU ductless heat pump; 21.5 SEER2 efficiency; 115V R454B system with 16 ft precharged line set; professional installation required.

Product Information

Standard Information

  • Brand: MRCOOL
  • Manufacturer Part Number: A-09-HP-115D-O
Technical Specifications
Brand
MRCOOL
Manufacturer Part Number
A-09-HP-115D-O
Model
A-09-HP-115D-O
Product Family
Advantage 5th Gen
Cooling Capacity
9,000 BTU
Heating Capacity
10,000 BTU
Tonnage
0.75 Ton
SEER2
21.5
EER2
12.5
HSPF2
9.0
Refrigerant
R454B
Refrigerant Charge
1.35 lbs (pre-charged for 24.6 ft line set) - NOTE: product includes 16 ft precharged line set; additional charge guidance may be provided by manufacturer for longer runs
Liquid Line Size
1/4"
Suction Line Size
3/8"
Electrical
115V | 1 Phase | 60 Hz
Max Breaker Size
20 Amps
Min Breaker Size
18 Amps
Coverage Area
Approximately 400 sq ft
Min/Max Outdoor Temperature (Heating)
5°F to 122°F
Min/Max Outdoor Temperature (Cooling)
5°F to 122°F
Sound Level (Outdoor)
~52.5 dBA
Sound Level (Indoor)
~33 to 43 dBA
Package Includes

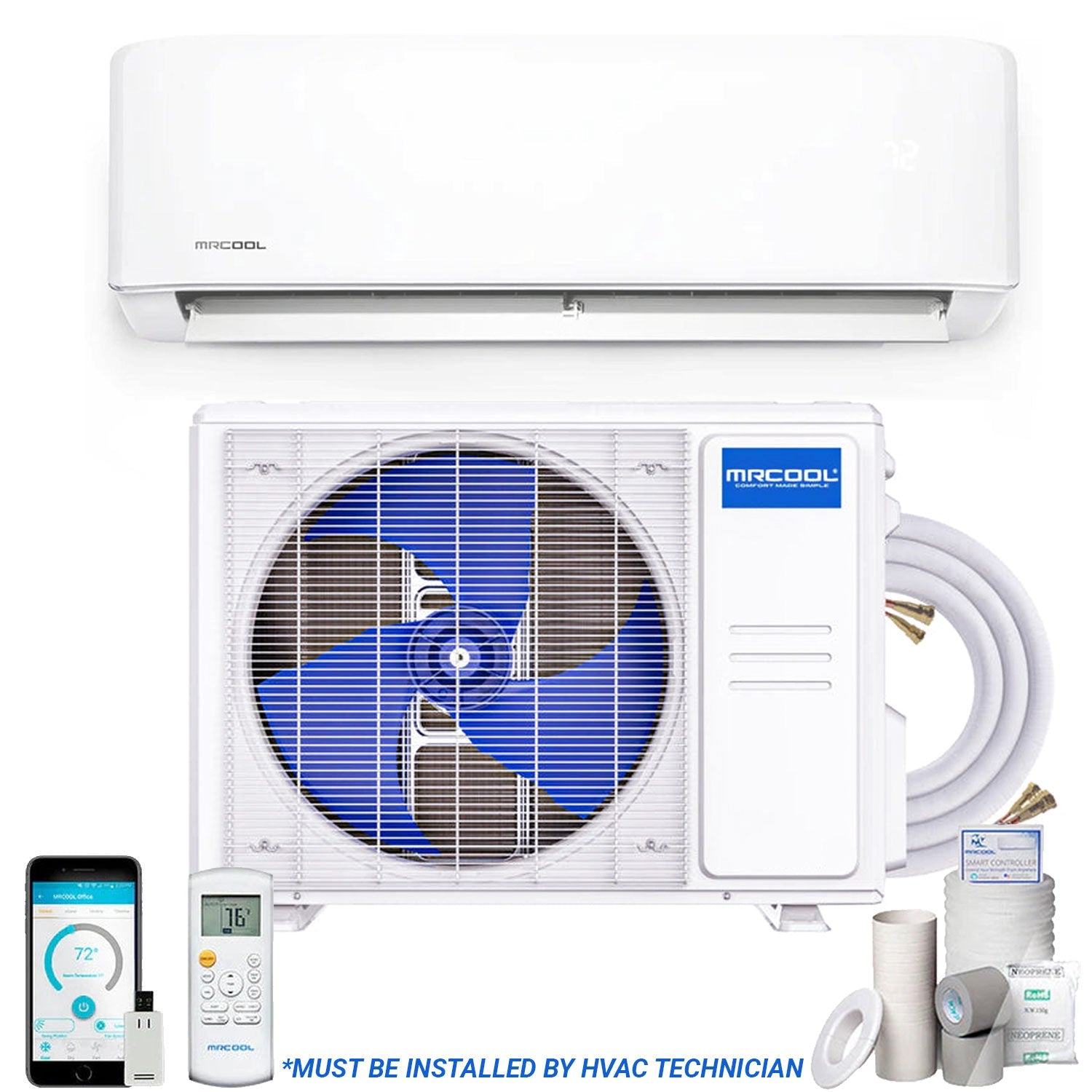

16 ft precharged line set; 9,000 BTU inverter condenser; 115V wall-mounted air handler with WiFi module; remote control; manuals
Certifications
UL listed; CSA listed; ETL listed; AHRI certified; Energy Star certified
AHRI Certificate Number
216032581
Intended Installation
Professional licensed HVAC installation
Condenser Dimensions (HxWxD)
21.85 in x 30.12 in x 11.93 in
Air Handler Dimensions (HxWxD)
11.42 in x 28.43 in x 7.36 in
Zone Compatibility
Single Zone
Features
Inverter-driven compressor; WiFi Smart HVAC controller; low-GWP refrigerant; Gold Fin condenser coating; low-ambient cooling to 5°F
