Mrcool A-36-HP-230D-O Advantage 5th Gen 36000 BTU Ductless Mini Split Heat Pump and Air Conditioner (16 Ft Line Set)

MRCOOL
Brand: MRCOOL
SKU: A-36-HP-230D-O
Availability: In Stock

Ships via freight in 1-3 business days
$2,577.62
$2,577.62
LTL Delivery

This product weighs 215 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

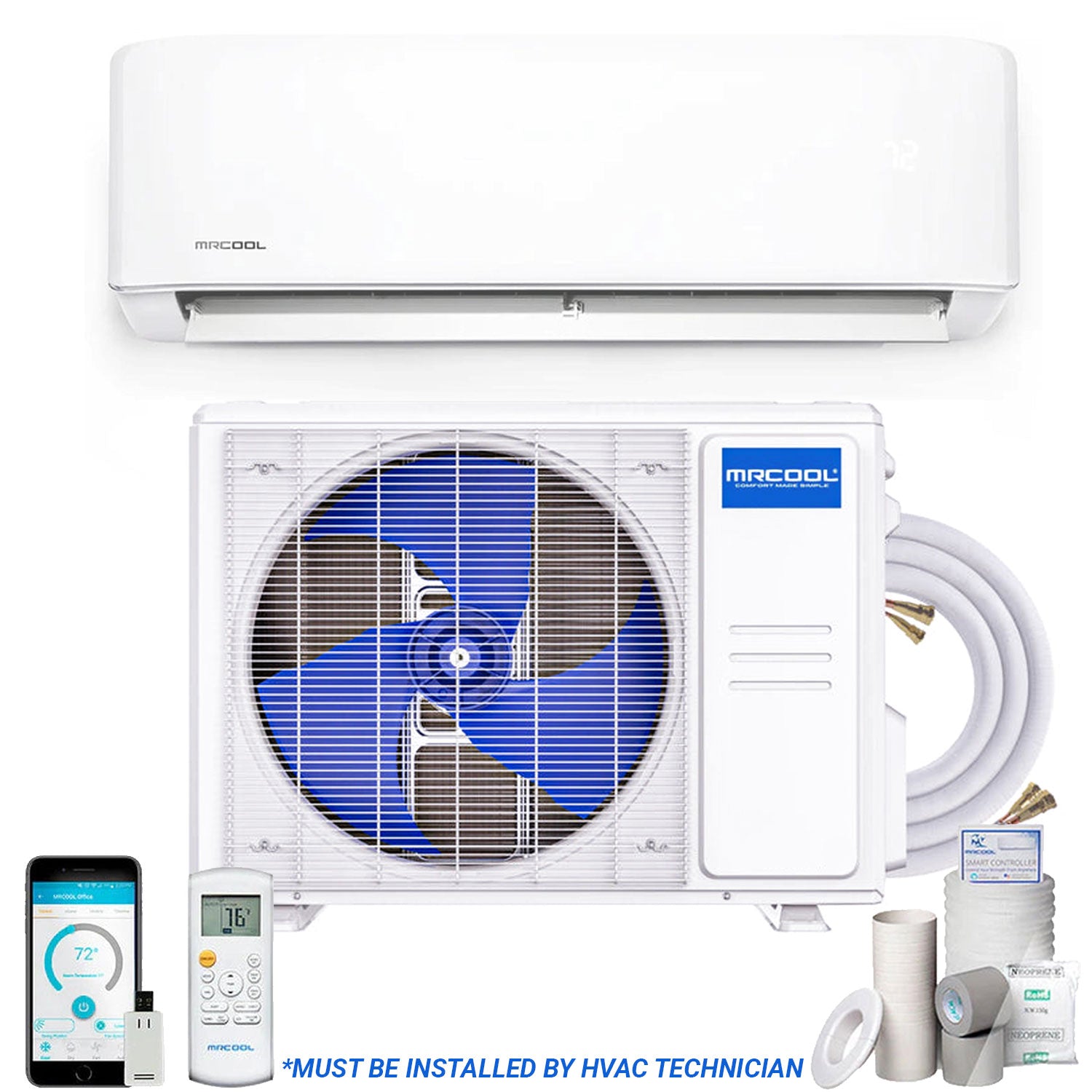

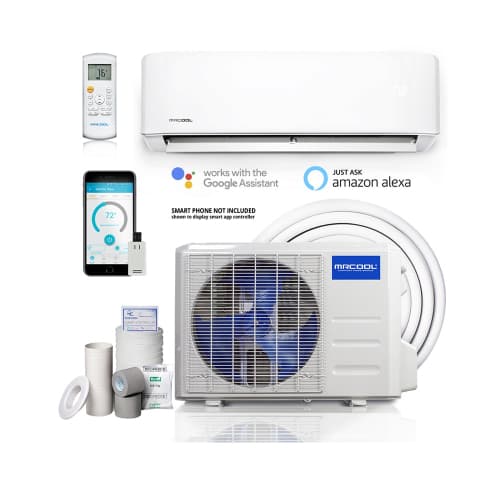

Mrcool A-36-HP-230D-O is a 36,000 BTU Advantage 5th Generation ductless mini split heat pump and air conditioner designed for 230V operation, using R-454B refrigerant and including a 16 ft line set. The single-zone system features an inverter-driven outdoor condenser, a wall-mounted indoor air handler with built-in Wi-Fi control and a wireless remote, and is intended for professional installation.

  • 36,000 BTU single-zone capacity with SEER2 18 and HSPF2 8.5 efficiency ratings.
  • Uses low-GWP R-454B refrigerant; inverter-driven compressor and Gold Fin corrosion-resistant condenser coating.
  • Includes 16 ft pre-charged line set, Wi-Fi smart HVAC controller, wireless remote; professional installation required.

Product Highlights

36,000 BTU single-zone ductless heat pump; 230V; R-454B refrigerant; SEER2 18; built-in Wi-Fi; includes 16 ft line set; professional installation required.

Product Information

Standard Information

  • Brand: MRCOOL
  • Manufacturer Part Number: A-36-HP-230D-O
Technical Specifications
Brand
MRCOOL
MPN
A-36-HP-230D-O
Model Name
Advantage 5th Gen 36000 BTU Ductless Mini Split Heat Pump and Air Conditioner
Series
Advantage 5th Generation
Capacity Cooling
36,000 BTU
Capacity Heating
36,000 BTU
SEER2
18
EER2
9
HSPF2
8.5
Input Voltage
230V
Electrical
1 Phase, 60 Hz
Refrigerant
R-454B
Installation Type
Professional installation required (Non-DIY)
Includes
16 ft line set, indoor air handler, outdoor condenser, wireless remote, installation and user manuals
Zone Compatibility
Single Zone
Max Breaker Size
35 Amps
Min Breaker Size
33 Amps
Liquid Line Size
3/8 inch
Suction Line Size
5/8 inch
Piping Size (Liquid/Gas)
3/8 - 5/8 inch
Maximum Airflow
883 Turbo / 733 Hi / 518 Med / 400 Lo CFM
Operating Ambient Temperature Range (Heating/Cooling)
5°F to 122°F
Sound Level (Condenser)
60.5 dBA
Sound Level (Air Handler)
28 - 56.5 dBA
Dimensions (Condenser H x W x D)
31.89 x 37.24 x 16.14 in
Dimensions (Air Handler H x W x D)
14.25 x 49.57 x 11.10 in
Condenser Weight
160.27 lbs
Air Handler Weight
55.00 lbs
Compressor Type
Inverter-driven
Corrosion Protection
Gold Fin condenser coating
Smart Control
Built-in Wi-Fi Smart HVAC controller; compatible with smartphone app, Amazon Alexa and Google Assistant
Remote Features
Wireless remote with Follow Me temperature sensing
Certifications
AHRI certified (AHRI Certificate Number: 216032587); Energy Star listed; ETL/UL/CSA listings noted
Product Type
Ductless mini split heat pump and air conditioner
BTU/Tonnage
36,000 BTU / 3 Ton
AHRI Certificate Number
216032587
Maximum Coverage Area (approx.)
Up to 1,700 sq ft (varies by application)
