MRCOOL Advantage 5th Gen 12000 BTU Ductless Mini Split Heat Pump and Air Conditioner 230V R454B Non DIY Install Includes 16 Ft Line Set

Important: This is not a DIY model. Professional HVAC installation is required.

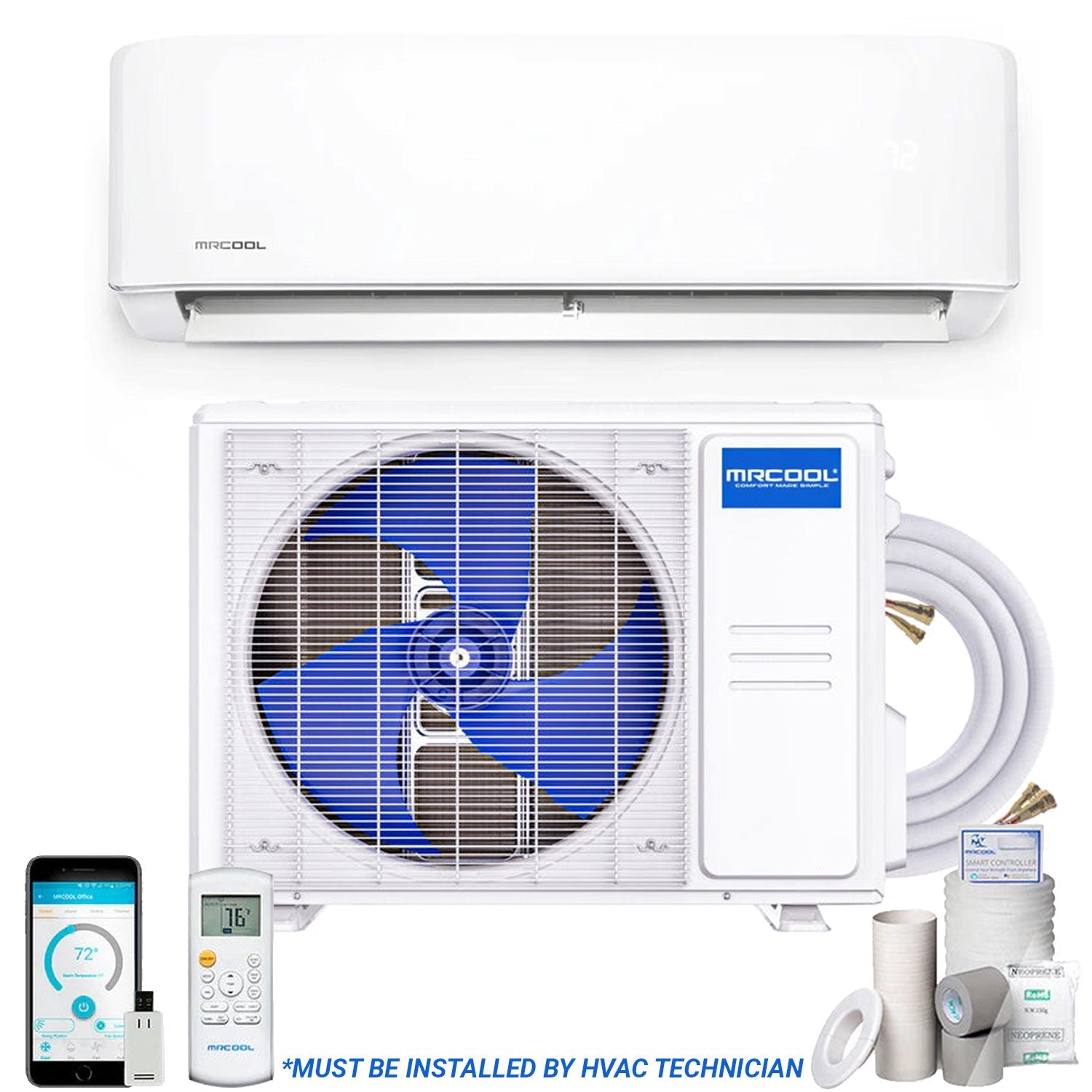

The MRCOOL Advantage 5th Generation 12000 BTU Mini Split offers high-efficiency ductless heating and cooling, designed for quiet, reliable performance in spaces up to 550 sq. ft. This complete bundle includes a 230V outdoor condenser, a sleek indoor air handler, and a 16 ft. pre-charged line set.

Equipped with R454B refrigerant, the system delivers improved energy efficiency and a reduced environmental footprint, featuring a Global Warming Potential nearly 80% lower than R410A. The unit achieves a 21.3 SEER2 rating and 9.1 HSPF2-4, offering meaningful energy savings and optimal year-round comfort.

Wi-Fi capability comes built-in, allowing users to control the system remotely via smartphone or through voice commands using Amazon Alexa or Google Assistant. Features like Sleep Mode, Auto Restart, and Follow Me functionality ensure comfort and convenience throughout the day and night.

Installation must be completed by a licensed HVAC professional. The ductless design ensures a faster, simpler installation compared to central air systems.

Register your unit to activate MRCOOL’s standard warranty: 2 years on parts, 1 year on the compressor, and 1 year on the remote. Optional enrollment in the MRCOOL Care Program extends coverage to a Limited Lifetime Warranty.

Product Highlights
• Heating and cooling in one ductless mini split system

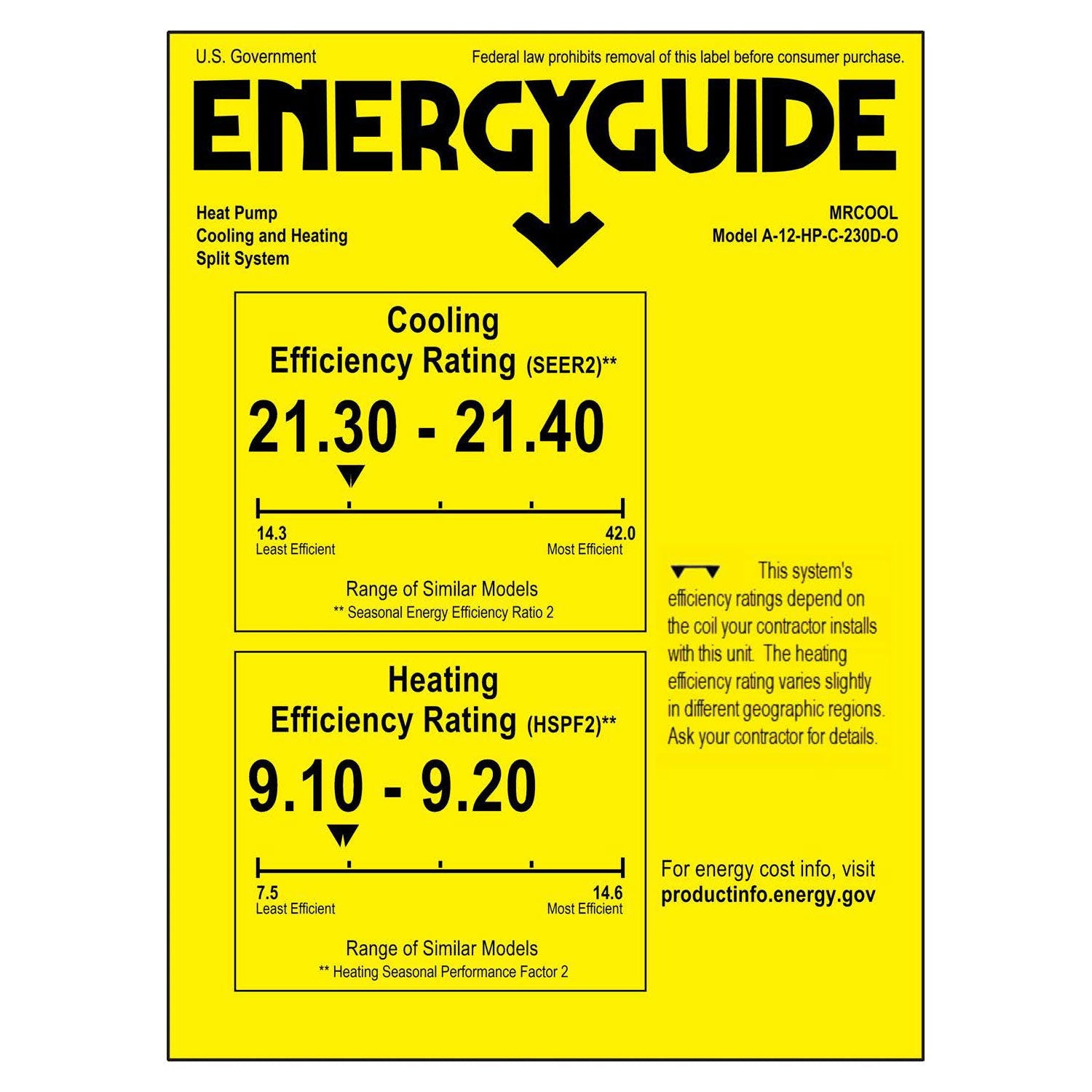

• 21.3 SEER2 and 9.1 HSPF2 energy efficiency ratings
• Cools and heats spaces up to 550 sq. ft.
• Eco-friendly R454B refrigerant with 80% lower GWP than R410A
• Built-in Wi-Fi for smart control via app, Alexa, or Google Assistant
• Quiet operation with 5-speed fan and decibel rating as low as 21 dB indoors
• Gold Fin condenser resists corrosion in coastal environments
• Includes 16 ft. pre-charged line set for simplified HVAC installation

Specifications
• BTU Capacity: 12000
• Voltage: 230V (208-230V, 60Hz, 1Ph)
• SEER2 Rating: 21.3
• HSPF2 Rating: 9.1
• Refrigerant: R-454B
• Wi-Fi Enabled: Yes
• Installation Type: Non-DIY (Professional required)
• Coverage Area: Up to 550 sq. ft.
• Line Set Included: 16 ft. pre-charged
• Indoor Unit Dimensions (WxDxH): 31.57 x 7.44 x 11.69 in
• Outdoor Unit Dimensions (WxDxH): 30.12 x 11.93 x 21.85 in
• Indoor Noise Level: as low as 21 dB
• Outdoor Noise Level: 54 dB
• Circuit Requirements: Indoor 3.0A (Max 15A), Outdoor 13.0A (Max 15A)
• Piping Size: 1/4 in. (liquid) x 3/8 in. (gas)
• Unit Weights: Indoor 19.40 lbs (net), Outdoor 59.08 lbs (net)
