MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER
MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER
MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER
MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER
MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER
MRCOOL Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER

Mrcool A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler 230 volt 17 SEER

MRCOOL
Brand: MRCOOL
SKU: A-24-HP-WMAH-230B
Availability: Out Of Stock
$444.85
$444.85
LTL Delivery

This product weighs 127 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

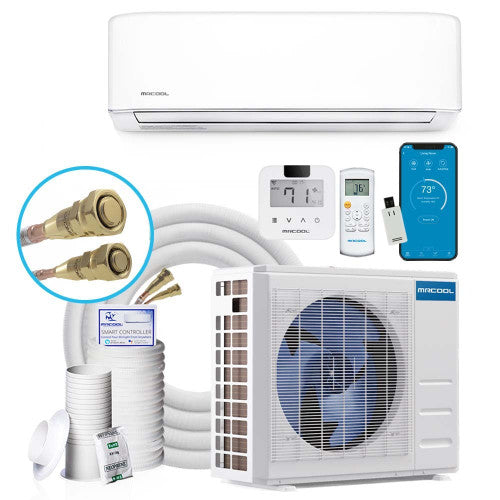

The MRCOOL A-24-HP-WMAH-230B 24K BTU Wall Mount Air Handler is a 230 volt, 17 SEER unit with enhanced WiFi, compatible with Alexa and Google Assistant. This Advantage series air handler delivers high performance comfort and can heat up to 1000 square feet. It combines interior comfort with environmentally friendly technology and features a compact, enclosed design.

  • 24K BTU capacity for effective cooling and heating.
  • Wall mount design for space-saving installation.
  • Enhanced WiFi connectivity for smart control via Android, Apple, Alexa, and Google Assistant.

Product Highlights

This MRCOOL air handler offers efficient, smart climate control for spaces up to 1000 sq ft, featuring WiFi connectivity and a compact design.

Product Information

Standard Information

  • Brand: MRCOOL
  • Manufacturer Part Number: A-24-HP-WMAH-230B
Technical Specifications
Cooling
23,000 BTU
Heating
25,000 BTU
SEER
20
EER
12.5
Voltage
208-230V/1
Min Circuit Ampacity
18 A
Refrigerant Type
R410A
Low Ambient Cooling
5°F
Liquid Line Size
3/8 inch
Suction Line Size
5/8 inch
Model
A-24-HP-WMAH-230B
Configuration
Wall Mounted
Air Flow Direction
Horizontal
Blower Motor
Variable Speed
Cooling Capacity
2 Ton
Electrical Phase
1-Phase
Line Set Connection Type
Flared
Max Overcurrent Protection
25 amps
Series
Advantage
Special Features
Alexa, Google Assistant, WiFi Capable
System Application Type
Ductless Split Systems
Warranty
2 Year Parts
Zone Capacity
Single
BTU
24000 BTU/H
Application
Wall mounting
Decibel rating
48 dB-A
Part Number
A-24-HP-WMAH-230B
Certificate
cETLus Listed, CSA US, cUL/UL Listed
Maximum Amperage
15 Amp
Maximum Voltage
208V/230V
Room Size
1000 Sq Ft
