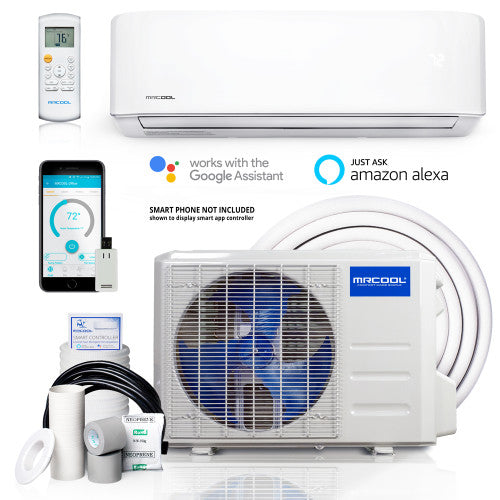

MRCOOL A-18-HP-230B Ductless Mini-Split Heat Pump System

Product Description

The MRCOOL Advantage A-18-HP-230B is a ductless mini-split heat pump system with a capacity of 18,000 BTU for both heating and cooling. This model is designed for areas up to seven hundred fifty square feet for optimal comfort. It operates on 208-230V and uses R410A refrigerant, making it energy efficient. Other features include a washable filter for easy maintenance and the ability to cool down to five degrees Fahrenheit.

• Includes auto restart and sleep mode functions.
• Gold Fin condenser for corrosion resistance.
• Louver position memory for improved airflow control.

Product Highlights

The MRCOOL Advantage A-18-HP-230B not only provides efficient heating and cooling but also includes advanced features for improved usability and longevity.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: A-18-HP-230B

Technical Specifications

• Cooling Capacity: 18000 BTU
• Heating Capacity: 18000 BTU
• SEER: 19
• EER: 11
• HSPF: 10
• Input Voltage: 208-230V
• Electrical Phase: 1
• Cycle: 60 Hz
• Max Fuse Breaker: 20 A
• Min Circuit Ampacity: 15 A
• Max Coverage Area: 750 sq. ft.
• Refrigerant Type: R410A
• Low Ambient Cooling: 5°F
• Indoor Unit Model: A-18-HP-WMAH-230B
• Outdoor Unit Model: A-18-HP-C-230B
• Liquid Line Size: 1/4
• Suction Line Size: 1/2
• Filter Type: Washable
• Compressor Type: Inverter
• Product Height: 22 inches
• Product Length: 13 inches
• Product Width: 32 inches
• Weight: 81 lbs
• System Application Type: Ductless Split Systems
