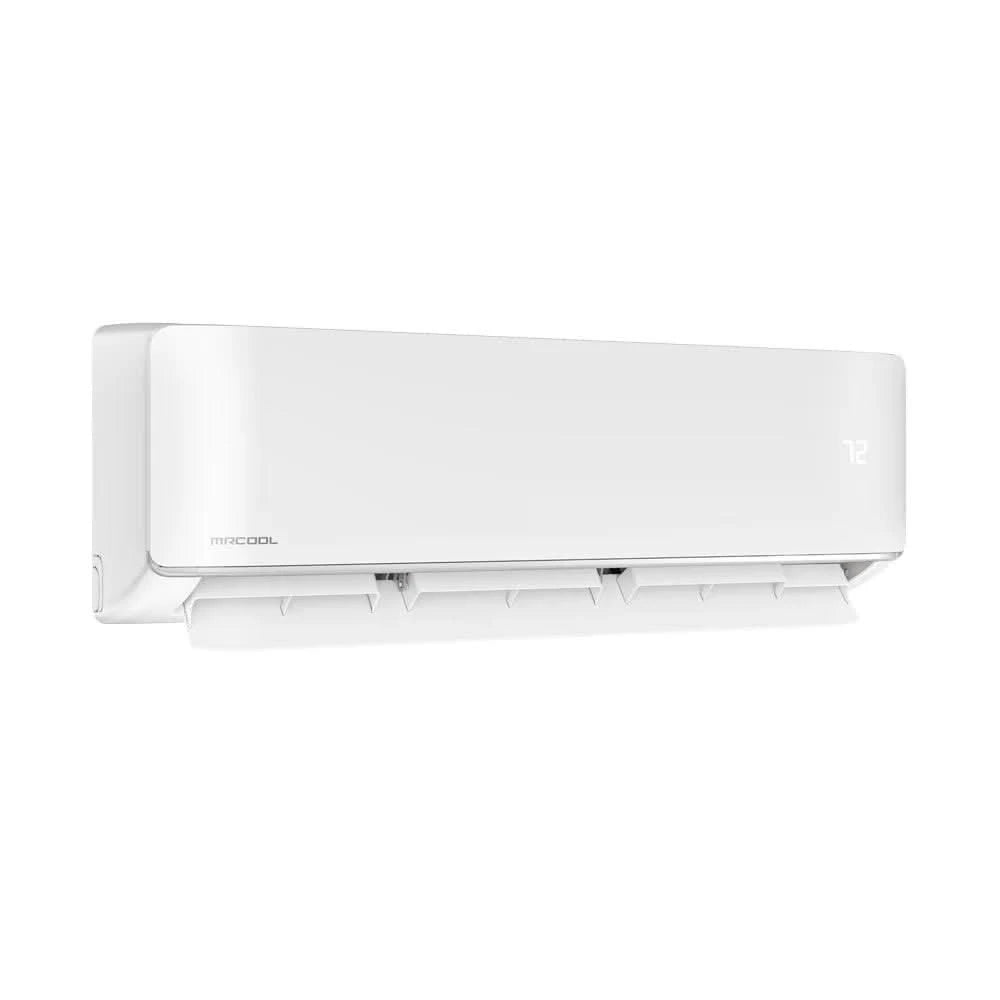

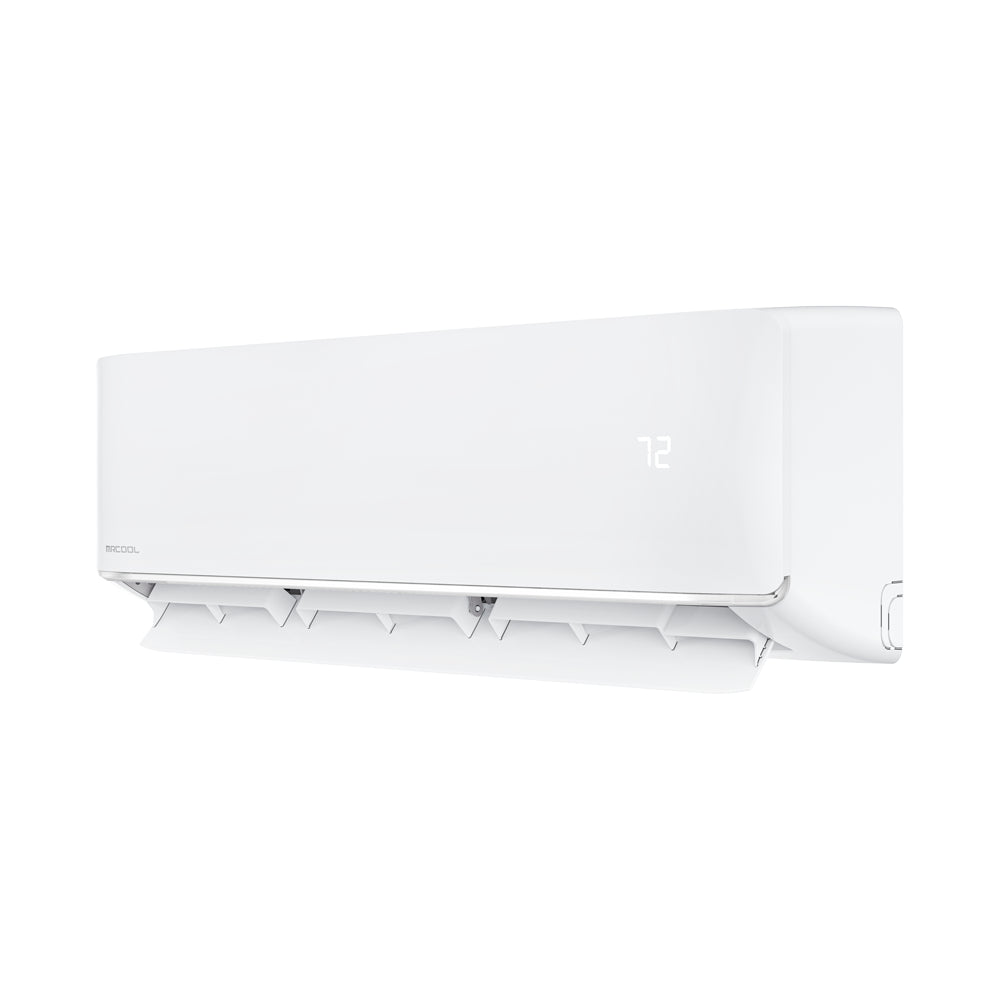

Mrcool DIY-24-HP-WMAH-230D25-O 24k DIY 5th Generation Mini-split Air Handler 230v

Product Description

The MRCOOL DIY-24-HP-WMAH-230D25-O 24k DIY 5th Generation Mini-split Air Handler operates on 230V. Designed for spaces between 750 and 1,000 sq. ft., this air handler provides efficient heating and cooling. Control the climate remotely via the SmartHVAC app, the included remote, or voice commands through Amazon Alexa & Google Assistant.

• DIY Installation – No HVAC Technician Required
• High-Capacity Heating & Cooling
• Smart Climate Control for Maximum Comfort

Product Highlights

This air handler features DIY installation, smart control options, and dehumidification mode for improved air quality.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: DIY-24-HP-WMAH-230D25-O

Technical Specifications

• Brand: MRCOOL
• MPN: DIY-24-HP-WMAH-230D25-O
• UPC: 840255587051
• Model: DIY-24-HP-WMAH-230D25-O
• Capacity: 24,000 BTU
• Coverage Area: 750-1,000 sq. ft.
• Power Supply: 230V
• Compatible Line Set: DIY® QuickConnect® (sold separately)
• Control Options: Remote, SmartHVAC App, Alexa, Google Assistant
• Functions: Heating, Cooling, Dehumidification (Dry Mode), Follow Me Function
• Certifications: Intertek Listed 5031495
• Compressor Warranty: 7 Years
• Parts Warranty: 5 Years
• NEEP ccASHP Listed: Yes
• Refrigerant: R-454B
• Tonnage: 2
• Voltage (v): 208/230
• Phase: 1
• Cycle: 60
• Max Fuse Breaker (a): 15
• Min. Circuit Ampacity (a): 3
• Mount Type: Wall
• Decibel Rating Low (DBA): 20
• Decibel Rating High (DBA): 54
• Number of Speeds: 5
• Liquid Line Size: 3/8
• Suction Line Size: 5/8
• Filter Type: Reusable
• Auxiliary Heater Included: No
• Auxiliary Heater Available: No
• Fan Only Option: Yes
• Quiet Mode: Yes
• Auto Cool: Yes
• Wifi Compatibility: Yes
• App Compatibility: Yes
• Works with IOS: Yes
• Works with Android: Yes
• Remote Control Included: Yes
• Ul Listed: Yes
• ETL Listed: Yes
• Energy Star Certified: Yes
• AHRI Certified: Yes
• Registered Warranty: Extended limited lifetime*
• Has Batteries: Yes
• Contains Electronics: Yes
• Contains Chemicals: Yes
• Contains Aerosol: Yes
• Contains Compressed Gas: Yes
• Proposition 65 Warning: Yes
