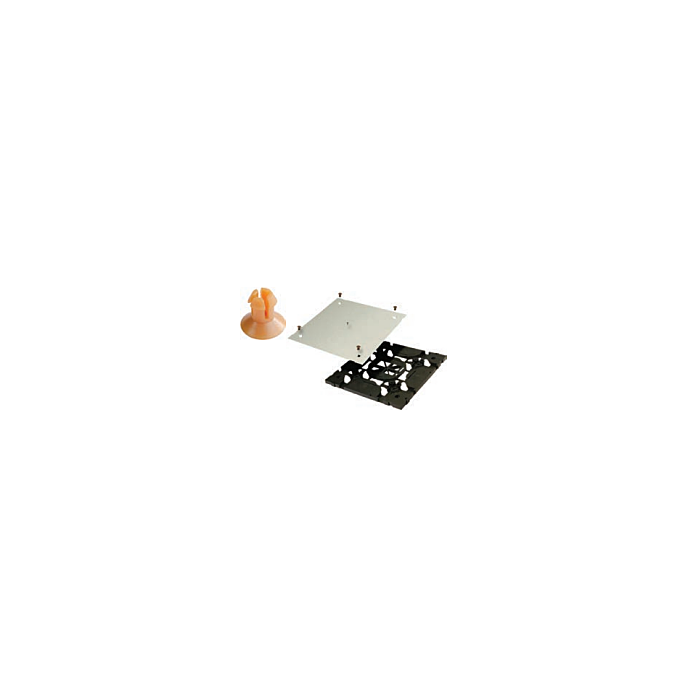

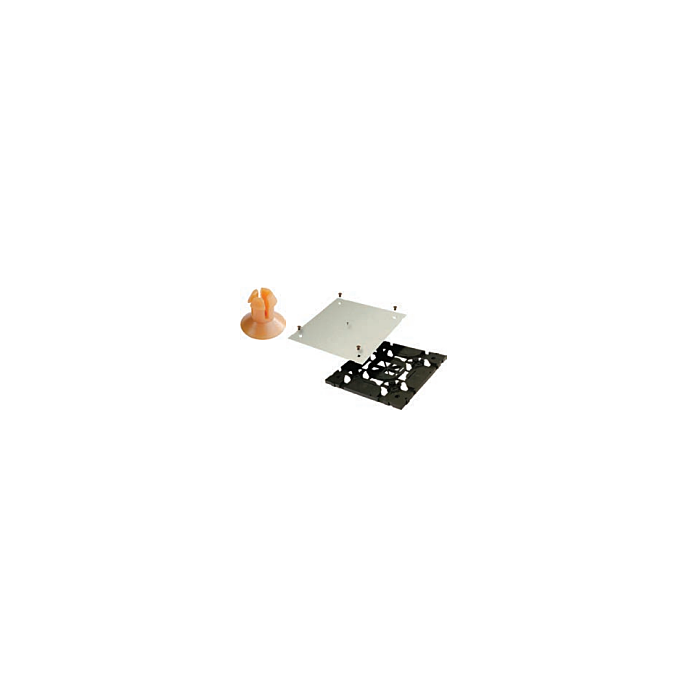

Mr Pex 6114002 Radiant Heat Transfer Panel 15.75x15.75 in

Product Description

The MR PEX 6114002 is a return retro radiant panel heat transfer system designed for in-floor or under-floor hydronic heating applications. Sized at 15.75 x 15.75 inches, it accommodates 1/2-inch PEX tubing spaced 8 inches on center, providing consistent heat distribution across the panel surface. This system is used in radiant heating installations where heat is conducted from circulating hot water through the tubing and into the floor or subfloor assembly above. Licensed plumbers and radiant heating specialists are the primary installers of this type of panel system.

The 6114002 return retro panel is suited for retrofit radiant heating projects where conventional installation methods are not practical. It fits into existing floor structures without requiring full subfloor removal, making it a practical choice for renovation work in residential settings. The panel format supports consistent tube spacing, which helps maintain even heat output. Applications include residential rooms where hydronic radiant floor heating is being added to an existing structure rather than a new build.

Key Features

• Panel dimensions of 15.75 x 15.75 inches for structured layout in retrofit installations
• Designed for 1/2-inch PEX tubing — a standard size in residential hydronic systems
• 8-inch on-center tube spacing for uniform heat transfer across the panel surface
• Return retro design supports installation in existing floor assemblies without full subfloor demolition
• Facilitates efficient heat conduction from hydronic tubing to the floor surface above

Compatibility

Designed as an OEM-style replacement or new-installation panel for retrofit hydronic radiant floor heating systems using 1/2-inch PEX tubing at 8-inch on-center spacing.

Installation Notes

Installation of radiant heat transfer panels should be performed by a licensed plumber or radiant heating specialist familiar with hydronic system design. Shut down and depressurize the hydronic circuit before connecting or disconnecting any tubing. Follow local mechanical and plumbing codes, including IPC guidelines, when routing and securing PEX tubing through the panels. Do not exceed the pressure and temperature ratings of the PEX tubing used in conjunction with this panel.

Technical Specifications

• Panel Width: 15.75 inches
• Panel Length: 15.75 inches
• Tubing Size: 1/2 inch PEX
• Tube Spacing: 8 inches on center
• System Type: Return Retro Radiant Panel
• UPC: 799475962417

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 6114002
