MR PEX 4067550 MR PEX Plastic Fittings 4067550

Product Description

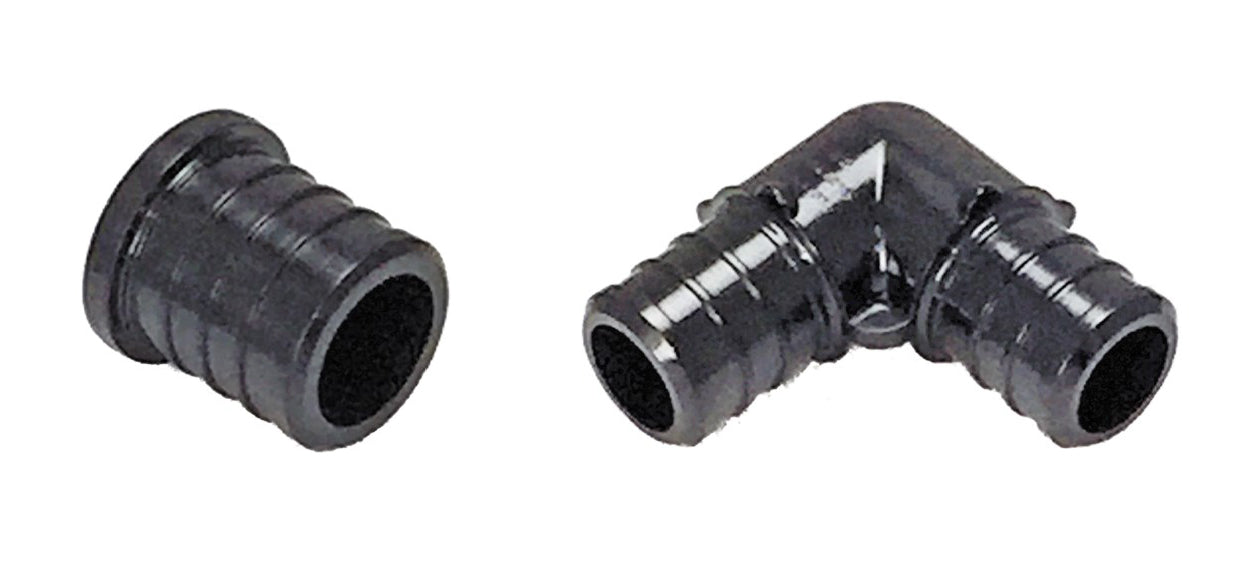

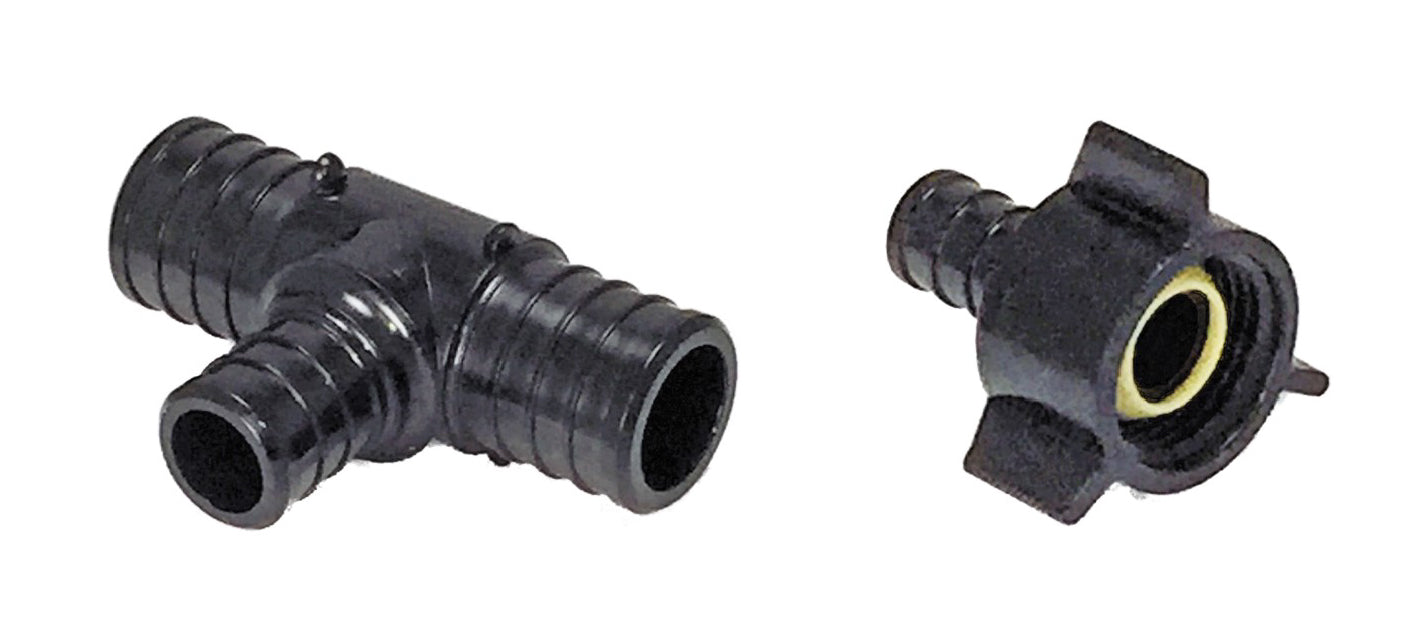

MR PEX plastic fittings, model number 4067550, are made from PolyPhenylSulfone (PPSU) resin. These fittings are designed to be strong and lightweight. They resist corrosion and are suitable for use with potable water. These fittings are also resistant to chlorine and various other chemicals.

• Constructed from PolyPhenylSulfone (PPSU) resin
• Corrosion resistant materials
• Compatible with MR PEX press tools (sold separately)

Product Highlights

Ideal for replacing brass and copper fittings, these MR PEX fittings ensure effective and reliable plumbing solutions.

Product Information

Standard Information

• Brand: MR PEX
• MPN: 4067550

Technical Specifications

• Material: PolyPhenylSulfone (PPSU)
• Operating Pressure Rating: One hundred eighty degrees Fahrenheit at one hundred psi
• Barb Size 1/2 ID: 0.32 inches
• Barb Size 1/2 OD: 0.47 inches
• Barb Size 3/4 ID: 0.46 inches
• Barb Size 3/4 OD: 0.67 inches
• Barb Size 1 ID: 0.62 inches
• Barb Size 1 OD: 0.86 inches
• Standards: ASTM F2159, ASTM F877, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 61 Annex G, CSA B137.5
• Listings: IAPMO, UPC, cNSFuspw
