Mr Pex 3230900 9 loop 1-1/4 inches stainless steel manifold

Product Description

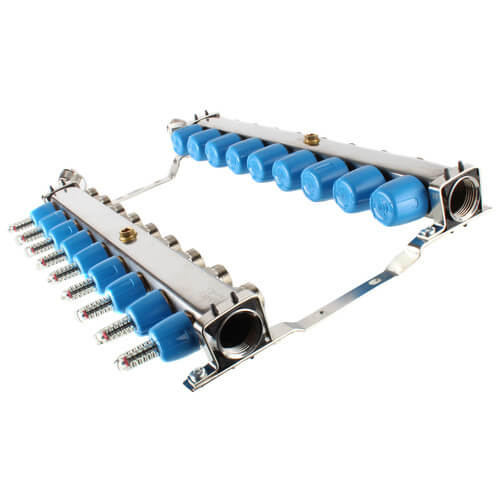

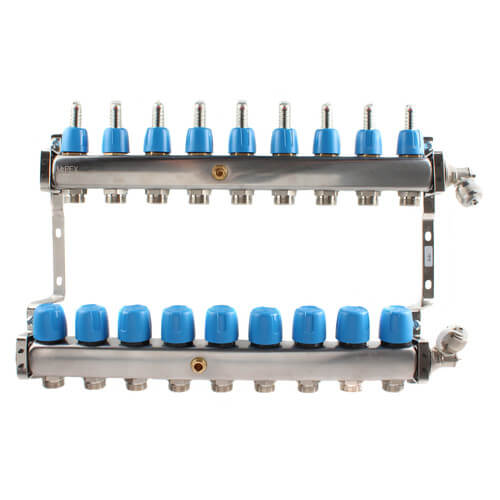

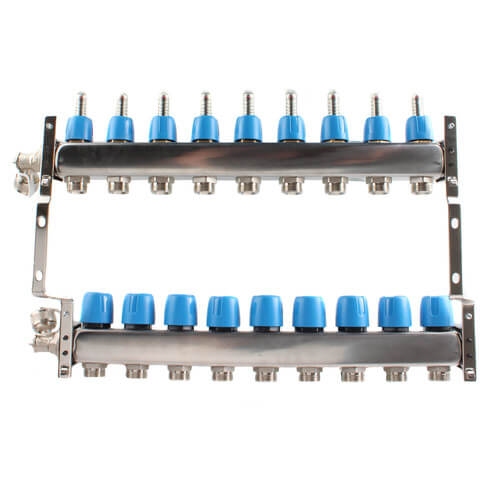

The MR PEX 3230900 is a 9-loop 1-1/4" stainless steel manifold designed for heating applications. Constructed from high-grade, Type 304 stainless steel with high nickel content, it ensures long-term corrosion resistance. This fully assembled manifold features adjustable flow-meters on the supply side for flows up to 1.45 gpm per loop and balancing on/off valves on the return side. It accommodates flows up to 14 gpm and has G 1" BSP threaded inlets for easy connections.

• Highest level of long term corrosion resistance using bright annealed high-grade, Type 304, stainless steel with high nickel content.
• Fully assembled and ready for mounting, featuring adjustable flow-meters and balancing on/off valves.
• Inlets have G 1" BSP threads and branches use Eurokonus (EK20) connections for versatile tubing compatibility.

Product Highlights

Durable 9-loop stainless steel manifold with adjustable flow control, designed for efficient heating systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3230900

Technical Specifications

• Number of Outlets: 9
• PEX Tubing Compatibility: 3/8", 1/2", 5/8"
• Branch Cv Value: 1.38
• Manifold Body Flow Rate: 14 gpm
• Supply Inlet Size: 1"
• Supply Inlet Connection: BSP
• Loop Connection Type: EK20
• Material: Stainless Steel
• Fitting System Compatibility: PEX Compression, PEX-AL-PEX Compression
• Application: Heating
• Operating Pressure: 87 psi
• Max Pressure at 70°F: 145 psi
• Max Continuous Working Temperature: 160°F
• Max Intermittent Working Temperature: 185°F (max 10 min/day)
• Max Differential Pressure: 14.5 psi
• Supply Flowmeter Cv (Wide Open): 1.39
• Return Valve Cv (Wide Open): 3.24
• Accepted Media: Water, up to 50% propylene glycol
