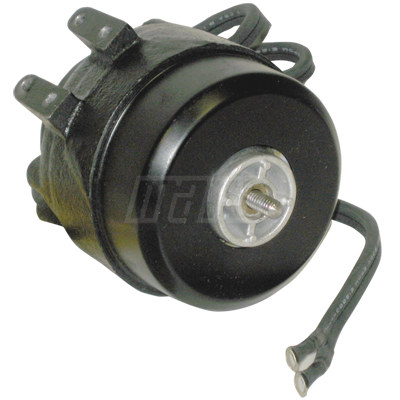

Motors and Armatures 5312 Unit Bearing Motor 6W 115V Ccw

Product Description

The Motors and Armatures 5312 is a unit bearing motor designed for commercial use. This motor operates at six watts with a voltage of one hundred fifteen volts, making it efficient for various applications. The motor rotates counterclockwise and can reach a speed of one thousand five hundred fifty revolutions per minute.

• Features a lightweight design weighing three point three seven nine two pounds.
• Suitable for continuous fan duty in demanding conditions.
• Includes automatic reset overload protection for safe operation.

Product Highlights

This motor is effective in applications such as air conditioning systems and ventilation. It is built to meet demanding industrial standards.

Product Information

Standard Information

• Brand: Motors and Armatures
• Manufacturer: Motors and Armatures

Technical Specifications

• Power: 6W
• Voltage: 115V
• Current: 0.40A
• Speed: 1550/1 RPM
• Frame Size: 51 Fr
• Mounting: All-angle
• Insulation Class: Class B
• Protection: Impedance protected
