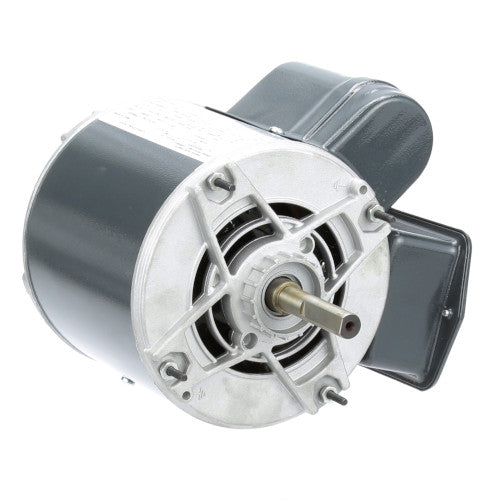

MOTOR, CONVECTION OVEN - DUAL VOLTAGE 419730-00001 for Vulcan Hart 419730-00001

Product Description

This item for Vulcan Hart MPN 419730-00001 is a dual voltage blower motor designed for convection ovens. It operates on both 115 and 208-230 volts with a horsepower rating of 1/4. This motor is essential for maintaining optimal cooking conditions in various Vulcan ovens, including the GH series with convection functionality.

• Dual voltage operation for flexibility
• 1/4 HP rating for effective performance
• Compatible with multiple Vulcan oven models

Product Highlights

This motor is built for one-speed operation and can handle RPM variance for both 60 and 50 Hz frequencies. It features a frame size of 48Z and requires specific mounting brackets for installation.

Product Information

Standard Information

• Weight: 13.15 pounds
• Dimensional Weight: 16.4375 pounds

Technical Specifications

• Power Rating: 1/4 HP
• Voltage: 115/208-230 V
• Phase: 1 PH
• Amperage: 3.3/1.7 AMP
• RPM: 1725/1425
• Shaft Size: 2 x 1/2 inches
• Frame Size: 48Z
• Mounting Brackets Required: Order # 26-3997 (not included)
