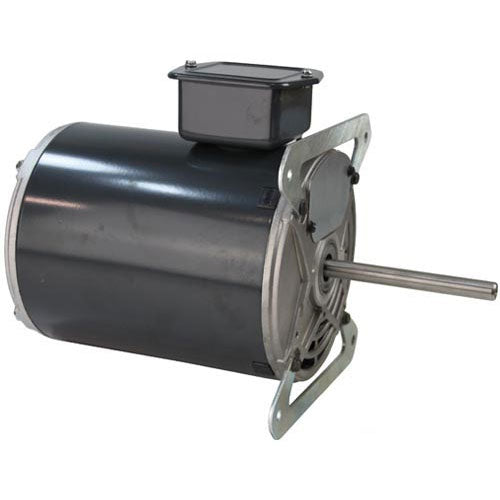

MOTOR 115V 0.5/0.14HP 1725/1140 for Southbend SOU1175567

Product Description

This item for Southbend SOU1175567 is a motor that operates at one hundred fifteen volts with a power rating of zero point five or zero point fourteen horsepower. It functions at speeds of one thousand seven hundred twenty-five or one thousand one hundred forty RPM. Ideal for various Southbend oven series, this motor ensures reliable performance.

• Two-speed operation - one thousand seven hundred twenty-five RPM and one thousand one hundred forty RPM
• CW rotation from the rear of the motor
• Compatible with Southbend oven series: 300, 400, B, BBB, GB, GS, EH, P, SLGS

Product Highlights

Utilizing a frame size of fifty-six Z, this motor features a shaft of one-half by four and one-half inches with two flats. It connects to power switches for high and low settings, ensuring versatility in operation.

Product Information

Standard Information

• Weight: 23
• Dim Weight: 26.45

Technical Specifications

• Power: 115V
• Horsepower: 0.5/0.14
• RPM: 1725/1140
• Frame Size: 56Z
• AMP: 7.2/4.5
• Rotation: CW from the rear
• Wiring Instructions: Connect black to power, red for low speed, blue/purple or brown/brown for centrifugal switch
