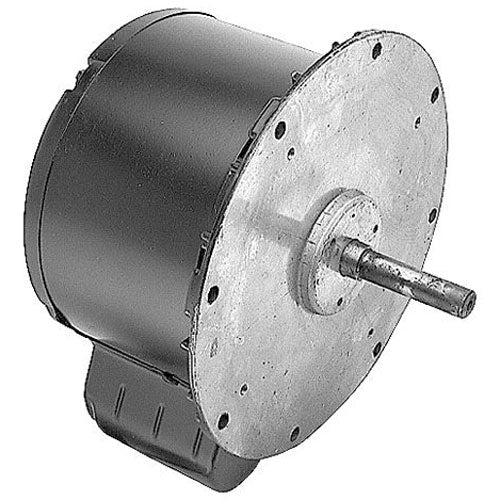

MOTOR 115/230V 1/2HP VH18387 for Vulcan Hart VH18387

Product Description

This item for Vulcan Hart VH18387 is a 115/230V motor with a power rating of one half horsepower. This motor operates at a speed of 1725 RPM, making it suitable for various applications.

• Voltage: 115/230V
• Power: 1/2HP
• Rotation: Clockwise

Product Highlights

This motor features a shaft dimension of five-eighths by two and seven-eighths inches and is designed for efficient performance in systems requiring high reliability.

Product Information

Standard Information

• Product Notes: 1PH, 8.0/4.0A
• Mount Centers: 8-3/4 inches

Technical Specifications

• Weight: 28.1 pounds
• Dimensions: 19 inches length, 12 inches width, 10.5 inches height
• Face Diameter: Approximately 9-1/2 inches
• Wiring for Low Voltage: Connect one side of the line to black and red. Connect the other side to yellow. Tie blue and white together.
• Wiring for High Voltage: Connect one side of the line to black and the other side to yellow. Tie red and white together.
• Shaft Size: 5/8 x 2-7/8 inches
