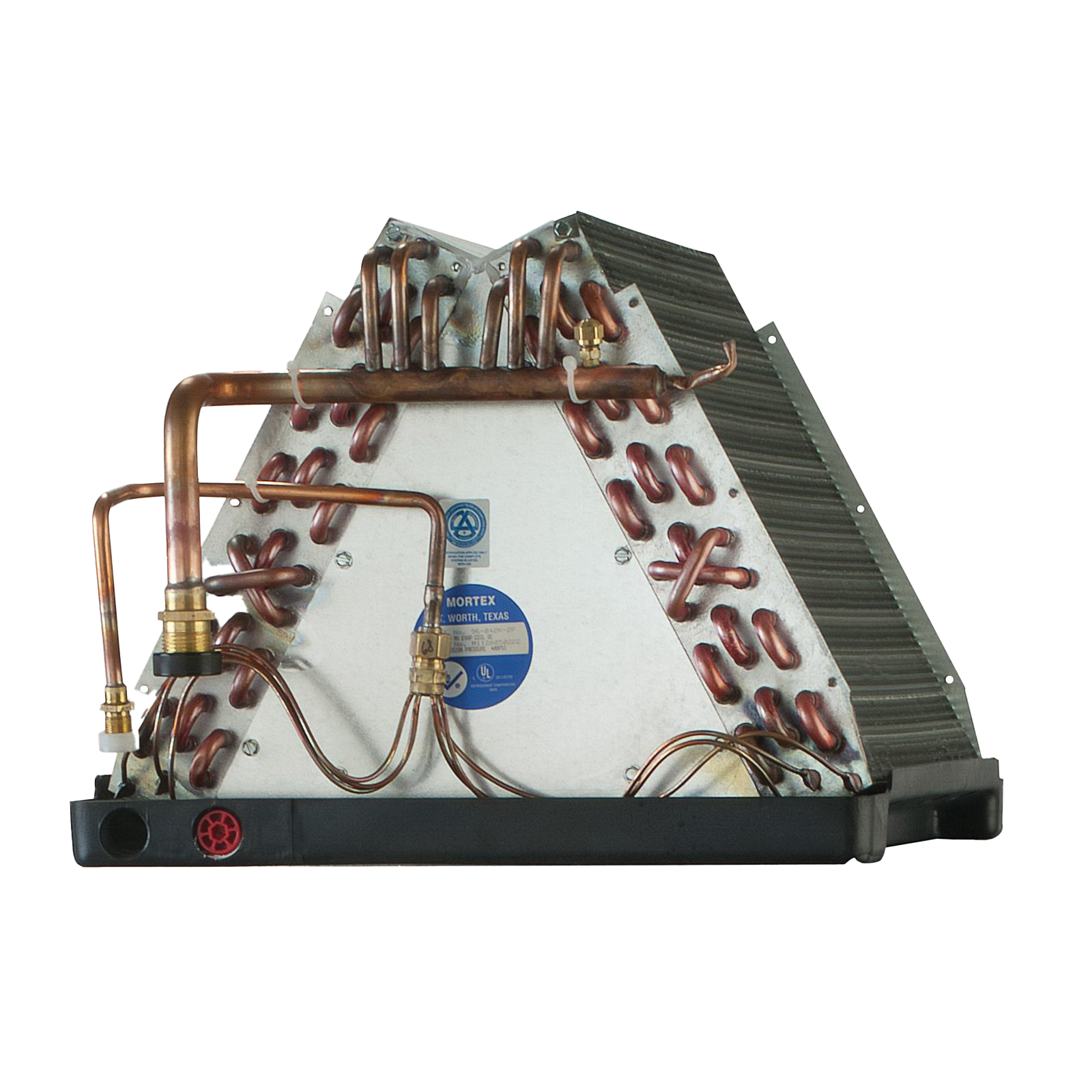

Mortex SCC34K Mobile Home 3ton Coil

Product Description

The MORTEX SCC34K uncased mobile home air conditioner and heat pump coil series is a high-efficiency A coil designed for new and existing upflow/downflow M.H. electric and gas furnaces. It can be AHRI-rated with many outdoor unit brands, providing a capacity range from 18000 to 57000 Btu/hr nominal.

• High-efficiency A coil
• Designed for mobile homes
• Suitable for new and existing upflow/downflow M.H. Electric and gas furnaces

Product Highlights

High-efficiency A coil designed for mobile homes and compatible with various outdoor unit brands.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: SCC34K

Technical Specifications

• Product Group: AC & Heat Pump
• Short Description: Mortex; SCC34K Evaporator Coil, Uncased Coil
• Application: new and existing upflow/downflow M.H. Electric and gas furnaces
• Capacity: 18000 to 57000 Btu/hr nominal
• Additional Features: Check valve flowrator pistons and TXV's, Leak tested at 500 lb/sq-in and factory sealed, Schrader® port for pressure verification, Plastic drain pans 3/4 in female NPT, Sweat connection, 16 in L fin, R-410A TXV metering device
