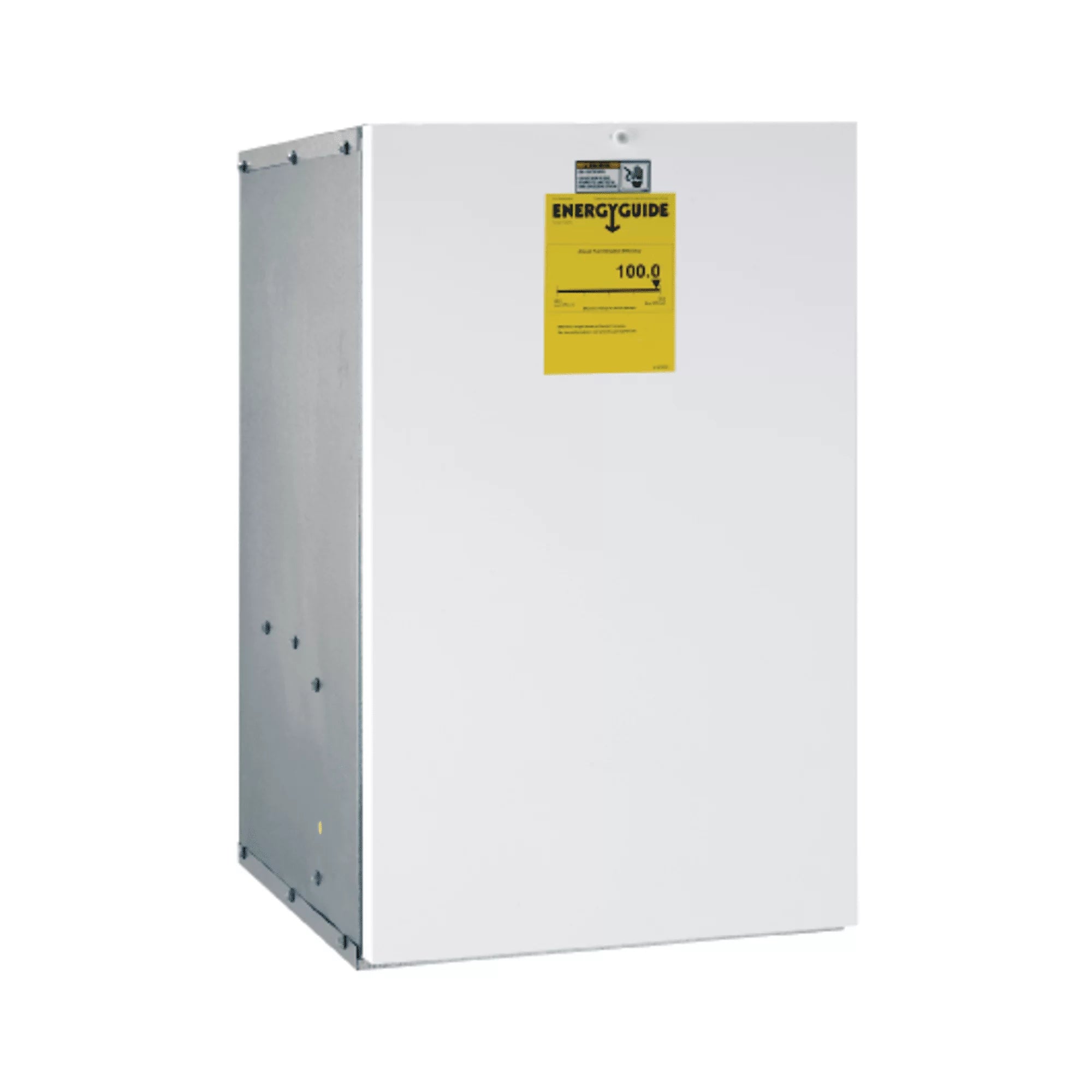

Mortex E30B5D015ABE 3/4 hp electric furnace 5 speed motor 15kw

Product Description

The MORTEX E30B5D015ABE is a 3/4 HP electric furnace designed for indoor AHU usage, featuring a 5-speed ECM blower motor and 15kW electric heat. This single-phase furnace supports both upflow and downflow air configurations, providing two-stage heating. It operates at 230 VAC and 60 Hz, delivering 51148 BTU output and 1200-1680 CFM for cooling. The unit is ETL and UL Listed, ensuring compliance with safety standards.

• 3/4 HP ECM blower motor with 5 speeds for efficient air circulation.
• 15 kW electric heat range with two-stage heating for consistent temperature control.
• Designed for indoor AHU applications with versatile upflow/downflow air direction.

Product Highlights

This electric furnace features a 3/4 HP ECM motor, 15 kW heating, and two-stage operation, suitable for various indoor installations.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B5D015ABE
• Country of Origin: USA

Technical Specifications

• AHRI Usage: Indoor AHU
• Air Flow Direction: Upflow / Downflow
• Blower Motor Horsepower: 3/4 HP
• Blower Motor RPM: 900-1400
• Blower Motor Speeds: 5
• Blower Motor Type: ECM (Electronically Commutated Motor)
• BTU Output: 51148
• CFM: 1200-1680
• CFM Cooling: 1200-1680
• CFM Heating: 1100-1520
• Frequency: 60 Hz
• Electric Heat Range: 15 kW
• Energy Star Rated: No
• Equipment Type: Furnace
• ETL Listed: Yes
• Furnace Type: Electric
• Heating Stages: Two Stage
• Includes Filter Rack: No
• Phase: Single
• UL Listed: Yes
• Voltage: 230 VAC
• Maximum Overcurrent Protection (MOCP): 90
• Blower Wheel Diameter: 9"
• Blower Wheel Width: 10"
• Tons: 3.0-5.0
