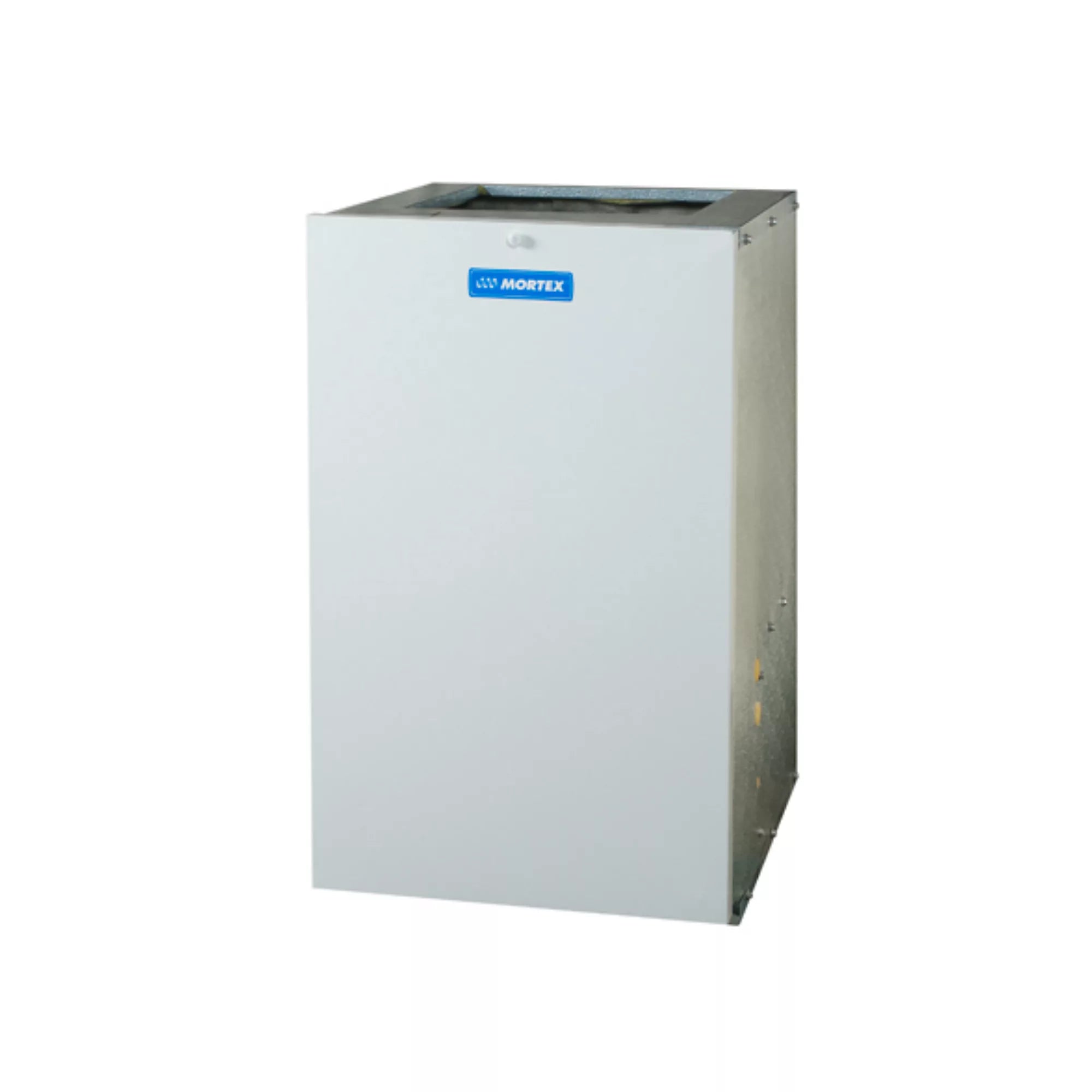

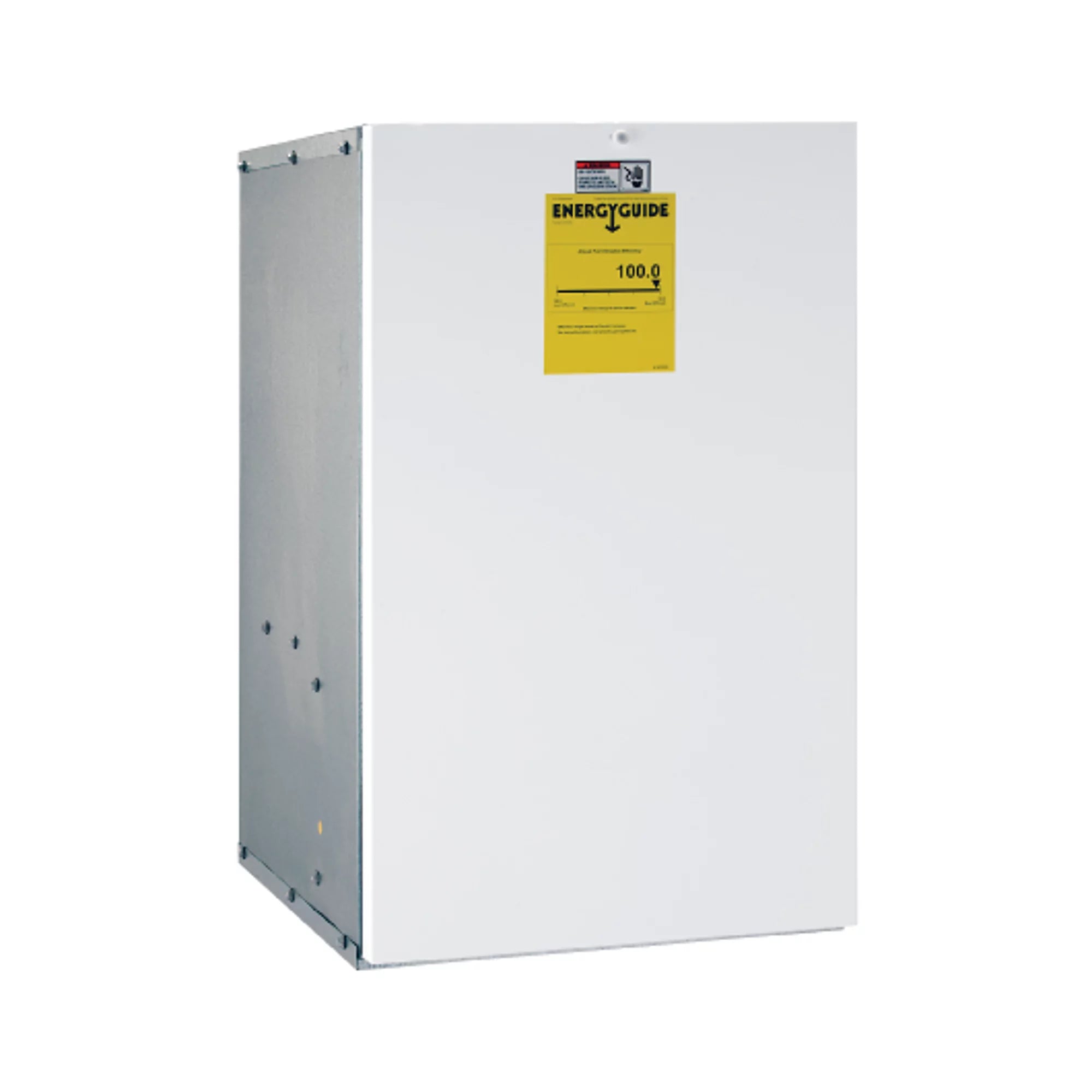

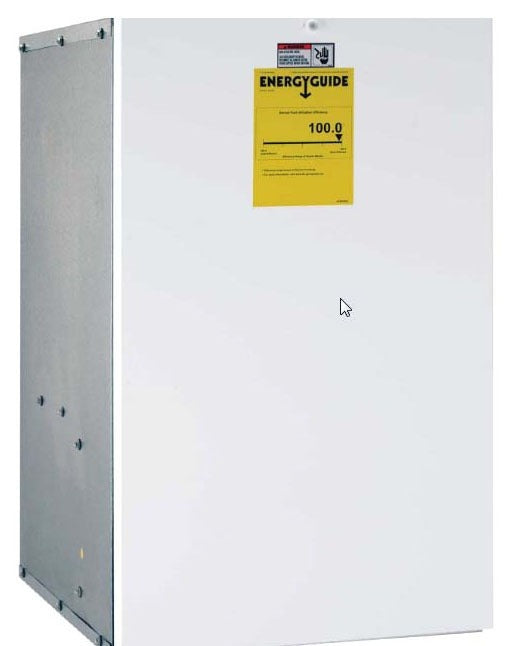

Mortex E30B4D010AAD Electric Furnace, 10 kW

Product Description

The Mortex E30B4D010AAD electric furnace provides 10 kW of power. Features include a downflow air flow direction and a single-stage heating system. The furnace is ETL listed and designed for indoor air handler unit (AHU) usage. It operates at 240 VAC and 60 Hz, with a cooling CFM of 1380 and a heating CFM of 800.

• FER compliant ECM motor (constant torque)
• Heat pump ready
• Built-in time delay relay (TDR)

Product Highlights

This Mortex electric furnace is designed for efficient and reliable heating, suitable for various indoor applications.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B4D010AAD
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Downflow
• Blower Motor HP: 1/2 HP
• Blower Motor RPM: 0-1400
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Mortex
• BTU Output: 34121
• CFM: 1200-1600
• CFM Cooling: 1380
• CFM Heating: 800
• Cycle/Hertz: 60 Hz
• Electric Heat Range [kW]: 10
• Energy Star Rated: No
• Equipment Type: Furnace
• ETL Listed: Yes
• Includes Filter Rack: No
• Furnace Type: Electric
• Heating Stages: Single Stage
• Phase: Single
• Product Family: E30
• Prop 65: Yes
• Rated Current Amps (RCA): 41.66
• Rated Load Amps (RLA): 44.87
• Voltage: 240 VAC
• Maximum Overcurrent Protection (MOCP): 60
• Blower Wheel Diameter: 9"
• Blower Wheel Width: 10"
• Blower Wheel Size: 10"x9"
• Series: E30
• Frequency Rating: 60 Hz
• Motor Type: ECM
• Temperature Rating: 40 to 100 deg F
• URI Part Number: E30B4D010AAD
• Vendor Part Number: E30B4D010AAD
