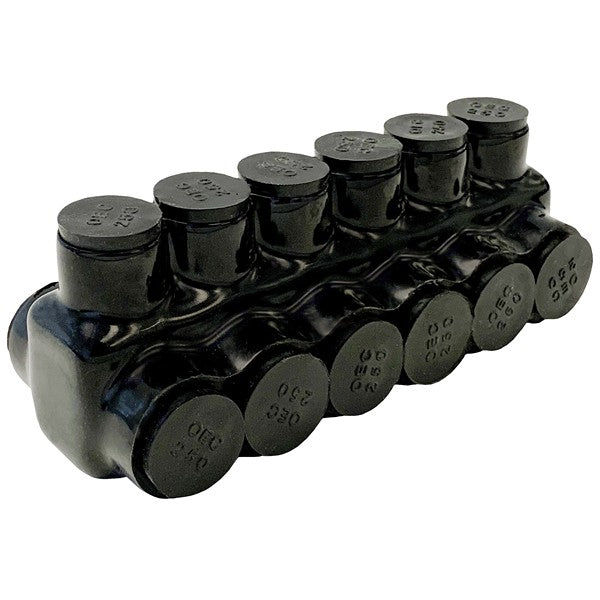

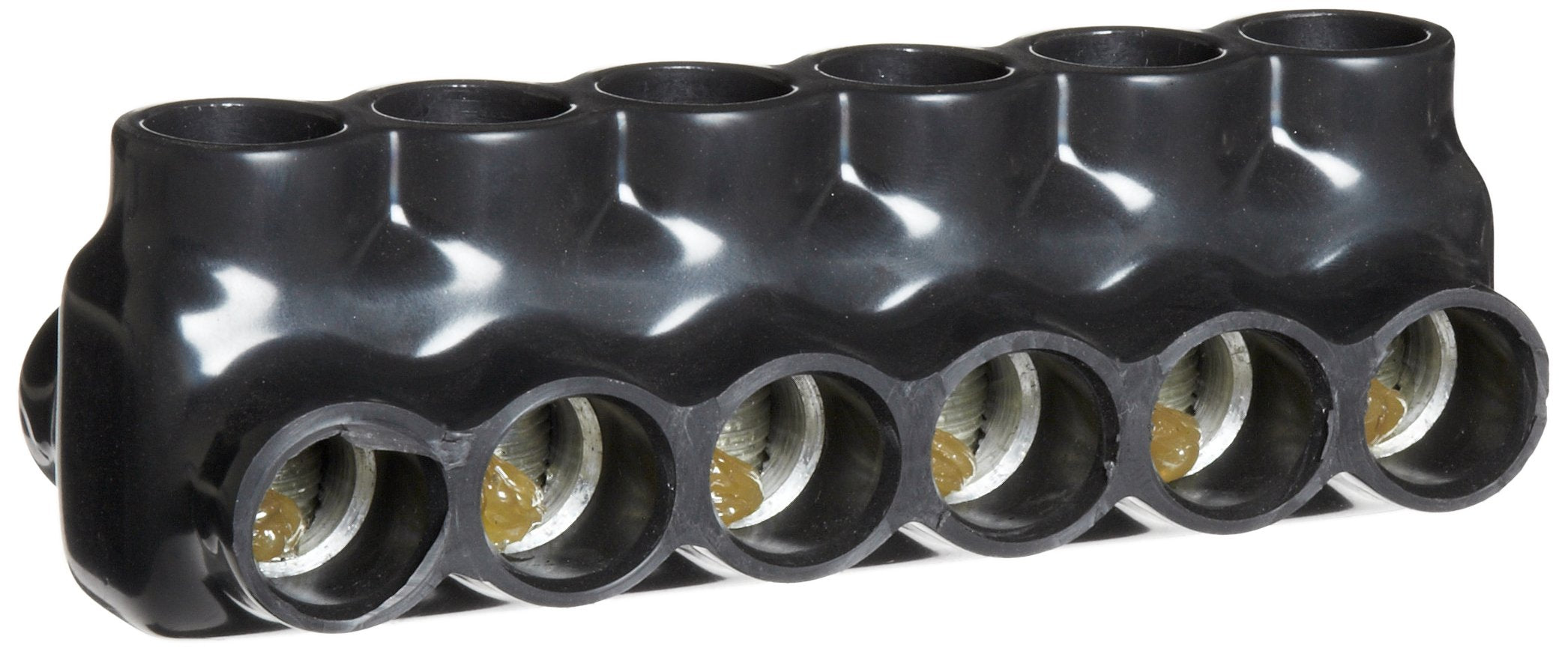

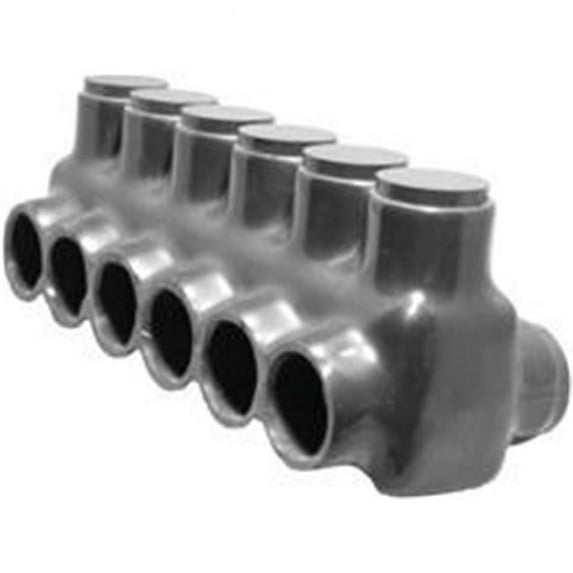

Morris Products 97656 insulated multi-cable connector dual entry 6 ports 350-6 wire range 2-pack

Product Description

The Morris Products 97656 is an insulated multi-cable connector designed for electrical splicing and tapping. This dual entry connector is CU9AL dual rated 6061-T6 aluminum, compatible with both copper and aluminum wires, accommodating one wire per terminal. It operates within a temperature range of -49°F to 194°F (-45° to 90°C) and is rated for 600 Volt applications. Plugs are marked for easy wire size identification, ensuring efficient electrical installations.

• Dual entry design facilitates electric splicing and tapping.
• Insulated with rugged high-dielectric rubber/vinyl coating.

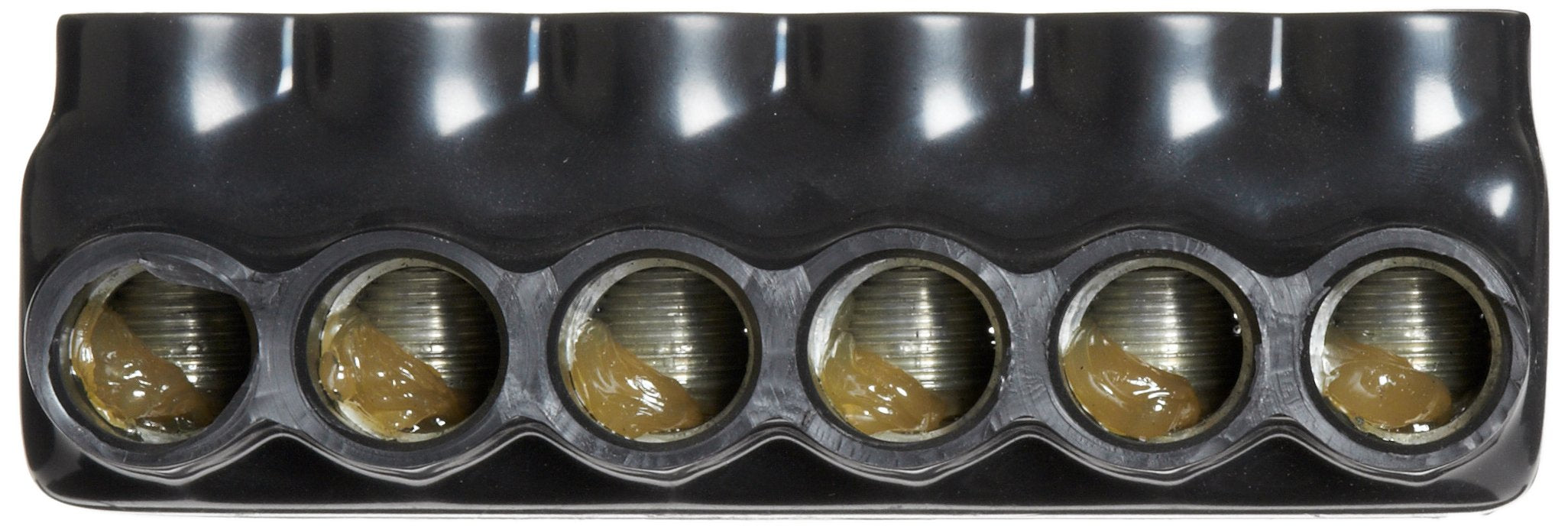

• Pre-filled with oxide inhibitor for enhanced performance.

Product Highlights

This connector offers dual entry for flexible wiring, is insulated for safety, and includes an oxide inhibitor for reliable connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97656

Technical Specifications

• Product Type: Electronic Component Terminal
• Manufacturer: Morris Products
• Brand: Morris Products
• MPN: 97656
• Wire Ports: 6
• Temperature Range: -49°F to 194°F (-45°C to 90°C)
• Voltage Rating: 600 Volt
• Certifications: ANSI C119.4, cULus 486b, UL Listed
• Material: CU9AL Dual Rated 6061-T6 Aluminum
• Wire Compatibility: Copper and/or Aluminum
• Terminal Configuration: One Wire per Terminal
• Entry Type: Dual Entry
• Wire Range: 350-6
• UPC: 601986976565
• Color: Black
• Insulation Type: Rubber
• SKU: Morris-97656
• Allen Hex Size: 5/16 in.
