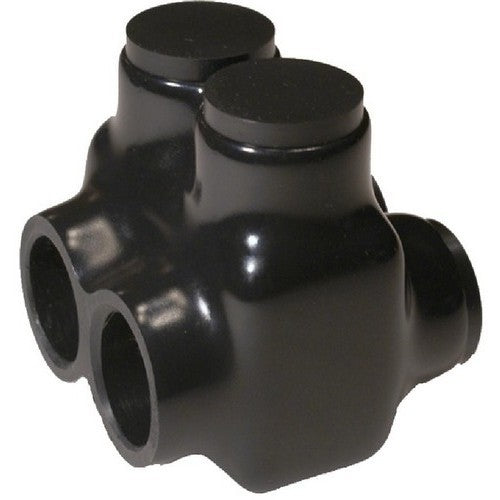

Morris Products 97121 500-2 Black Insulated Connector Dual

Product Description

The Morris Products 97121 500-2 Black Insulated Connector Dual Entry Splice features 2 conductor ports for low cost installations. Constructed from 6061-T6 aluminum, it is CU9AL dual rated for use with copper or aluminum wires. Pre-filled with oxide inhibitor, it allows for easy re-entry for changes, inspections, or troubleshooting.

• Optional wire entry from either side
• Rugged high-dielectric rubber/vinyl coating
• Temperature range of -49 to 194 Degrees F (-45 to 90 Degrees C)

Product Highlights

Dual entry insulated connector with a rugged coating and wide temperature range. Ideal for electrical splices and connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97121

Technical Specifications

• Material: Aluminum, Rubber
• Connector Type: Dual Entry
• Insulation Type: Rubber
• Maximum Voltage: 600
• Temperature Rating: -49 to 194 Degrees F (-45 to 90 Degrees C)
• Wire Range: 500-6
• Number of Ports: 2
• UL Listed: Yes
• Brand: Morris Products
• Part Number: 97121
