Morris Products 93216 Aluminum Compression Splice 1 Awg

Product Description

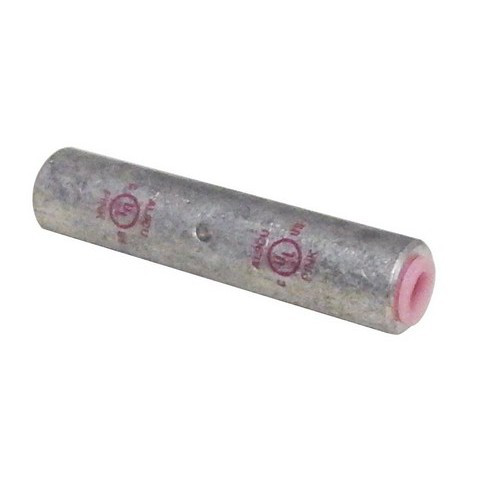

The MORRIS PRODUCTS 93216 is an aluminum long barrel compression splice rated for 1 AWG conductors. It provides a reliable mechanical and electrical connection by joining two conductors end-to-end within a single barrel housing. The long barrel design increases the contact surface area, which improves conductivity and pull-out resistance compared to standard-length splices. This splice is dual rated, meaning it is listed for use with both copper and aluminum conductors. Electricians install these splices during service entrance work, feeder runs, and branch circuit extensions where a permanent, low-resistance splice joint is required.

This compression splice is suited for residential and light commercial electrical installations where 1 AWG copper or aluminum conductors need to be joined. It is a common choice in panelboard feeder work, underground service entry, and conduit runs where a compact, code-compliant splice point is needed. The dual-rated construction eliminates the need to stock separate copper-only and aluminum-only splices, simplifying inventory on service calls.

Key Features

• Long barrel design increases contact area for improved conductivity and mechanical strength
• Dual rated for use with both copper and aluminum conductors
• Rated for 1 AWG wire size
• Aluminum construction keeps weight low and resists galvanic issues when paired with aluminum conductors
• Compression-style installation creates a permanent, vibration-resistant connection

Compatibility

Designed as an OEM-style compression splice for 1 AWG copper or aluminum conductors in residential and commercial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the circuit at the panel before beginning any splice work. Use the correct compression tool and die set specified for the barrel diameter and conductor size to ensure a full, uniform crimp. Do not attempt to re-crimp or reuse a barrel that has already been compressed.

Technical Specifications

• Wire Size: 1 AWG
• Material: Aluminum
• Conductor Compatibility: Copper and Aluminum (Dual Rated)
• Splice Type: Long Barrel Compression

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93216
