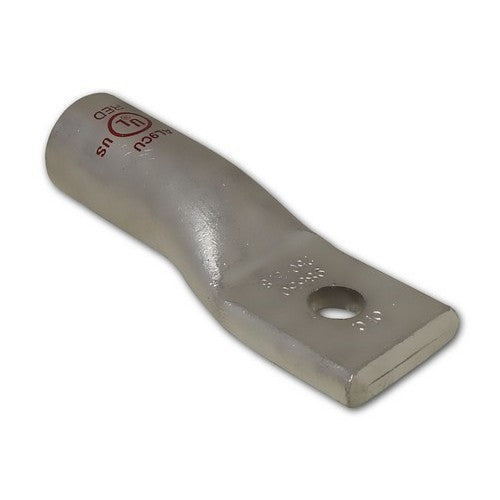

Morris Products 93030 aluminum long barrel 1 hole compression lugs 1 awg - 5/16 inches stud

Product Description

The Morris Products 93030 is an aluminum long barrel 1 hole compression lug designed for secure electrical connections. This lug is constructed from high-conductivity seamless aluminum and is dual-rated AL9CU, accepting both copper and aluminum conductors. It features a 1 Awg wire range, a 5/16 inch stud size, and is rated for up to 35KV when properly installed. The barrel is coated with an oxide inhibitor and capped for enhanced durability.

• One Hole Aluminum Compression Lugs are AL9CU Dual Rated and accept both Aluminum and Copper Conductors
• Connector Barrel is Coated with Oxide Inhibitor & capped
• Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity

Product Highlights

High-conductivity seamless aluminum lug with electro-tin plating for corrosion resistance and maximum conductivity, suitable for copper or aluminum cables.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 93030

Technical Specifications

• Brand: Morris Products
• MPN: 93030
• Material: High-Conductivity Seamless Aluminum
• Connector Type: Aluminum Compression Lugs
• Product Type: Aluminum Long Barrel 1 Hole Compression Lugs
• Voltage Rating: 35KV (when properly installed)
• Conductor Size: 1 Awg
• Certifications: UL486B Listed AL9CU, cULus Listed
• UPC: 601986930307
• SKU: Morris-93030
• Barrel Type: Long Barrel
• Holes: 1 Hole
• Lug Type: Compression Lug
• Stud Size: 5/16 inch
• Cable Compatibility: Copper or Aluminum Cables
• Dual Rated: AL9CU
• Barrel Coating: Oxide Inhibitor
• Barrel Feature: Capped
• Plating: Uniform Bright Electro-Tin
• Identification: Color Coded
• Markings: Die Index, Crimp Marks
