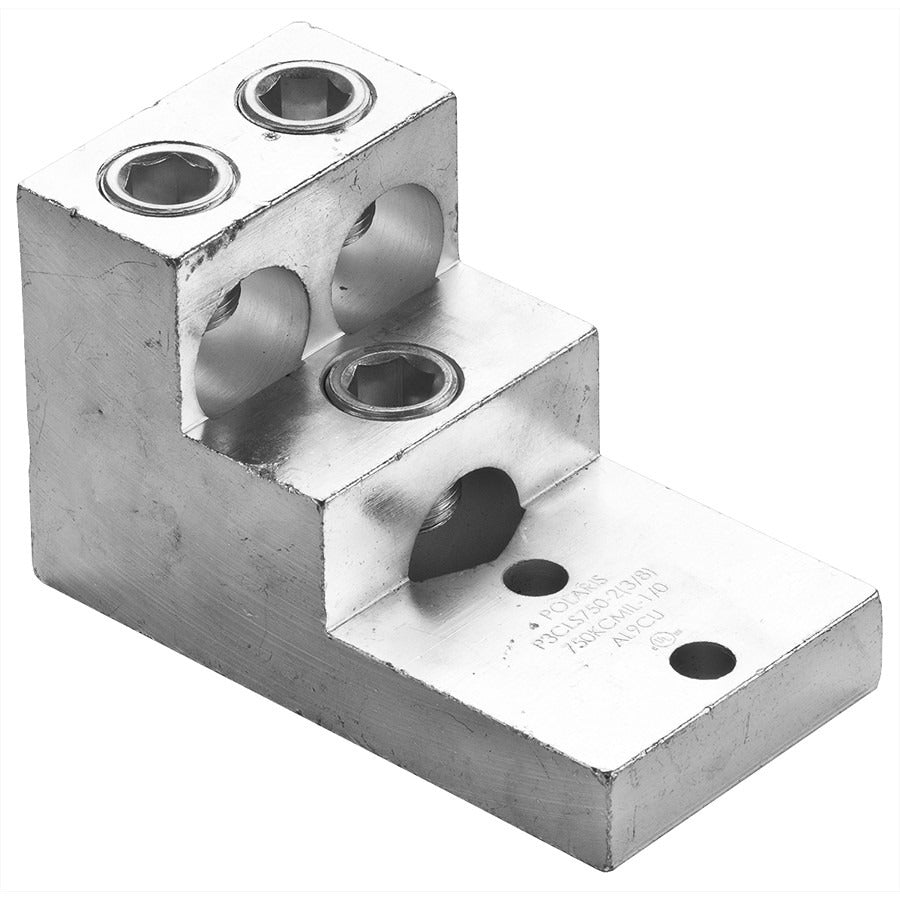

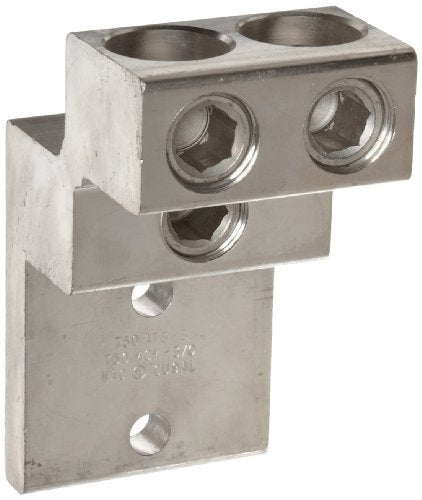

Morris Products 90920 Mechanical Panelboard Lug 600 V (750MCM-3/0STR)

Product Description

Morris Products 90920 is a mechanical panelboard lug designed for three conductors, manufactured for heavy-gauge terminations and panelboard connections. It accepts wire sizes from 750 MCM down to 3/0 stranded and is constructed of aluminum with electro-tin plating. The lug is dual rated AL9CU for copper and aluminum conductors, rated 600 V and 194°F (90°C), and is UL486B and CSA listed for panelboard use.

• Three-conductor 6061-T6 aluminum mechanical lug with electro-tin finish; wire range 750 MCM to 3/0 stranded
• Electrical ratings: 600 V, 194°F (90°C); dual rated AL9CU for copper and aluminum; UL486B and CSA listed
• Reusable assembly with screwdriver or Allen wrench; NEMA drilling centers 1-3/8" for panelboard mounting

Product Highlights

Three-conductor aluminum panelboard lug, 600 V, 750 MCM–3/0STR, electro-tin plated, AL9CU dual rated, UL486B/CSA listed

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 90920
• Country of Origin: USA
